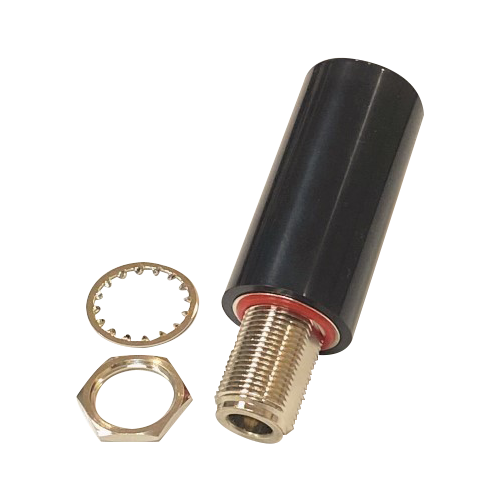

1. GENERAL DESCRIPTION
| Model No |
P/N |
| TH-85F |
TH85F-N(F) |
Below is a table summarizing the antenna design specification.
1.1 Electrical Properties
| Parameter |
Description |
| Frequency Band |
1550-1630MHz |
| Nominal Impedance |
50 ohm |
| Polarization |
Vertical |
| Electrical Wave |
1 /4λ |
| Admitted Power radiation |
5W |

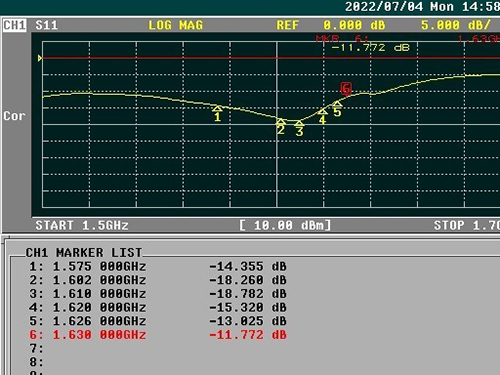

| V.S.W.R |
2.0:1 |

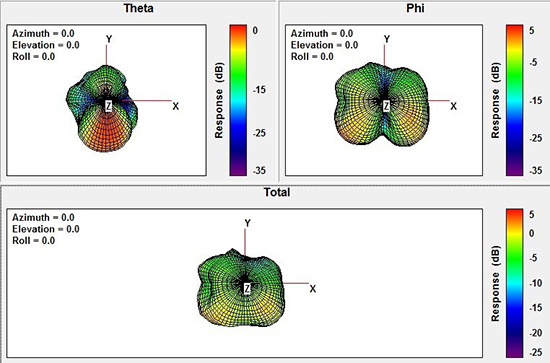

| Antenna Gain |
2-4 dB |
| Note: Gain includes the cable loss |
1.2 Mechanical Properties
| Parameter |
Description |
| Antenna Type |
External Antenna |
| Material |
ABS |
| Touch Type |
Screw Type |
| Connector Type |
N(F) |
| Antenna Dimensions |
OD 25x 77.6mm±0.5 |
| Antenna Color |
Black |
| Operating Temperature Range |
-40°C~+80°C |
| Storage Temperature Range |
-40°C~+80°C |
| Waterproof |
IPX7 |
| Weight |
55g |
