1.GENERAL DESCRIPTION
| Model No |
P/N |
| TH-9024C |
TH9024C-SMA(M) |
Below is a table summarizing the antenna design specification.
1.1 Electrical Properties
| Parameter |
Description |
| Frequency Band |
902~928 MHz & 2.4~2.5Ghz |
| Nominal Impedance |
50 ohm |
| Polarization |
Vertical |

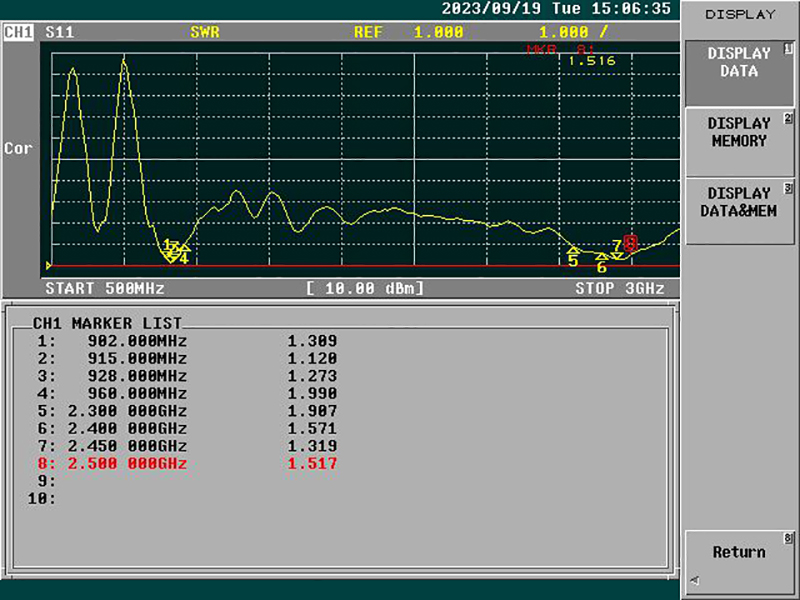

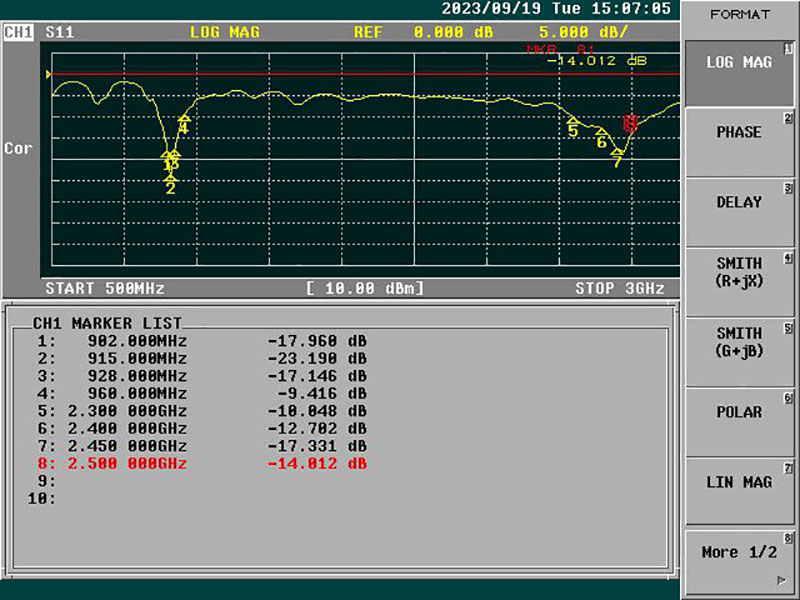

| V.S.W.R |
2.0:1 |
| Peak Gain |
Low Band :2dbi & High Band :3dbi |
| Power |
30W |

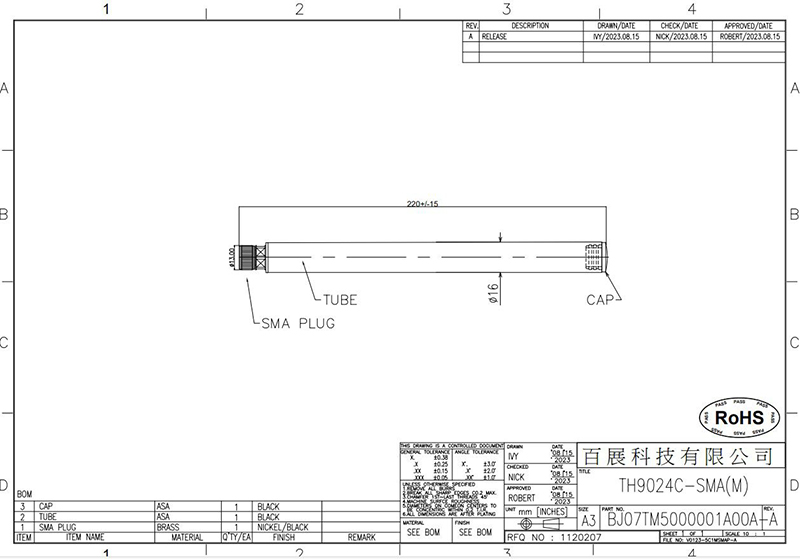

1.2 Mechanical Properties
| Parameter |
Description |
| Antenna Type |
External Antenna |
| Touch Type |
Screw Type |
| Connector Type |
SMA(Male) |
| Antenna Dimensions |
220mm ±15 |
| Antenna Color |
Black |
| weight |
70g |
| Operating Temperature Range |
-40°C~+85°C |
| Storage Temperature Range |
-40°C~+85°C |
| water proof |
IP67 |

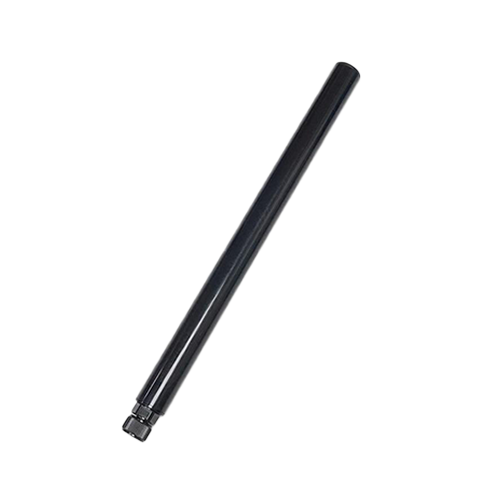

Our TH-9024C Passive Antenna is suitable for all types of 900 & 2.4Ghz communication transmission equipment. It can be applied for short-distance and long-distance communication services with dual-band radio positioning, industrial, scientific, medical, interference, and other technical applications…etc. The ASA has strong weather resistance and its anti-aging performance is more than 10 times that of ABS. Please don’t hesitate to email us if you have any questions.
