TH900T
  • Product Description
  • Product Specification

FOR RFID UHF & ISM & ZigBee


1.GENERAL DESCRIPTION

P/N
TH900T-SMA(F)


1.1 Electrical Properties

Parameter Description
Frequency Band 868/902~928MHz (ON Customer Radio)
Nominal Impedance 50 ohm
Polarization Vertical

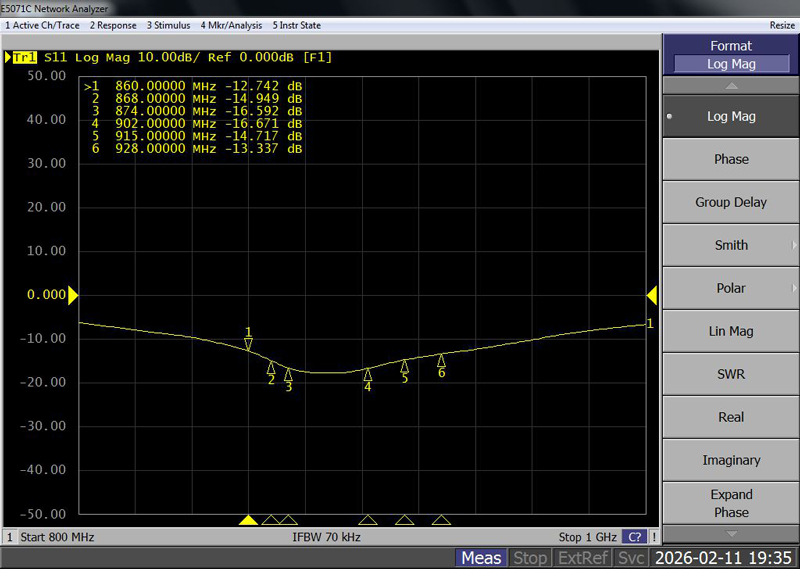

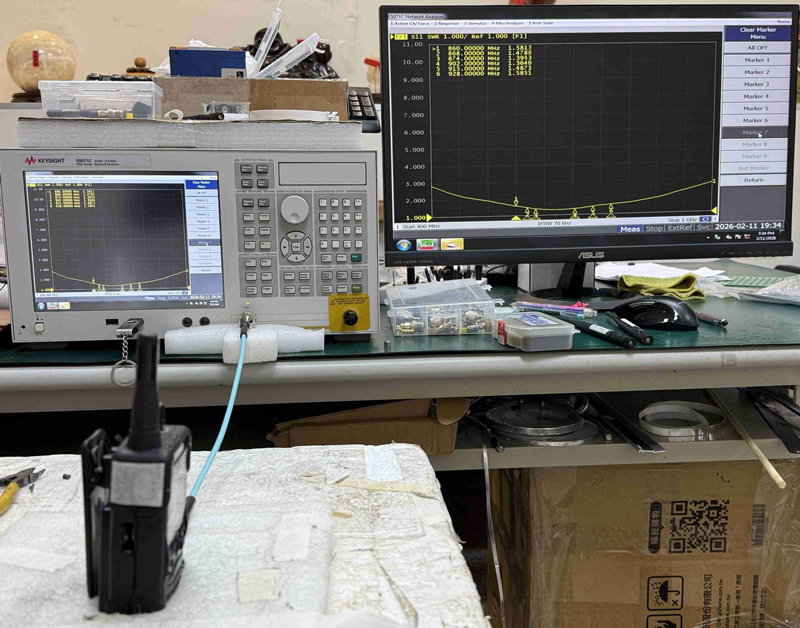

Return Loss Please See Data-1
V.S.W.R 2.0:1


1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Touch Type Screw Type
Connector Type SMA (Male)
Antenna Dimensions OD13.5 x56.8mm±2
Antenna tube & Color TPU - Black
Operating Temperature Range -40°C~+80°C
Storage Temperature Range -40°C~+80°C
Waterproof IPX7

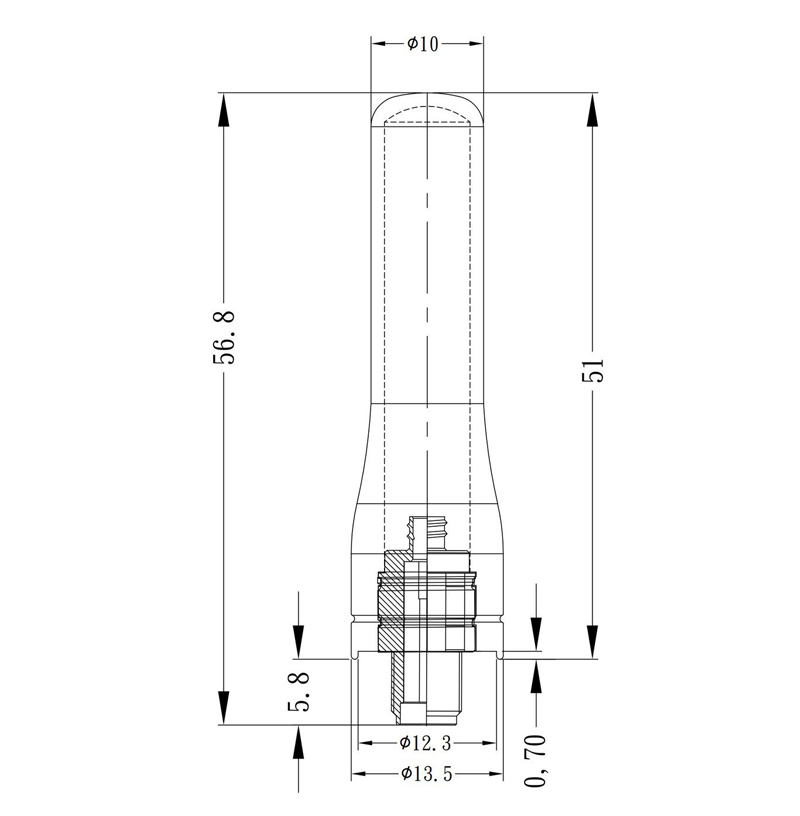

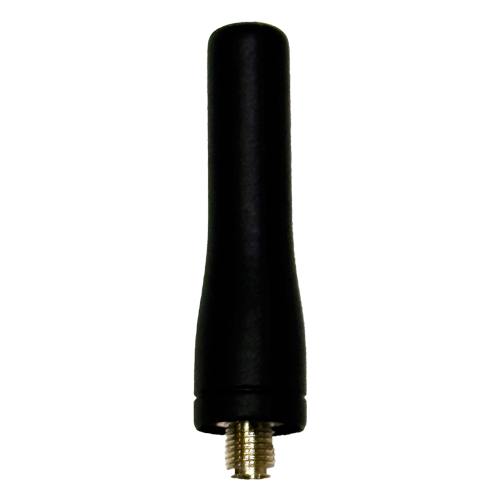

2. Appearance

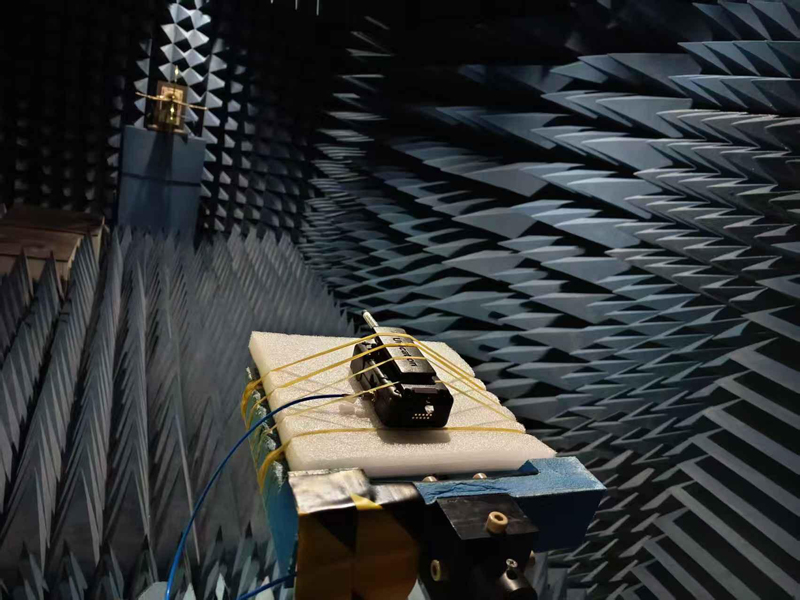

3. FREQUENCY





3D Total

Frequency
(MHz)		 Upper Hem.
PRP (dBm)		 Lower HEM.
PRP (dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain (dBi) Tot. Rad.Pwr.
(dBm)
824 MHz -6.99 -6.20 -3.57 43.99 1.92 -3.57
850 MHz -7.82 -5.95 -3.77 41.94 1.63 -3.77
868 MHz -8.23 -5.55 -3.68 42.87 2.20 -3.68
875 MHz -8.81 -5.91 -4.11 38.82 1.93 -4.11
902 MHz -8.57 -5.06 -3.46 45.06 3.59 -3.46
915 MHz -9.22 -5.42 -3.91 40.66 2.41 -3.91
928 MHz -9.25 -5.41 -3.91 40.68 1.97 -3.91
930 MHz -9.40 -5.57 -4.06 39.24 1.58 -4.06
960 MHz -9.95 -6.10 -4.60 34.65 0.49 -4.60

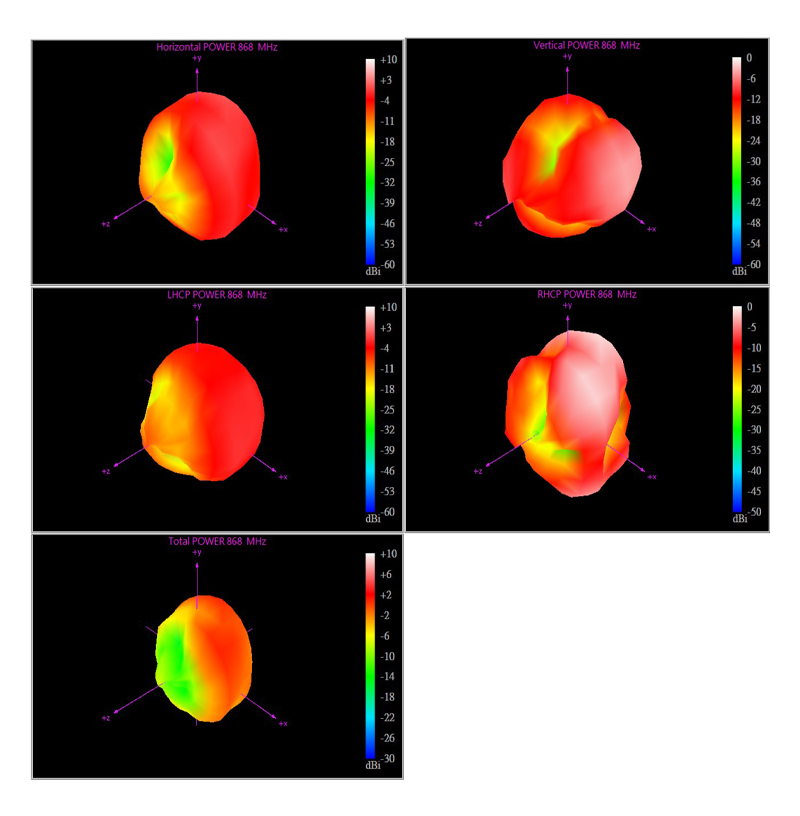

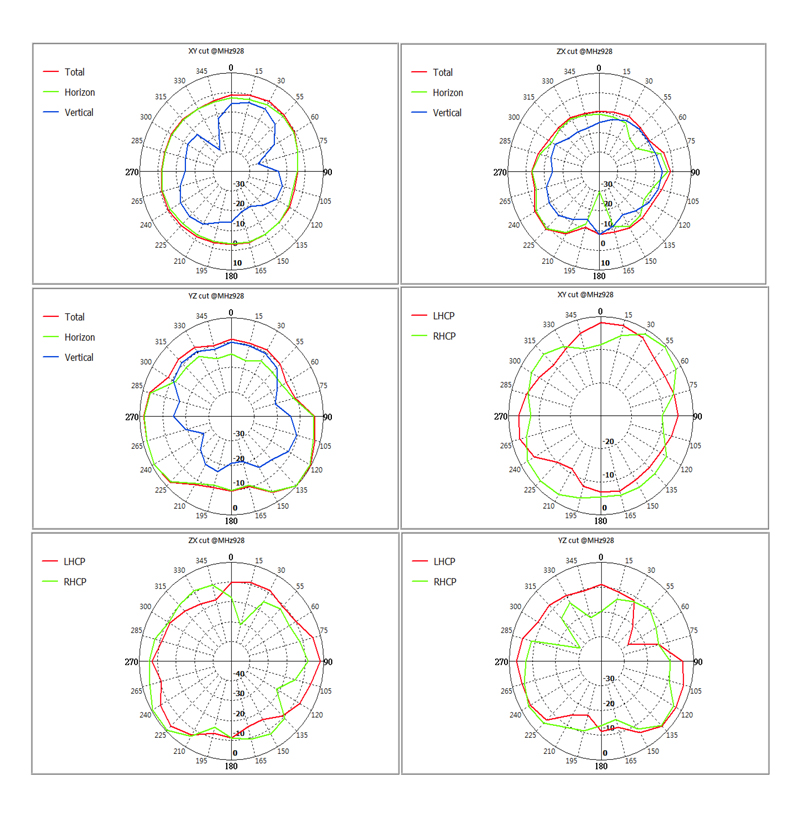

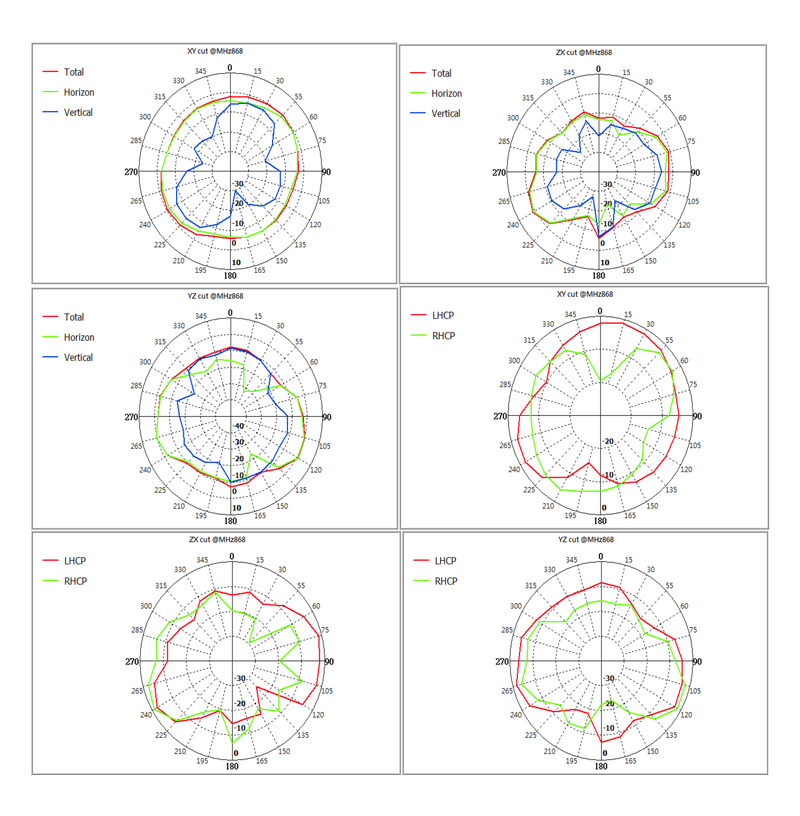

868Mhz:

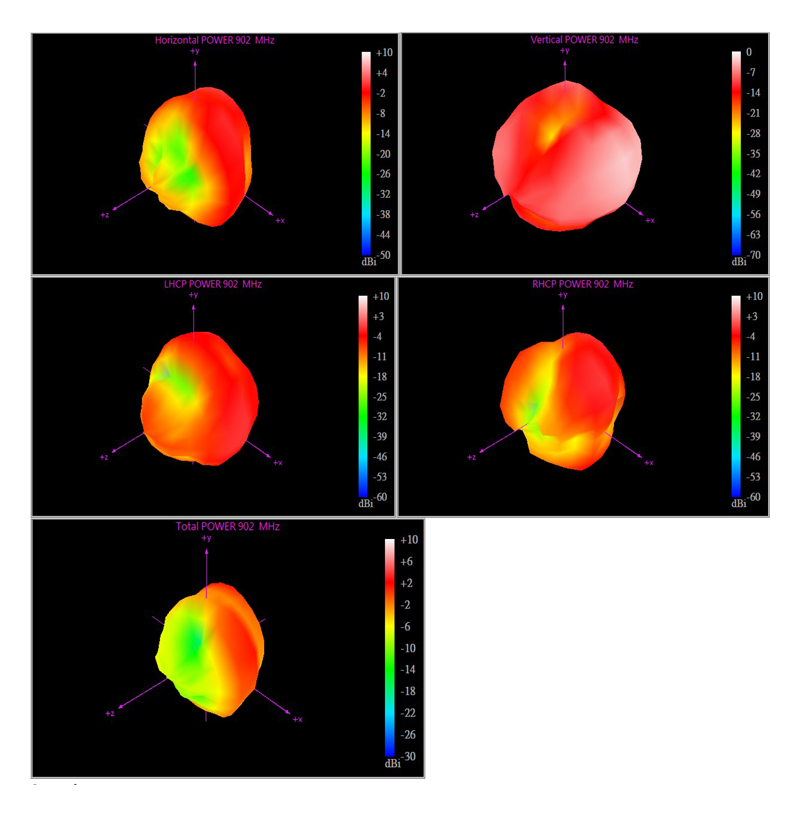

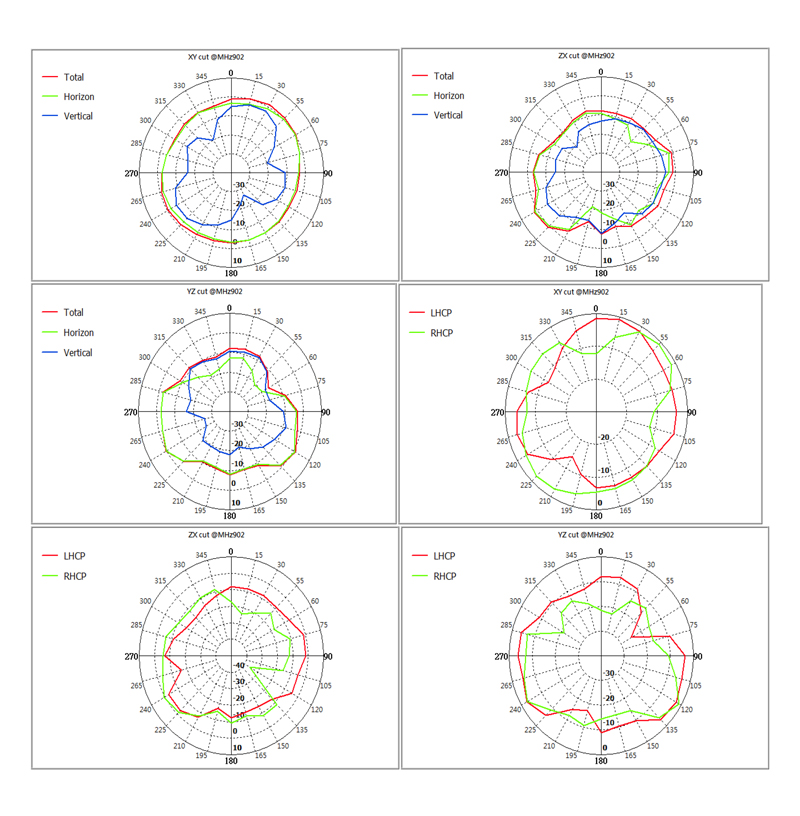

902Mhz:

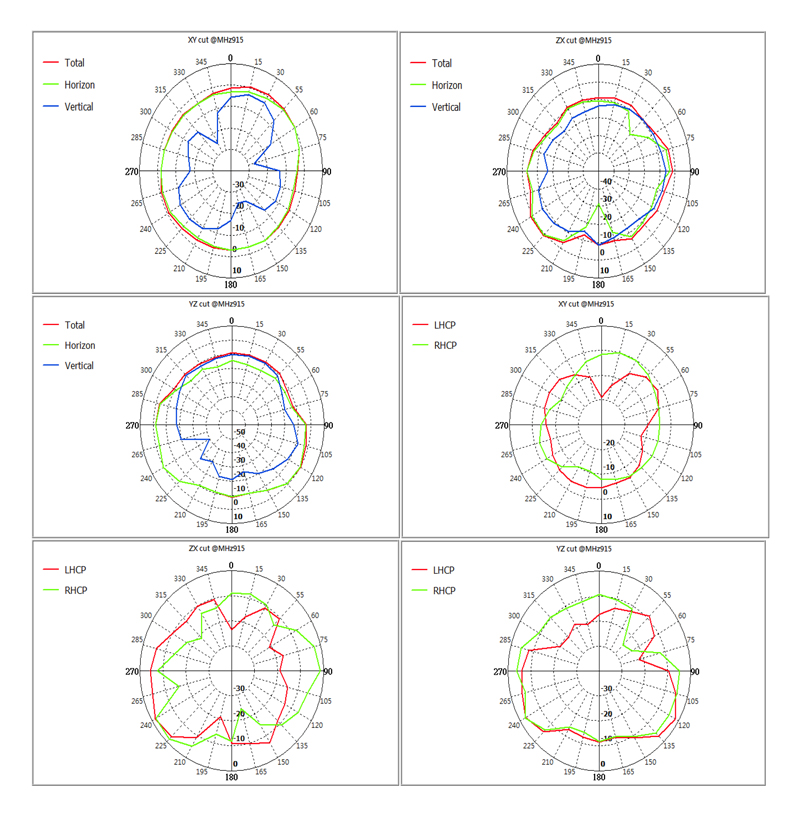

915Mhz:

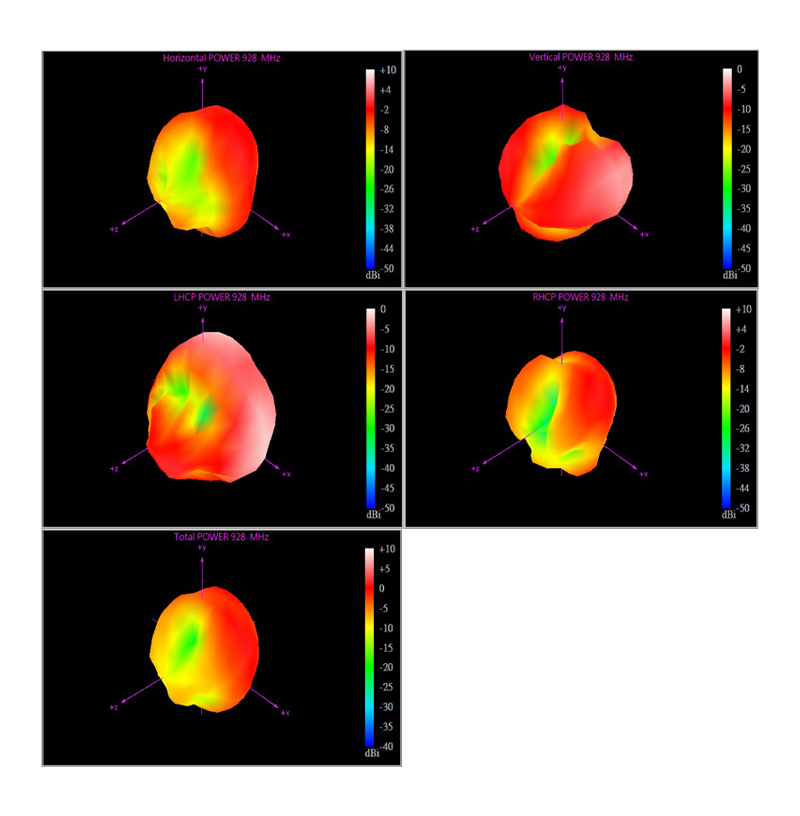

928Mhz:
