1.GENERAL DESCRIPTION

P/N
TH900Q-SMA(F)


1.1 Electrical Properties

Parameter Description
Frequency Band 860~930MHz
Nominal Impedance 50 ohm
Polarization Vertical

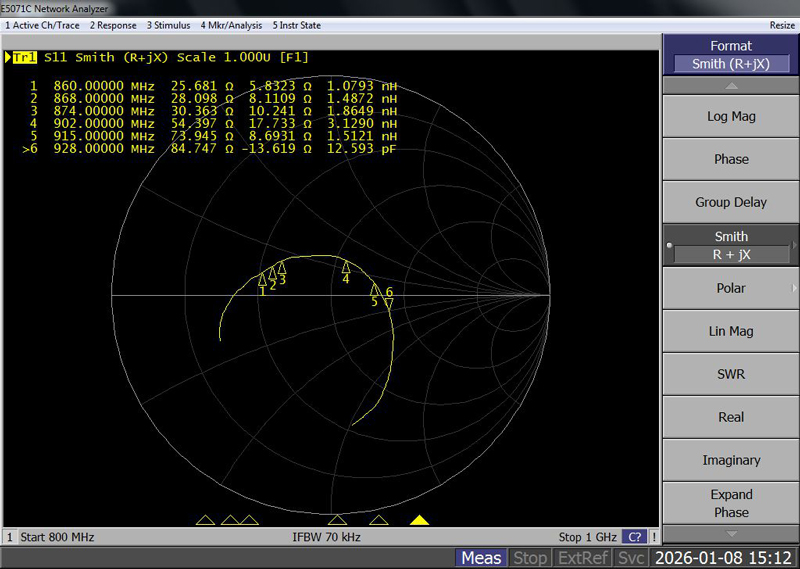

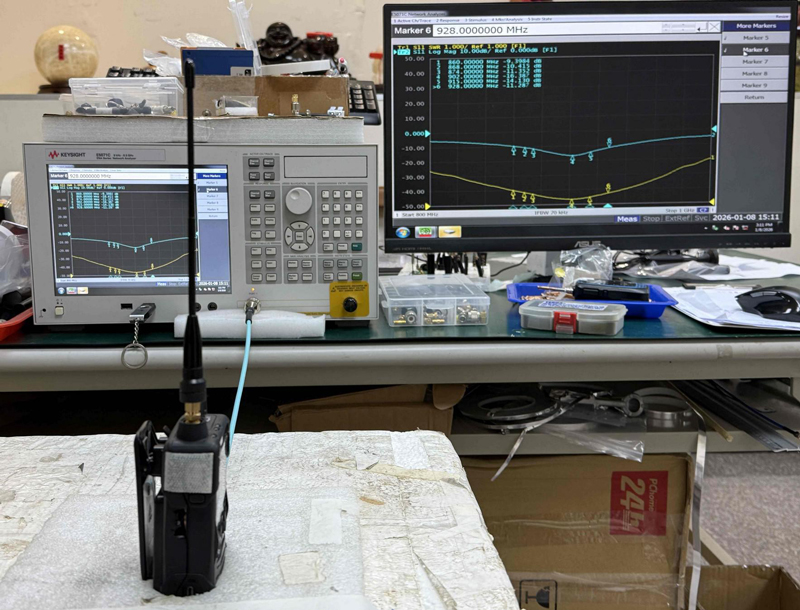

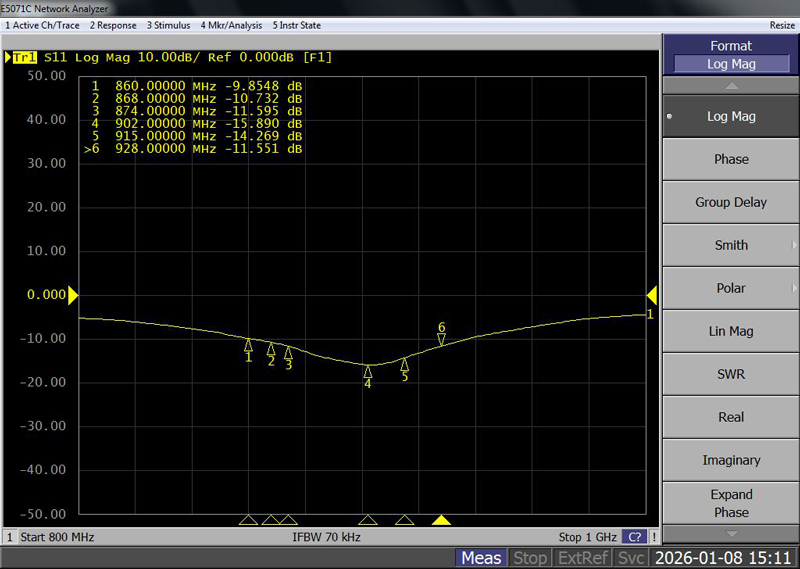

Return Loss Please See Data-1

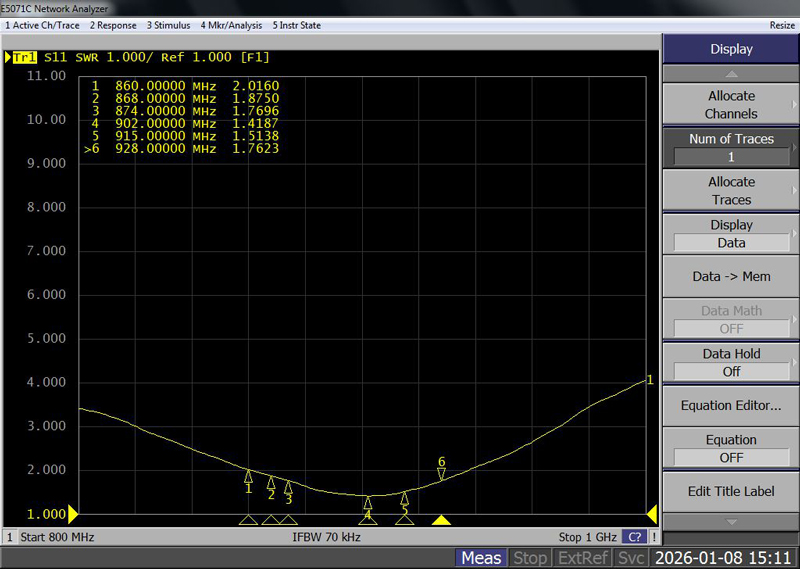

V.S.W.R 2.0:1


1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Touch Type Screw Type
Connector Type SMA (Female)
Antenna Dimensions OD14.1 x182mm±2
Color Black
Operating Temperature Range -30°C~+70°C
Storage Temperature Range -30°C~+70°C
Waterproof IPX6

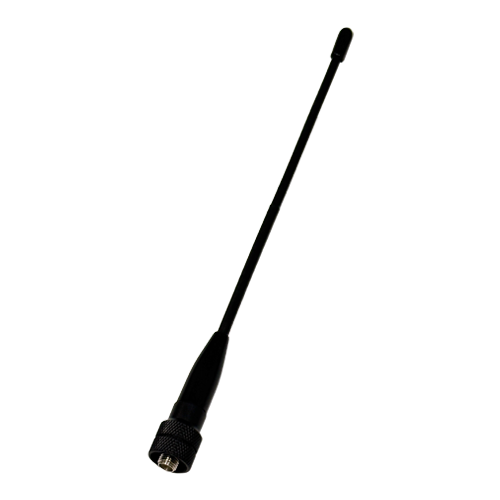

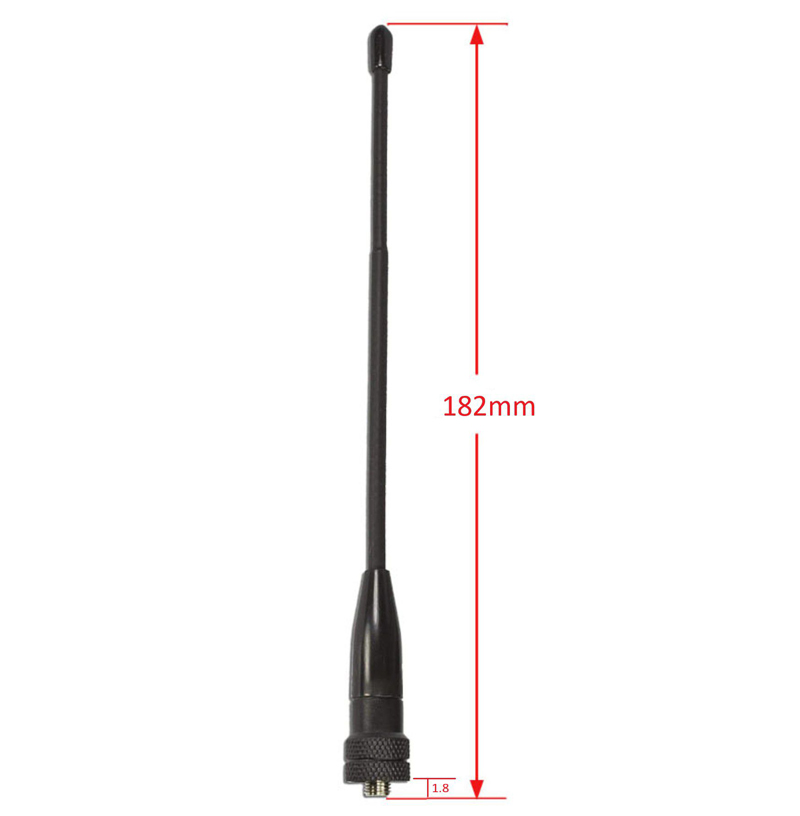

2.Appearance

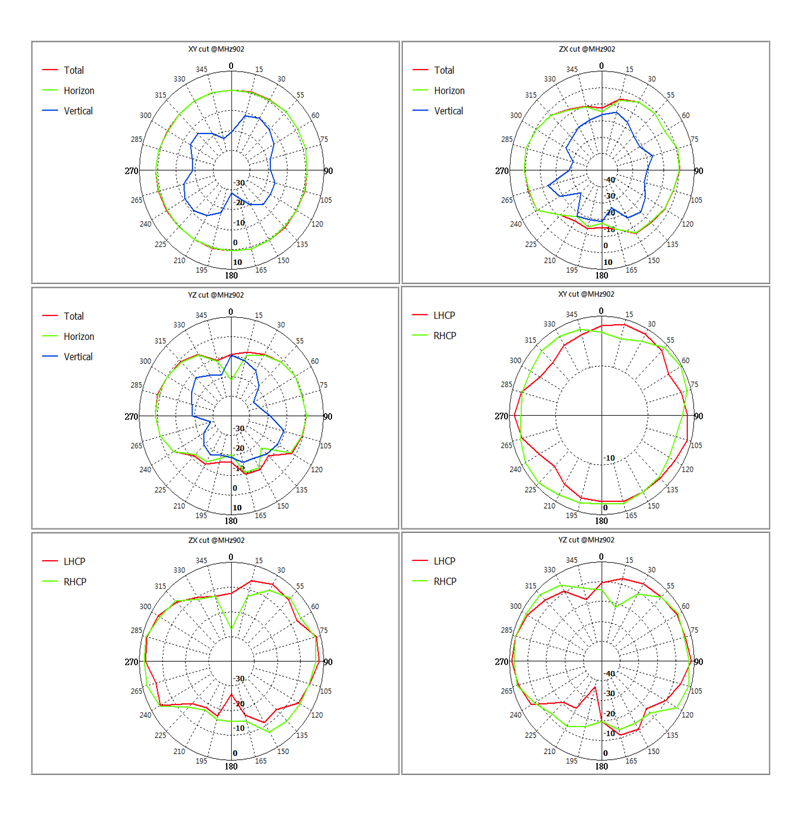

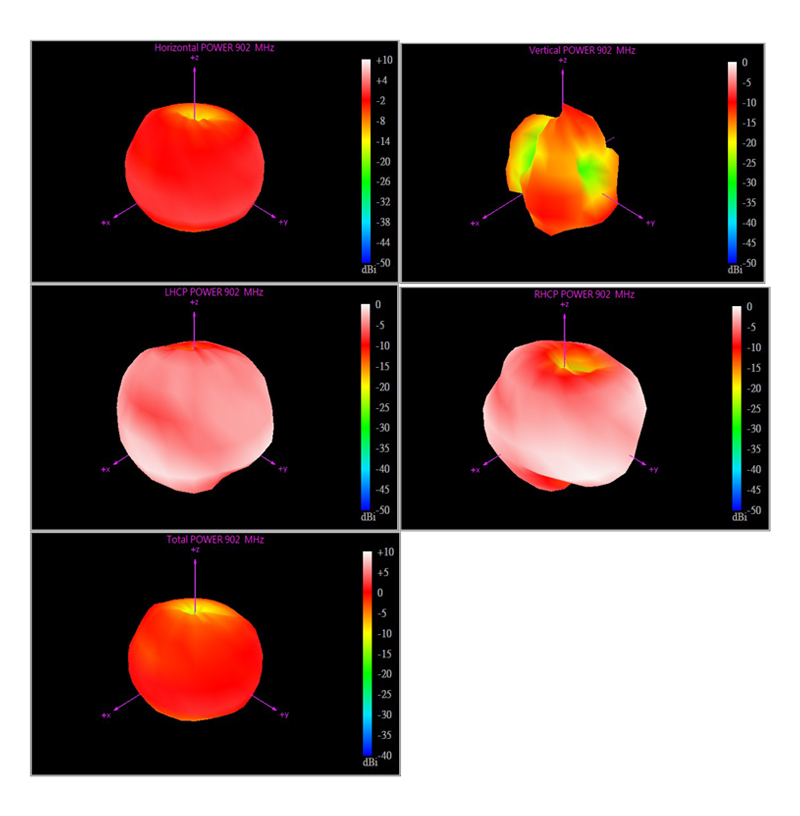

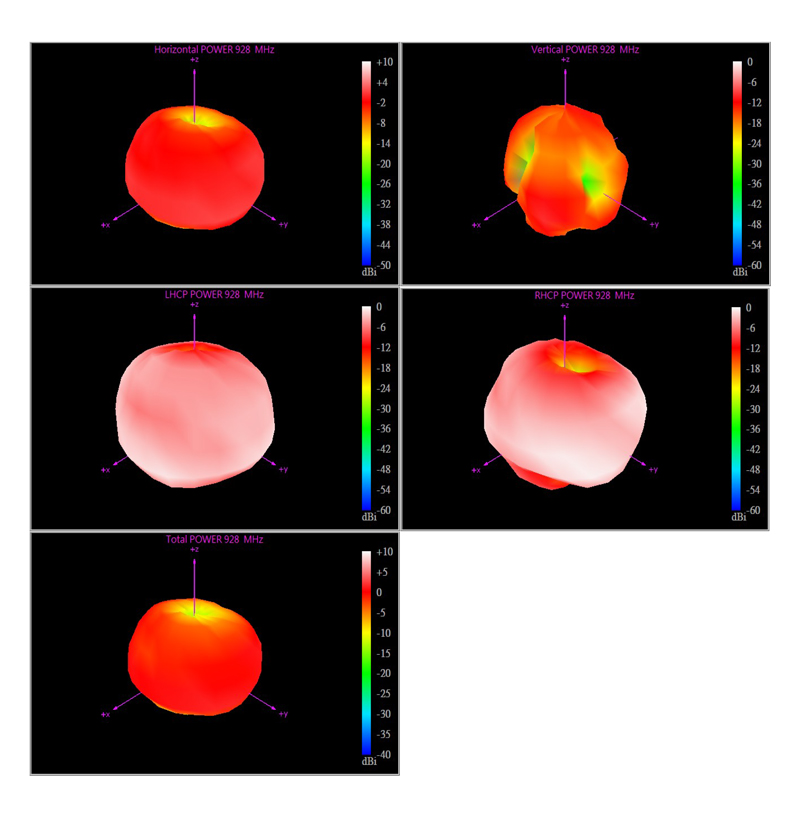

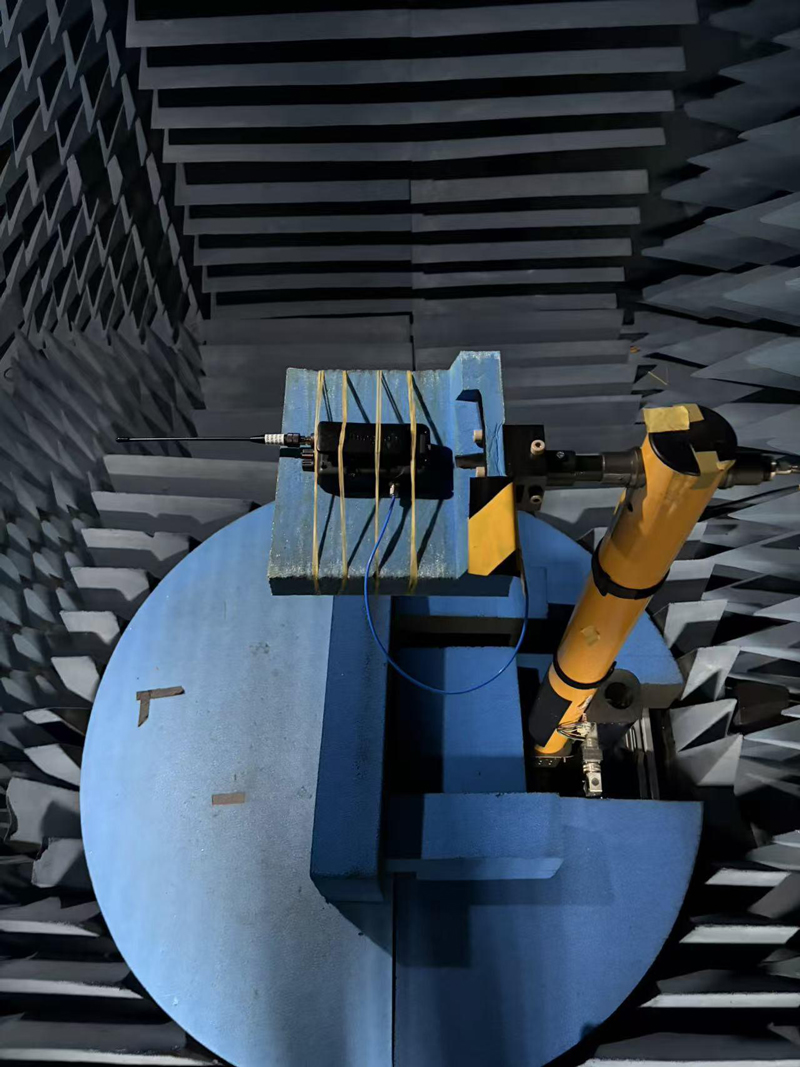

3.FREQUENCY





3D Total

Frequency
(MHz)		 Upper Hem.
PRP (dBm)		 Lower HEM.
PRP (dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain (dBi) Tot. Rad.Pwr.
(dBm)
850 MHz -7.16 -6.10 -3.59 43.79 0.85 -3.59
860 MHz -6.30 -5.59 -2.92 51.07 1.43 -2.92
868 MHz -6.24 -5.94 -3.08 49.25 1.10 -3.08
874 MHz -6.18 -6.30 -3.23 47.55 0.58 -3.23
902 MHz -4.02 -5.93 -1.86 65.20 1.83 -1.86
915 MHz -3.90 -6.52 -2.00 63.07 1.81 -2.00
928 MHz -4.08 -7.12 -2.33 58.51 1.62 -2.33
930 MHz -4.23 -7.37 -2.51 56.13 1.59 -2.51
960 MHz -5.65 -8.94 -3.98 40.02 0.51 -3.98

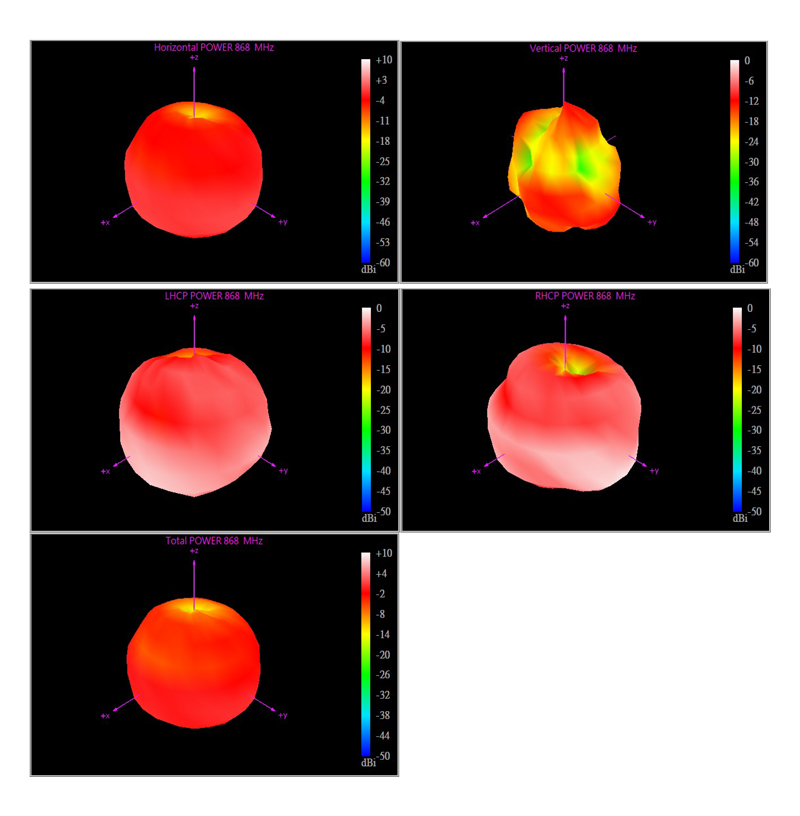

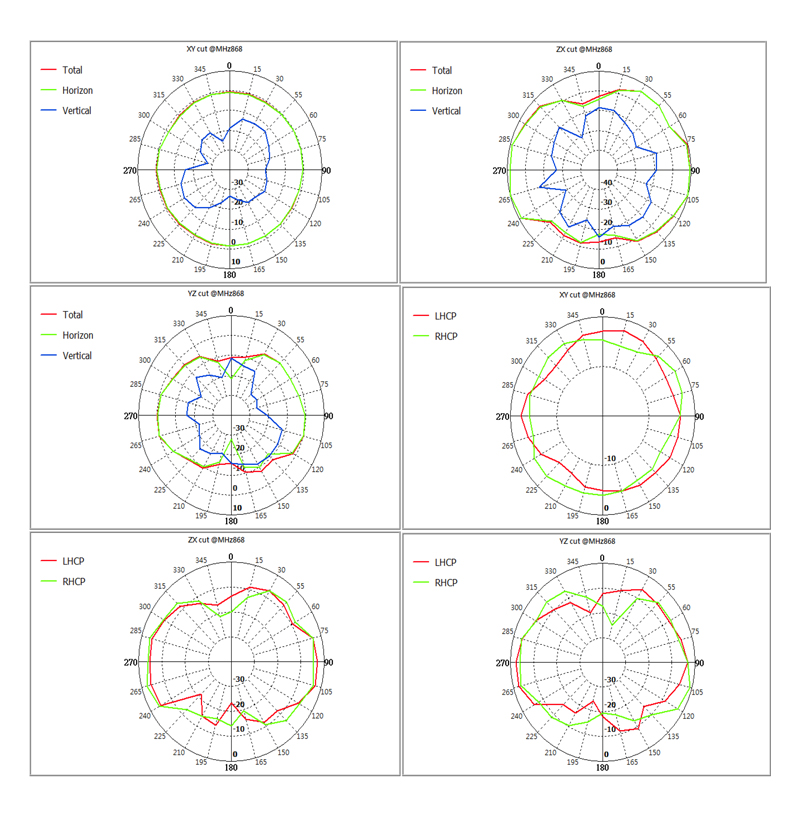

868Mhz:


902Mhz:


915Mhz:


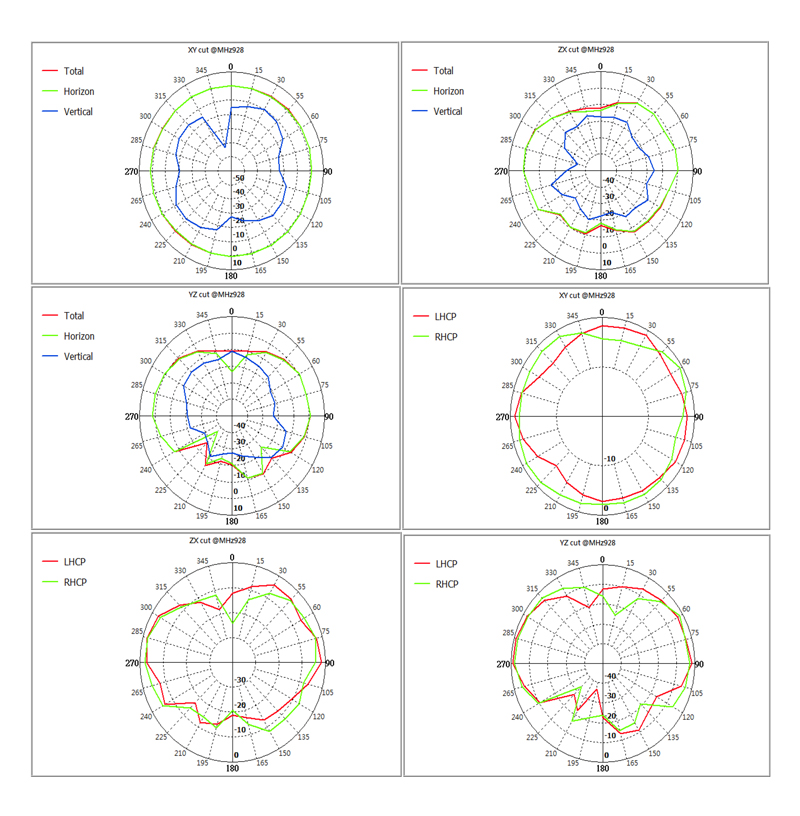

928Mhz:
