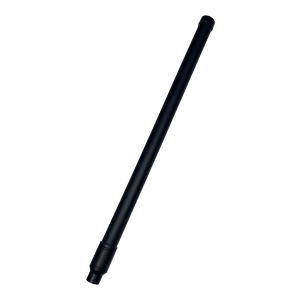

TH-1200

TH-1200

Inquiry

Download

TH-1200
  • Product Description
  • Product Specification
Frequency range: 1100~1300Mhz
Gain: 5dBi
V.S.W.R: 2.0
Impedence: 50 ohm
Connector: N Type male
Dimension: 605mm +/-10 x OD36mm
Weight: 0.32Kg
Polarization : vertical
Power handling : 100W
Materials : Fiberglass & copper
Colour : Black
Rated wind velocity : 60m/s
Working Temperature : -40~60℃
Lightning Protection : Direct Ground

＊This specification is subject to change without prior notice

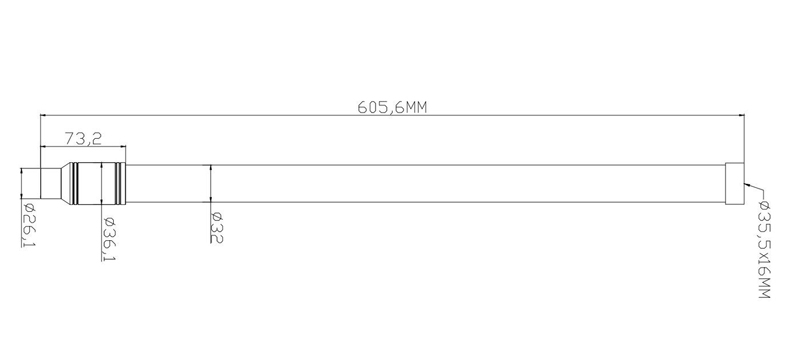

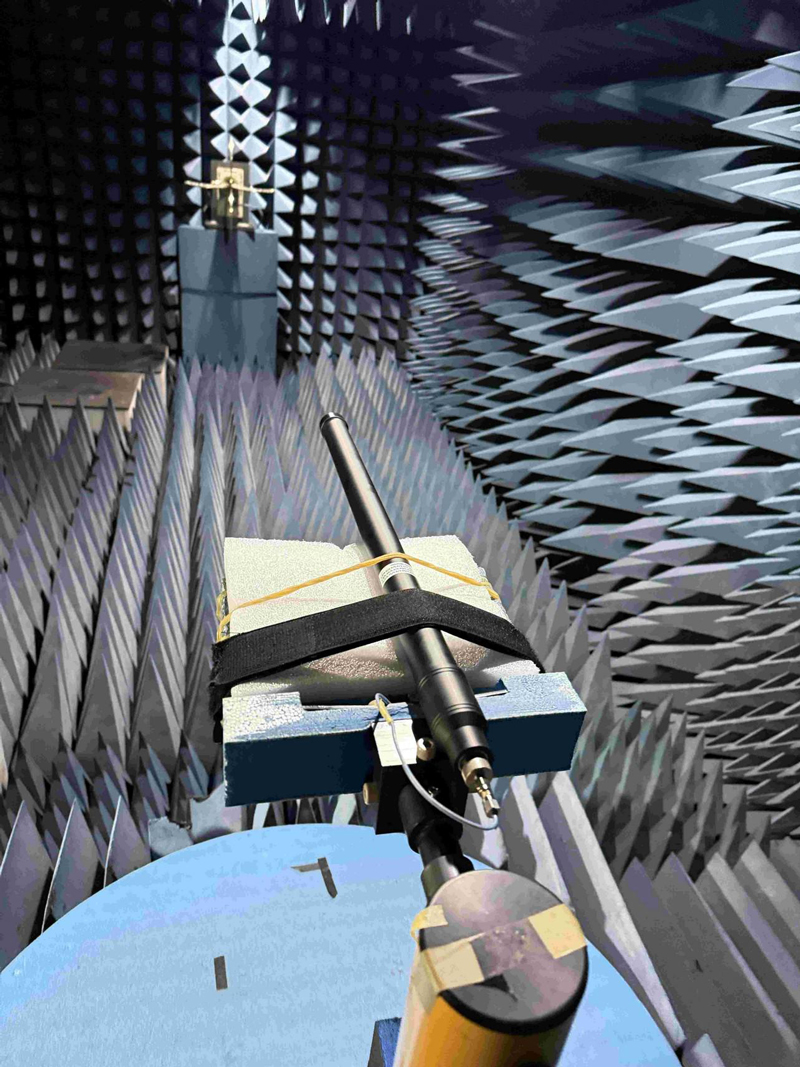

2. APPEARANCE:

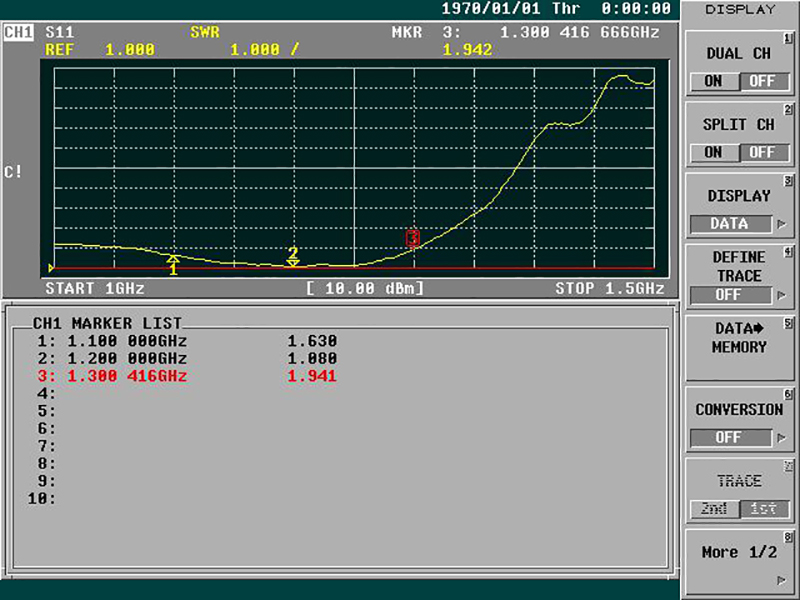

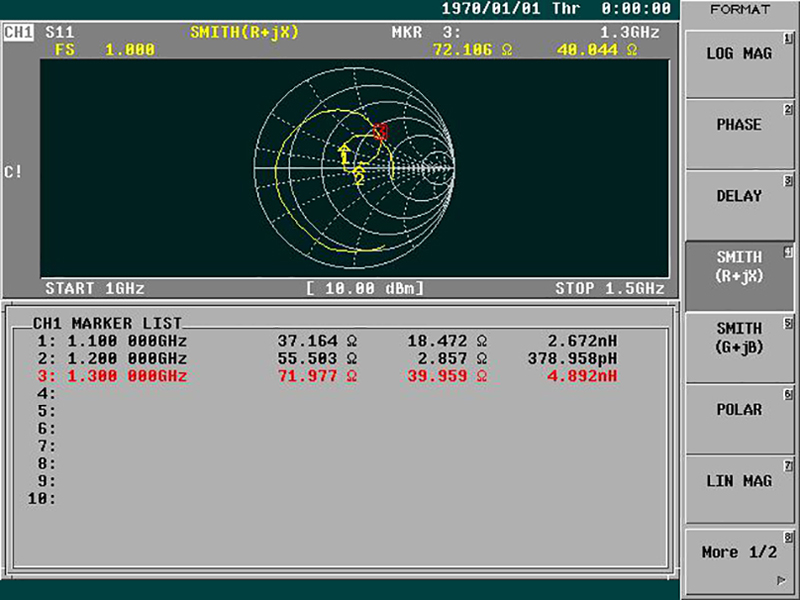

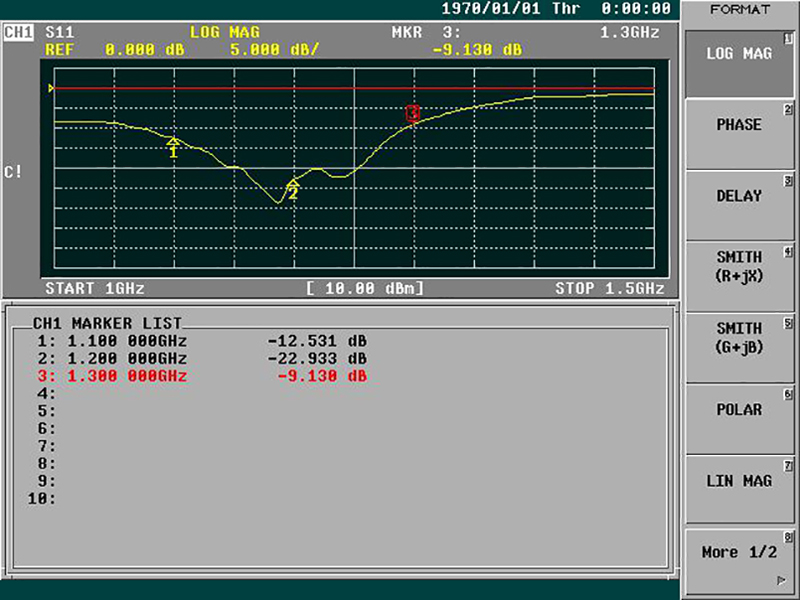

3. FREQUENCY:

3D Total

Frequency
(MHz)		 Upper Hem.PRP
(dBm)		 Lower HEM.PRP
(dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain
(dBi)		 Tot. Rad.Pwr.
(dBm)
1050 MHz -3.41 -5.93 -1.48 71.17 2.35 -1.48
1090 MHz -3.47 -4.57 -0.97 79.90 1.52 -0.97
1100 MHz -3.82 -4.69 -1.22 75.45 1.14 -1.22
1150 MHz -3.06 -4.65 -0.77 83.74 2.34 -0.77
1200 MHz -3.69 -5.14 -1.35 73.32 3.24 -1.35
1250 MHz -4.18 -3.00 -0.54 88.33 4.61 -0.54
1300 MHz -4.47 -3.65 -1.03 78.90 4.14 -1.03

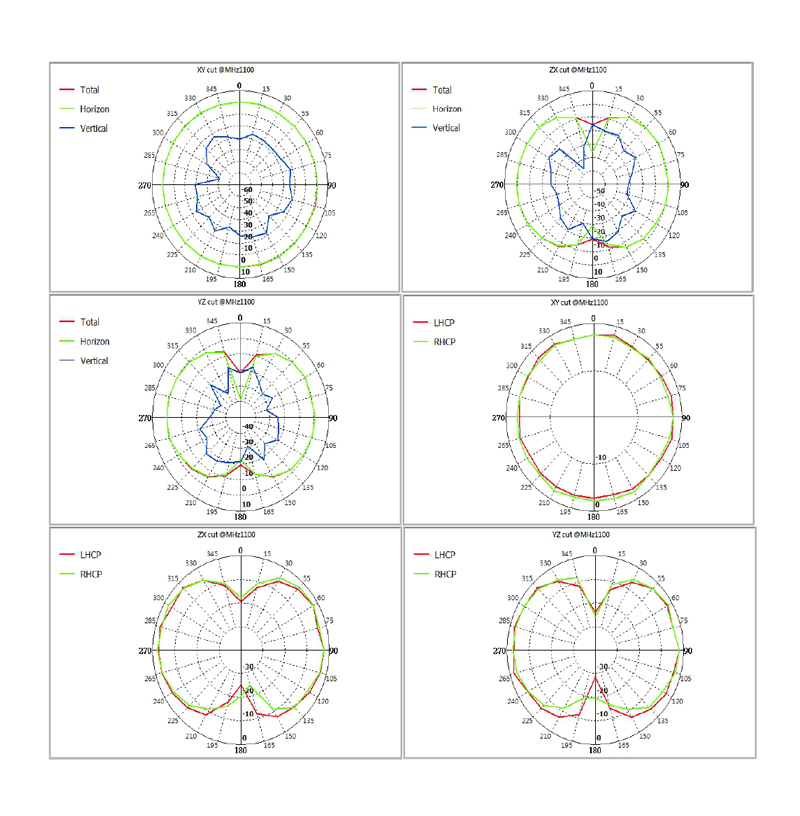

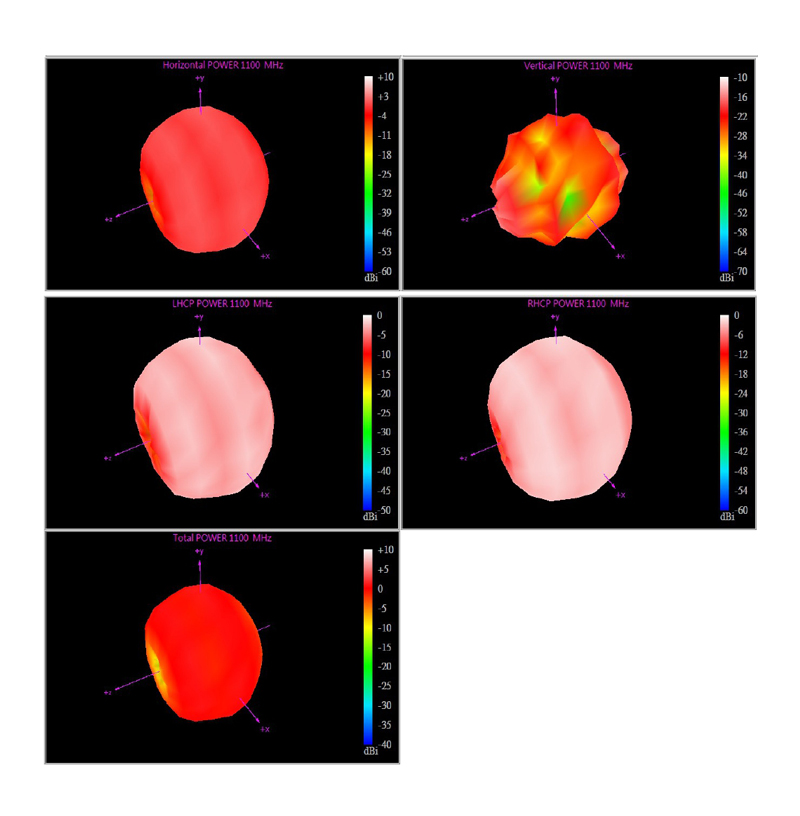

1100Mhz:

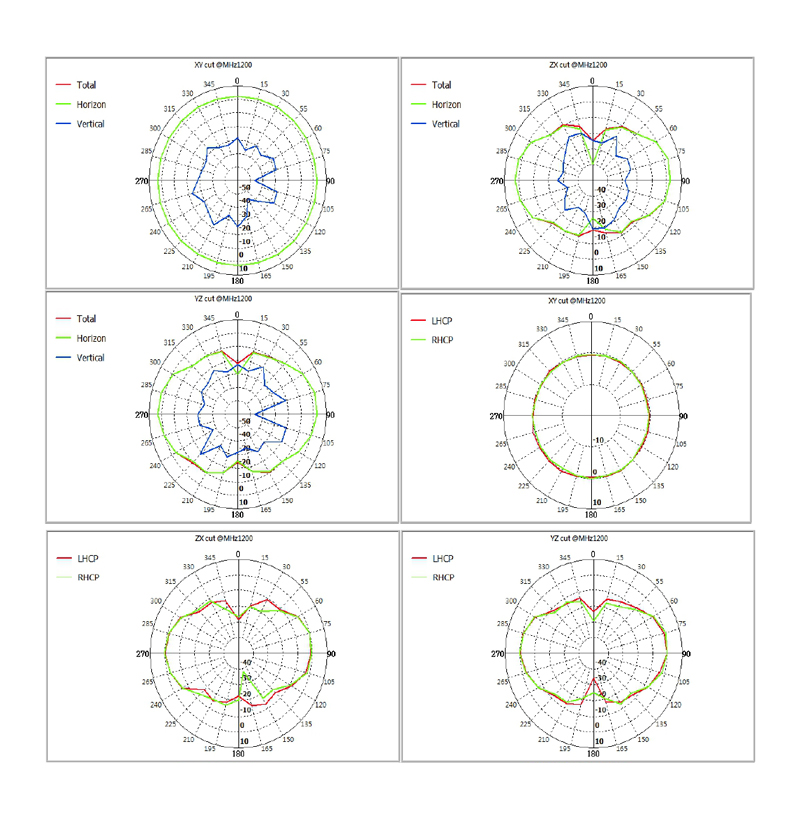

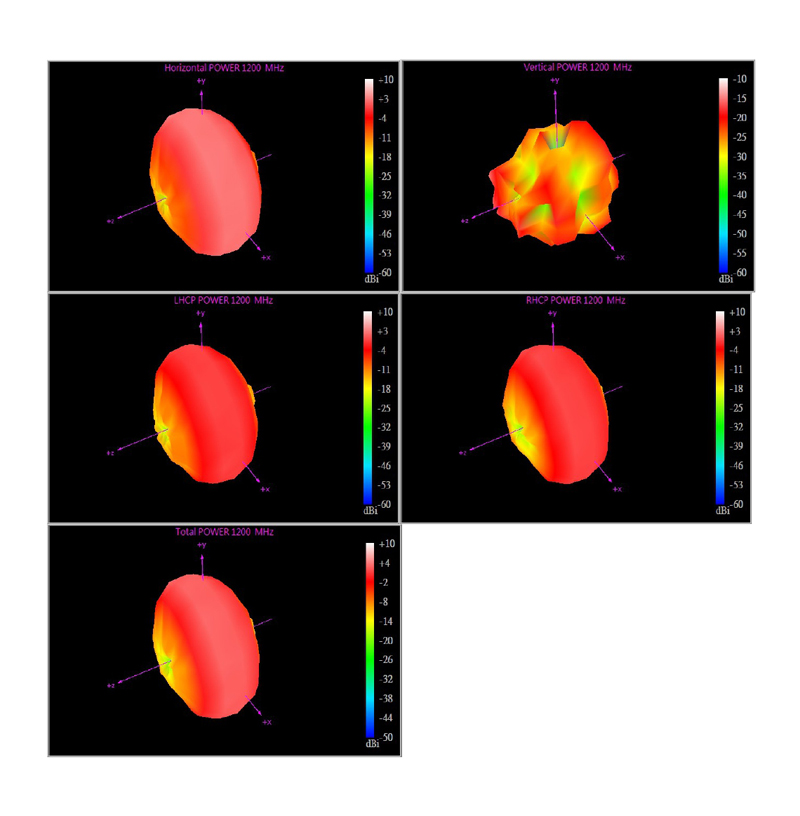

1200Mhz:

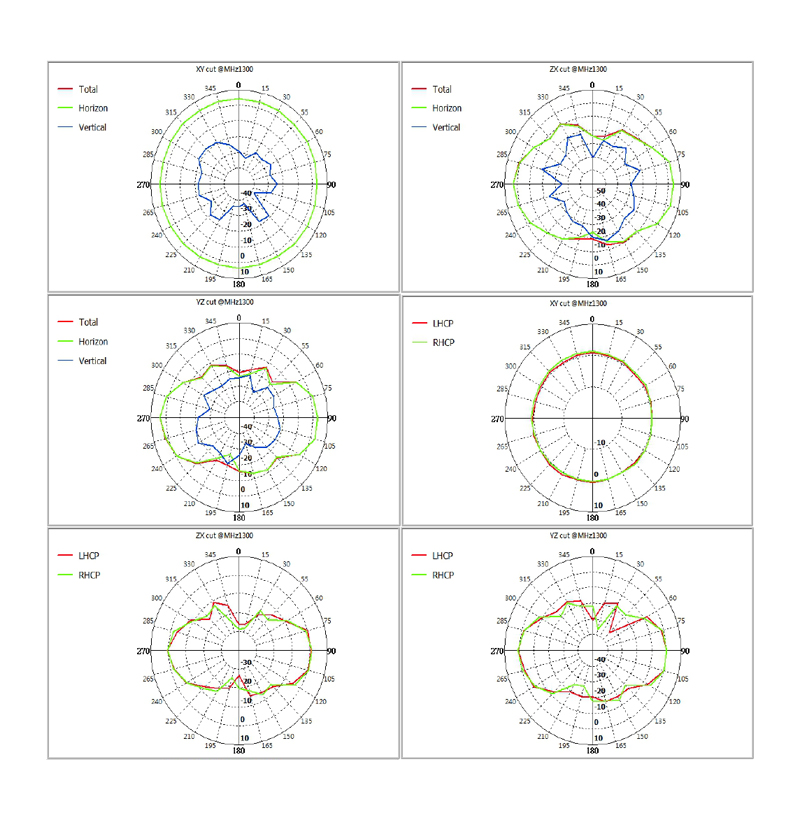

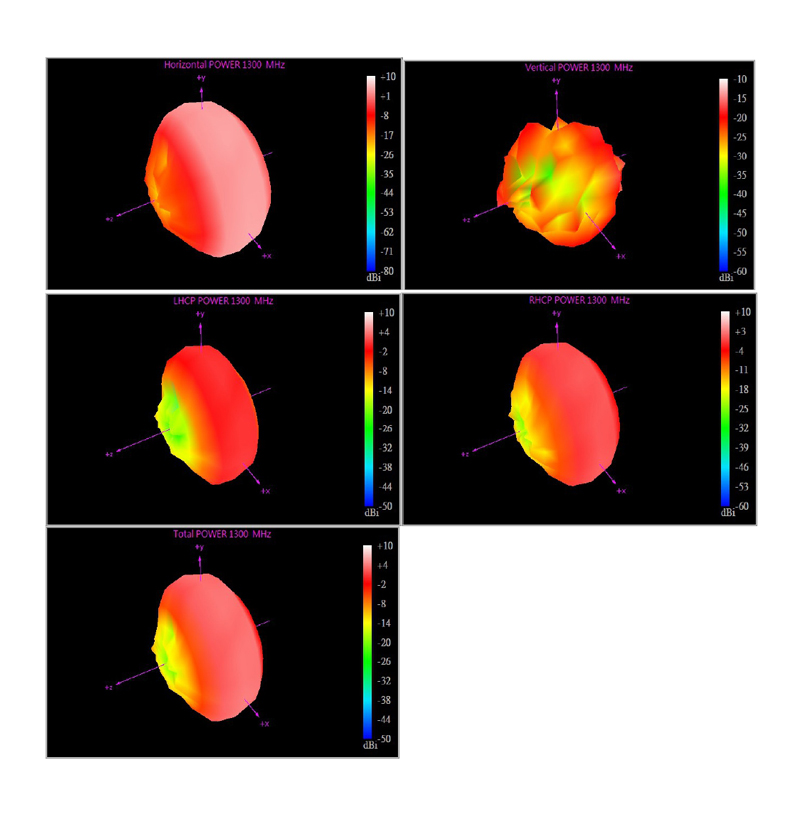

1300Mhz:
