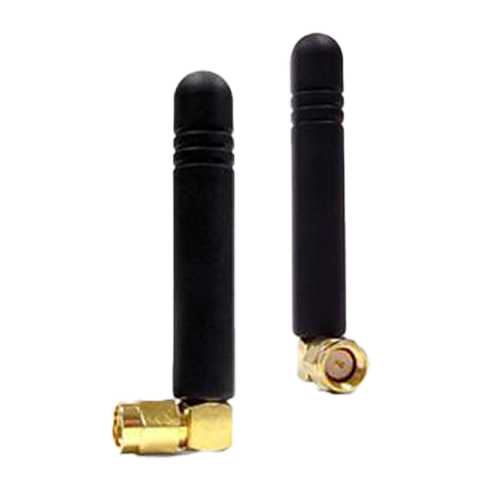

1.GENERAL DESCRIPTION
| Model No |
| TH80-1090-SMA90(M) |
Below is a table summarizing the antenna design specification.
1.1 Electrical Properties
| Parameter |
Description |
| Frequency Band |
1080~1100MHz ON 64x100mm GND TEST |
| Nominal Impedance |
50 ohm |
| Polarization |
Vertical |

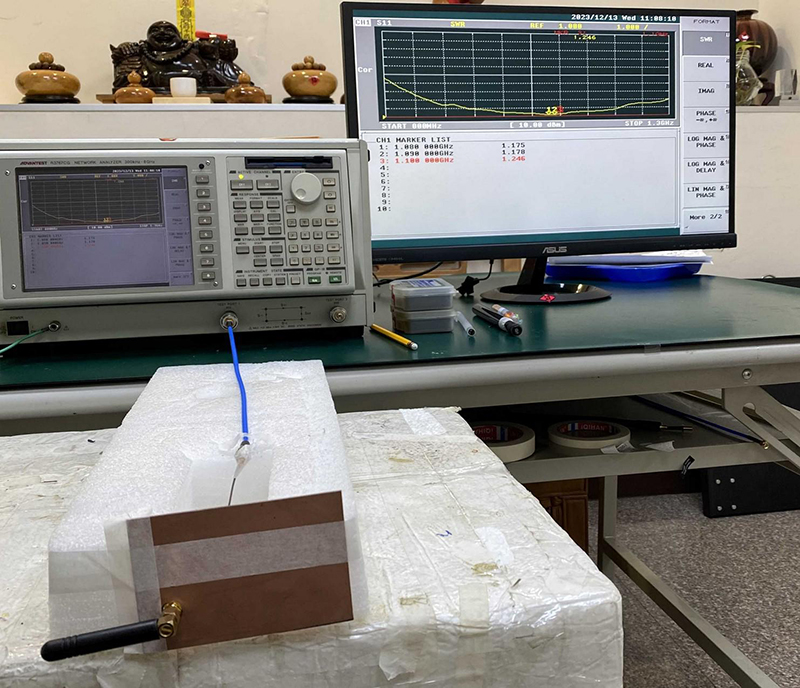

| Return Loss |

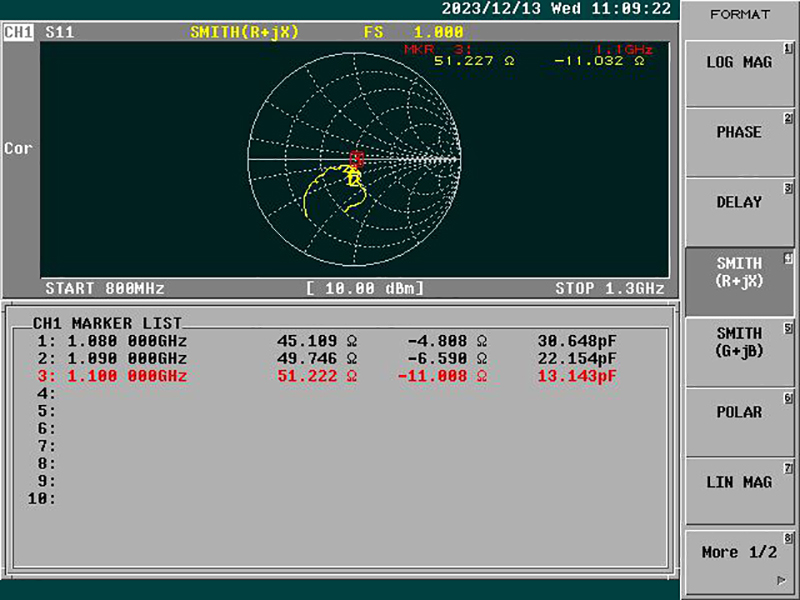

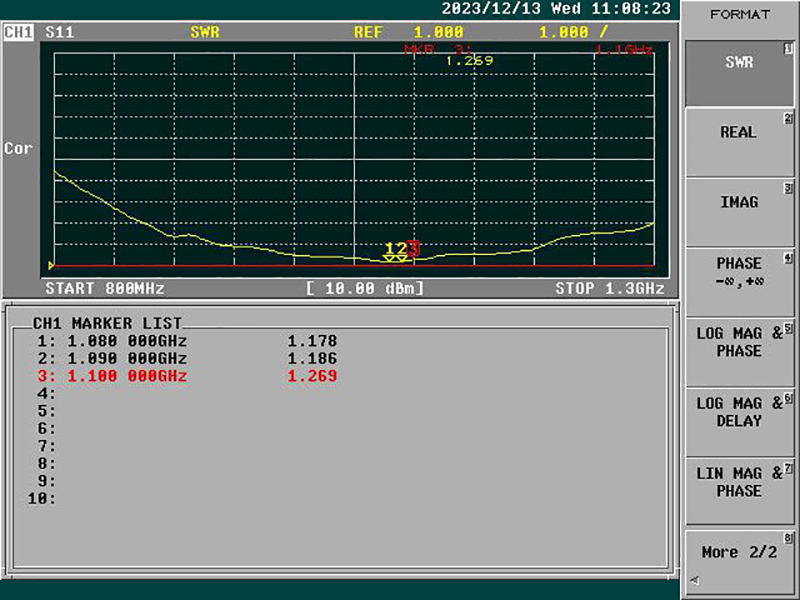

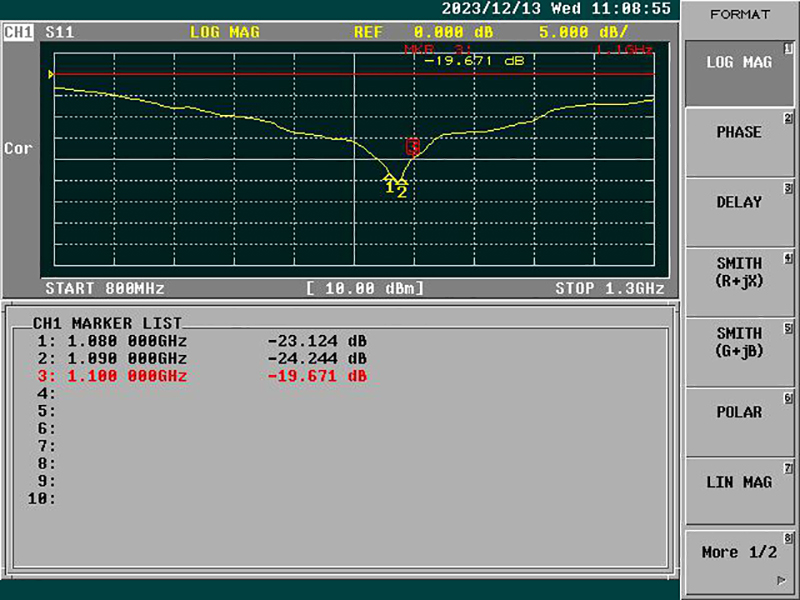

Please See Data-1 |
| V.S.W.R |
2.0：1 |
| Gain |
1db |
| Note: Gain includes the cable loss |
1.2 Mechanical Properties
| Parameter |
Description |
| Antenna Type |
External Antenna |
| Antenna Material |
TPU |
| Touch Type |
Screw Type |
| Connector Type |
SMA 90˚(Male) |

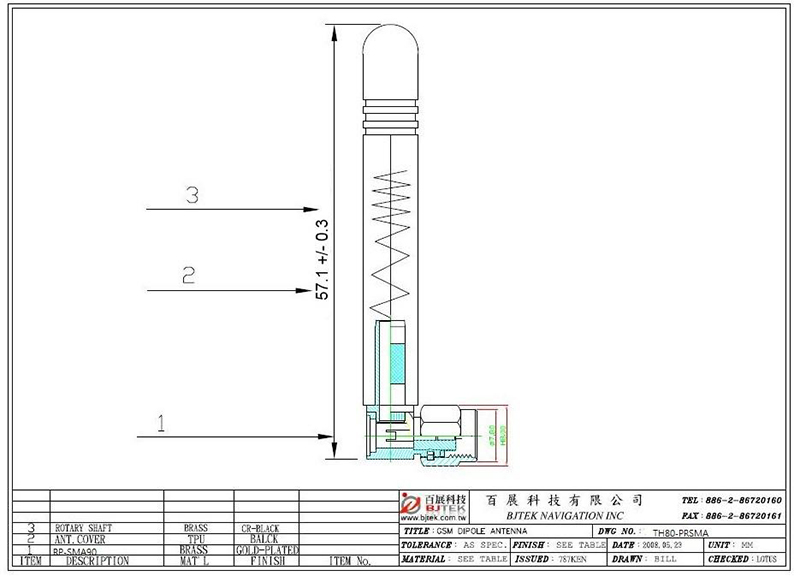

| Antenna Dimensions |
57.1mm ±0.3 |
| Antenna Color |
Black |
| Operating Temperature Range |
-40°C~+85°C |
| Storage Temperature Range |
-40°C~+85°C |
