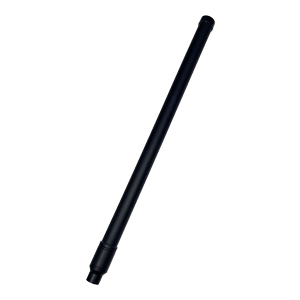

TH-885

TH-885

Inquiry

Download

TH-885
  • Product Description
  • Product Specification
Frequency range: 840~930Mhz
Gain: 3~5dBi
V.S.W.R: 2.0
Impedence: 50 ohm
Connector: N Type male
Dimension: 605mm +/-10 x OD36mm
Weight: 0.34Kg
Polarization: vertical
Power handling: 100W
Materials: Fiberglass & copper
Colour: Black
Rated wind velocity: 60m/s
Working Temperature: -40~60℃
Lightning Protection: Direct Ground

* This specification is subject to change without prior notice

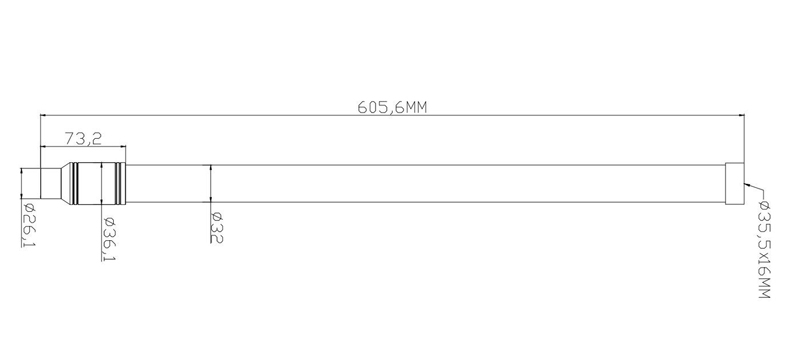

2.APPEARANCE:

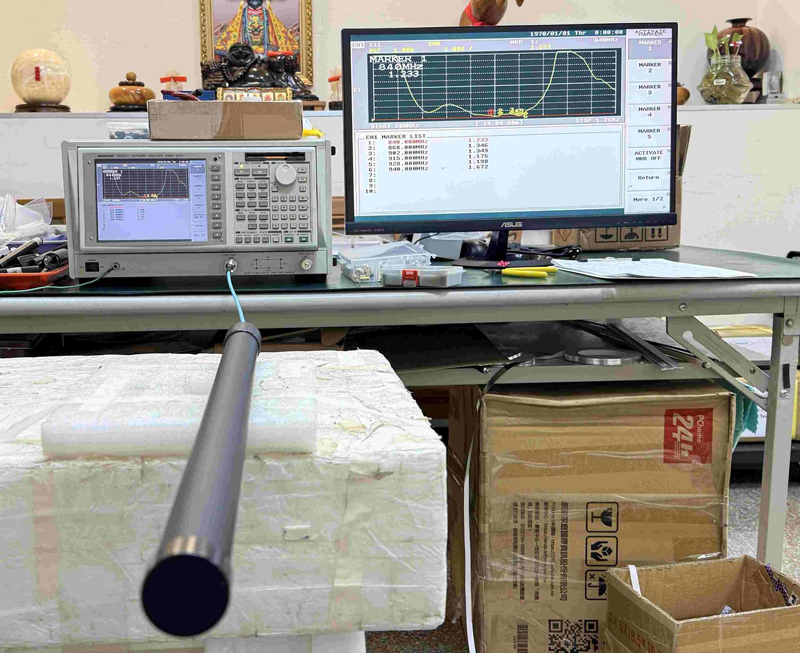

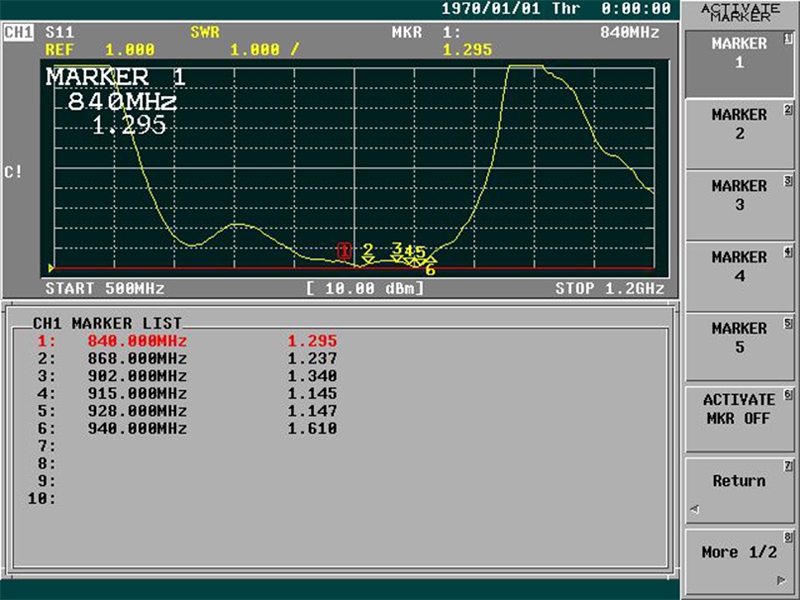

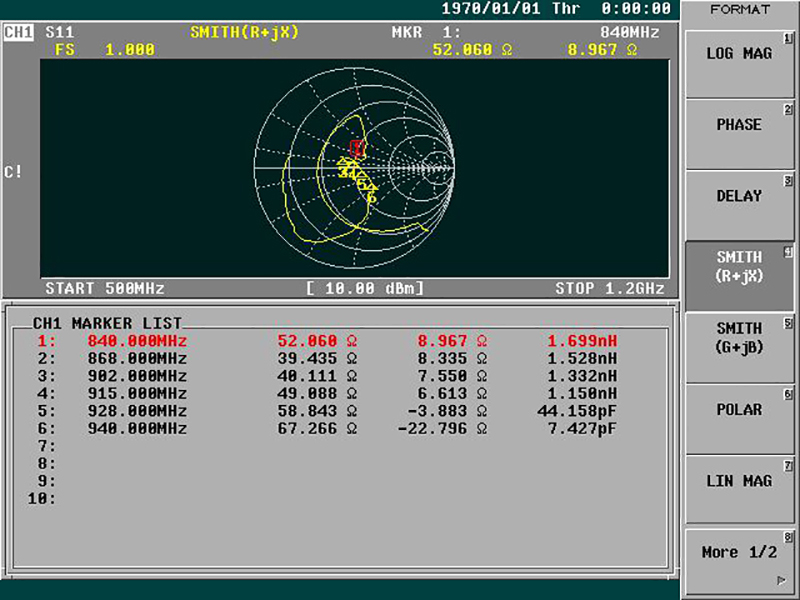

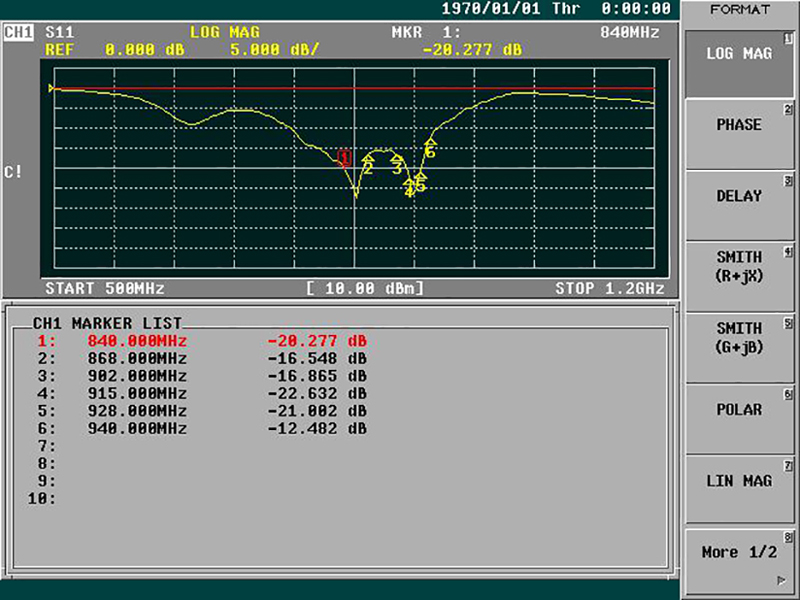

3.FREQUENCY:

3D Total

Frequency
(MHz)		 Upper Hem.PRP
(dBm)		 Lower HEM.PRP
(dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain
(dBi)		 Tot. Rad.Pwr.
(dBm)
824 MHz -4.73 -6.02 -2.32 58.64 2.77 -2.32
840 MHz -5.56 -6.30 -2.90 51.24 2.08 -2.90
850 MHz -4.77 -5.31 -2.02 62.78 2.76 -2.02
860 MHz -3.40 -3.78 -0.58 87.60 4.26 -0.58
868 MHz -3.26 -3.50 -0.37 91.87 4.59 -0.37
875 MHz -4.22 -4.39 -1.30 74.21 3.77 -1.30
880 MHz -3.54 -3.65 -0.58 87.42 4.24 -0.58
890 MHz -5.19 -5.25 -2.21 60.13 2.85 -2.21
900 MHz -3.73 -3.80 -0.76 84.02 4.31 -0.76
902 MHz -3.63 -3.60 -0.60 87.03 4.40 -0.60
915 MHz -2.94 -2.86 0.11 100.00 5.37 0.11
928 MHz -3.09 -2.89 0.02 100.00 5.10 0.02
930 MHz -3.36 -3.08 -0.21 95.33 4.85 -0.21
940 MHz -2.57 -2.35 0.55 100.00 5.23 0.55
950 MHz -2.39 -2.99 0.33 100.00 5.08 0.33
960 MHz -3.31 -5.07 -1.09 77.79 4.10 -1.09

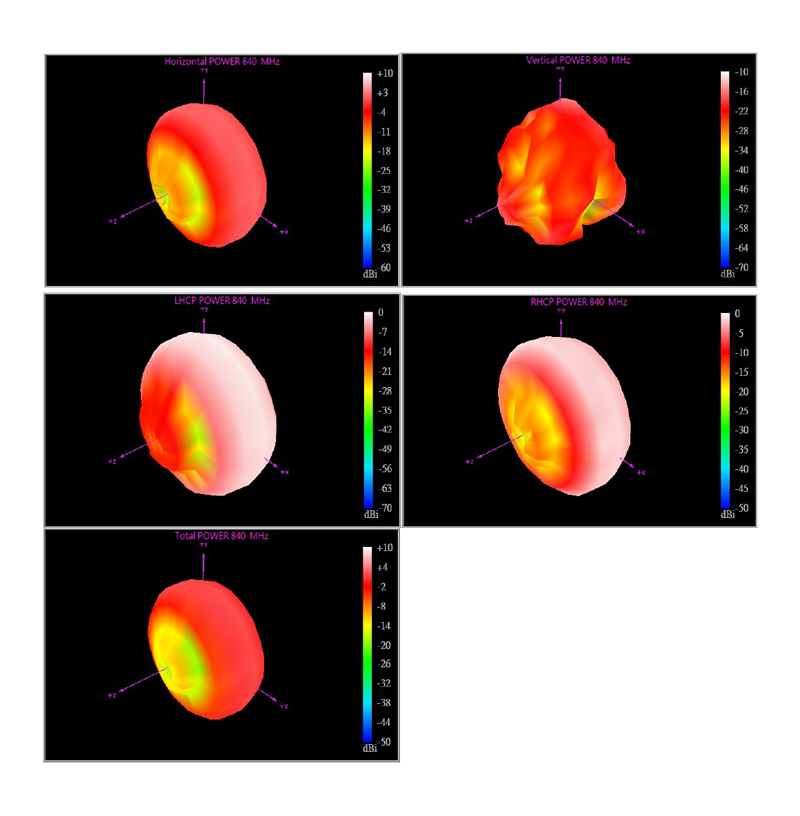

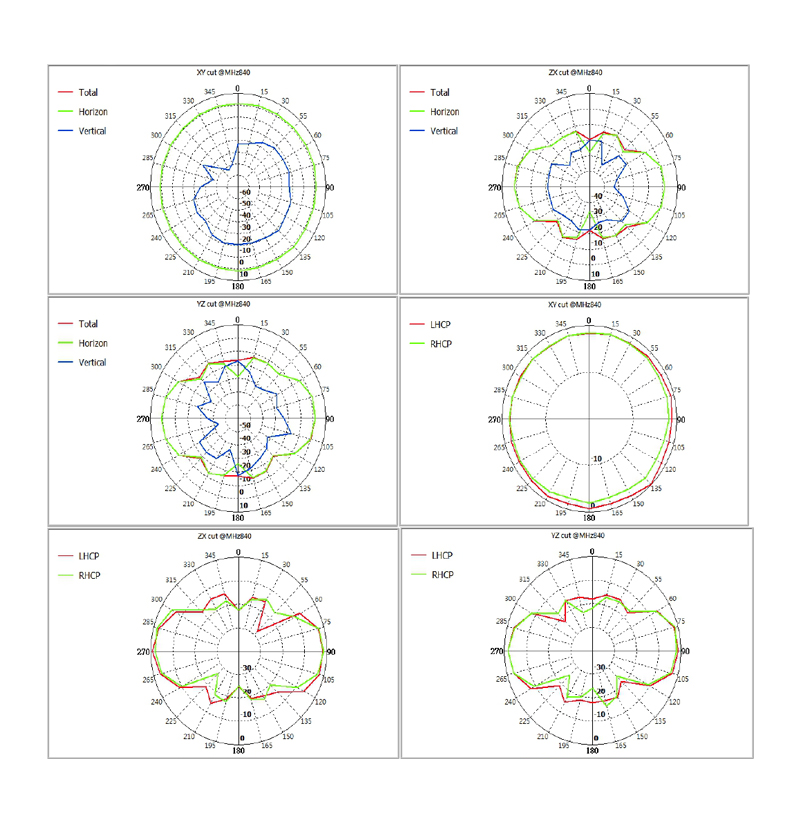

840Mhz:

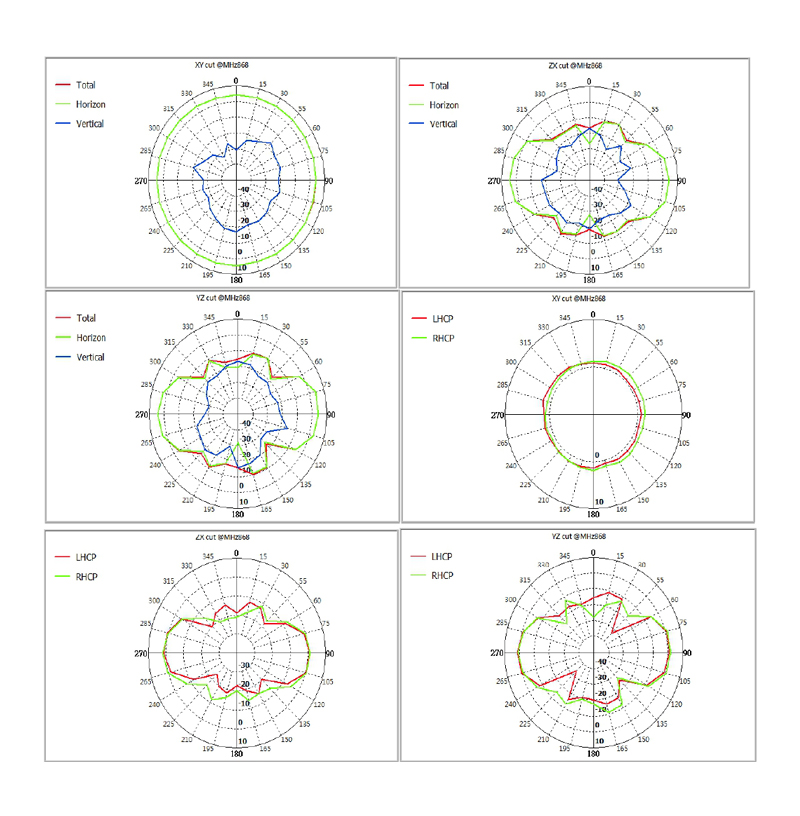

868Mhz:

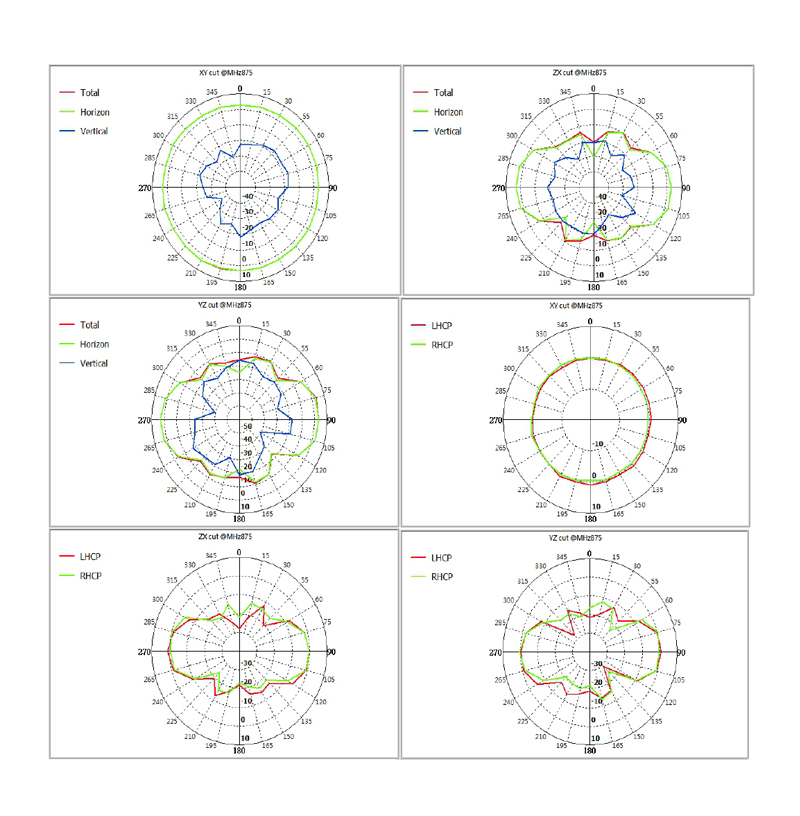

875Mhz:

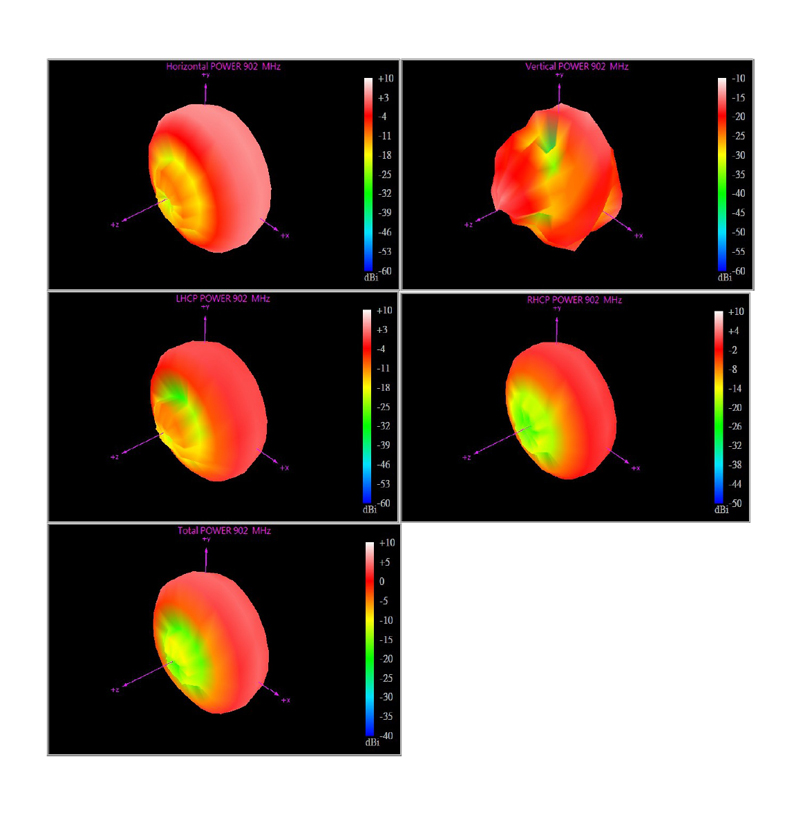

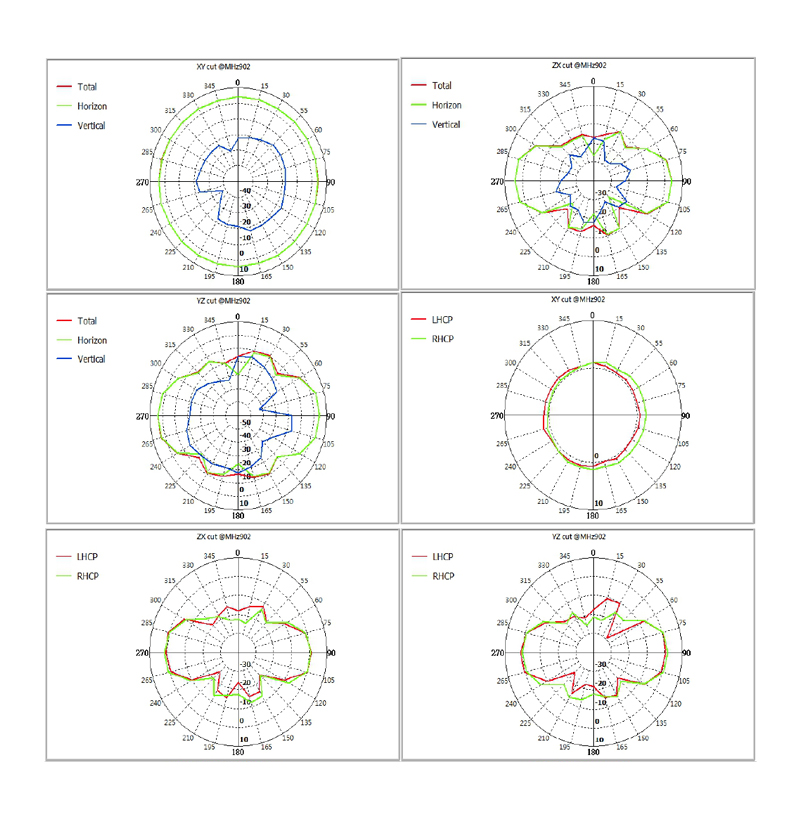

902Mhz:

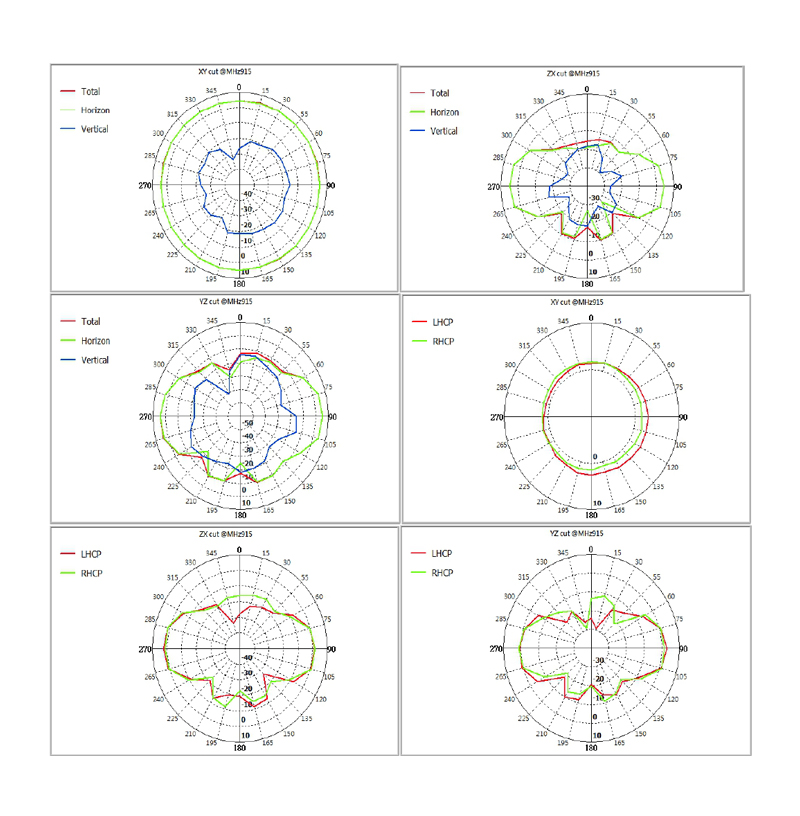

915Mhz:

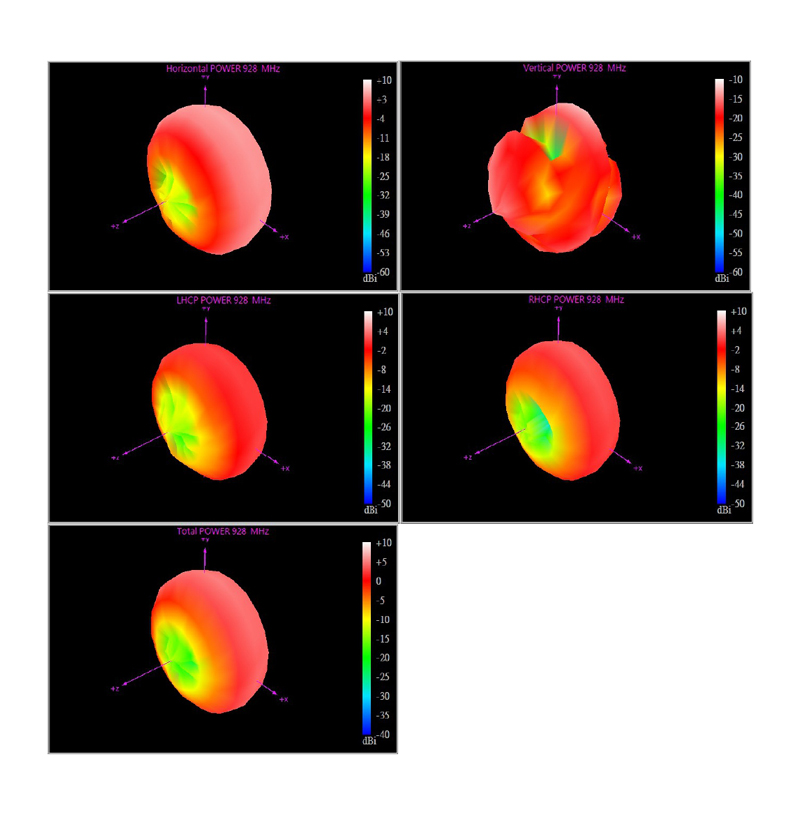

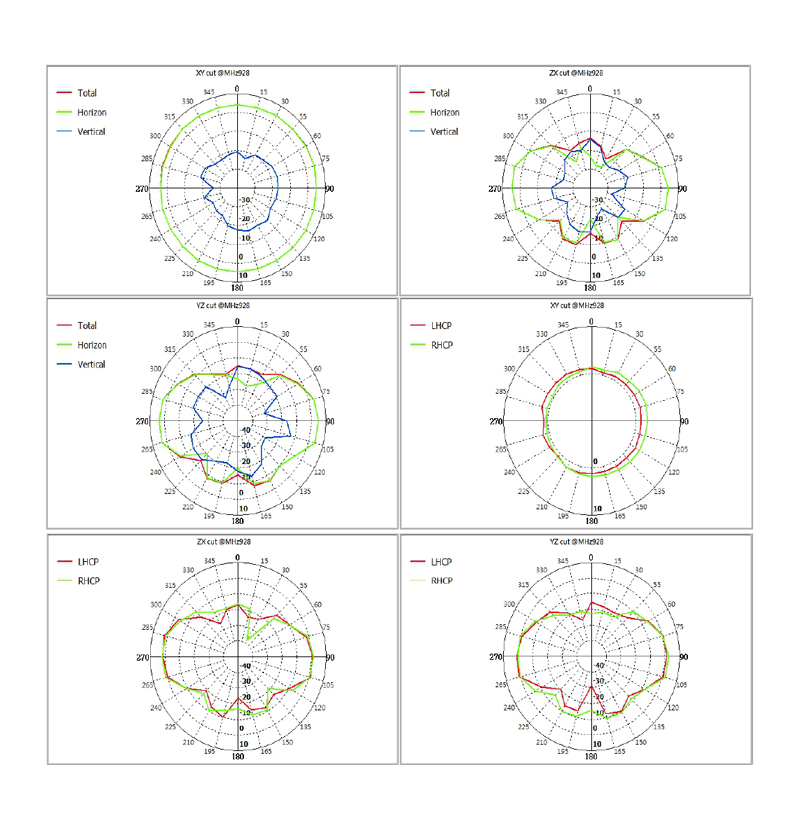

928Mhz:
