TH-885C
  • Product Description
  • Product Specification

1. Specifications

Parameter Description
Frequency range 824~960MHz
Gain 5dBi

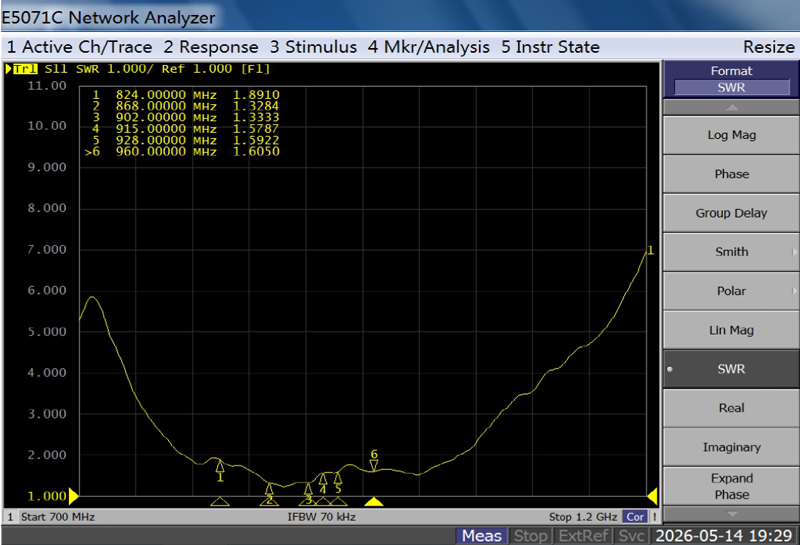

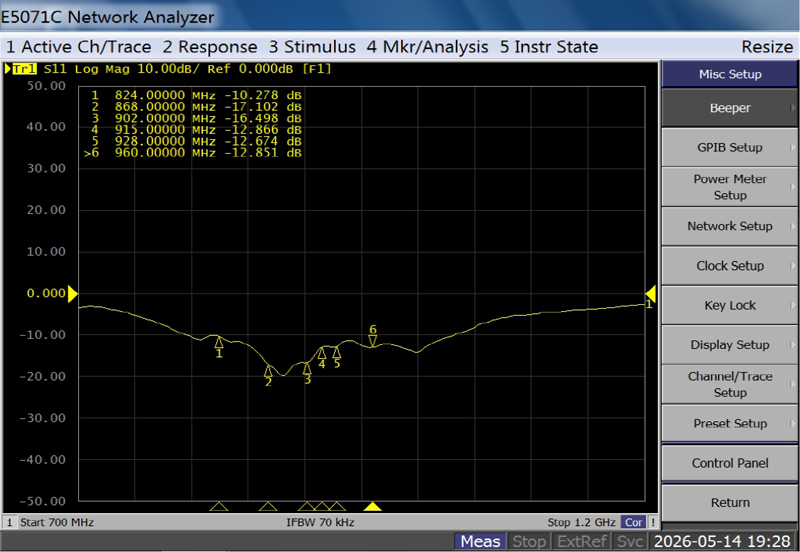

V.S.W.R 2.0

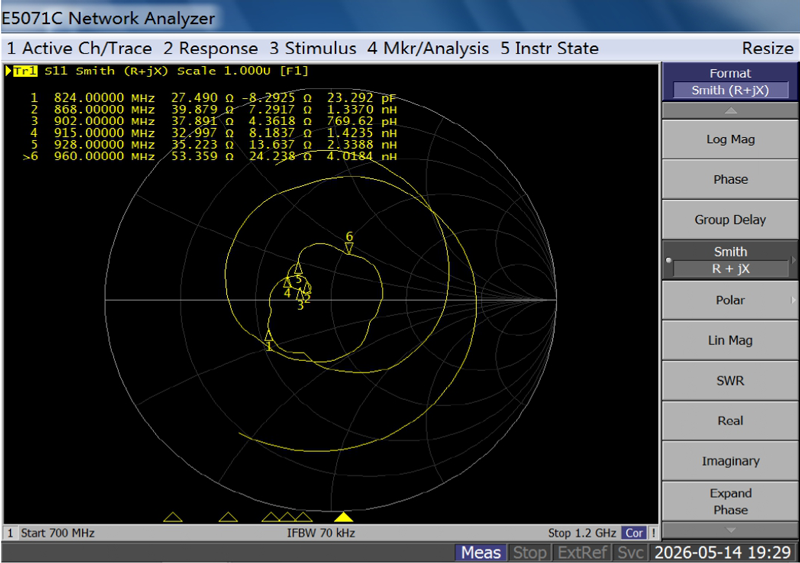

Impedence 50 ohm
Connector N Type male
Dimension 600mm +/-10 x OD22.5mm
Weight 0.25Kg
Polarization vertical
Power handling 100W
Materials Fiberglass & copper
Colour White
Rated wind velocity 60m/s
Working Temperature -40~60°C
Lightning Protection Direct Ground

* This specification is subject to change without prior notice.

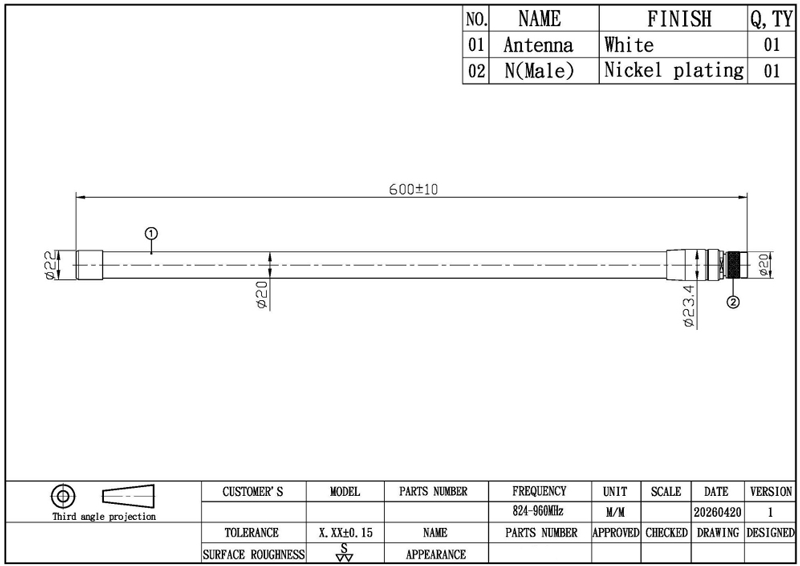

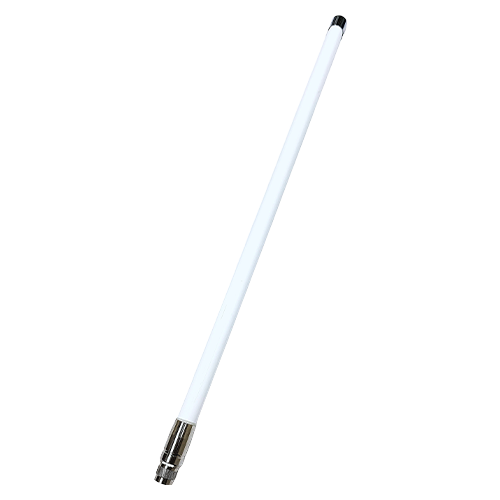

2. Appearance

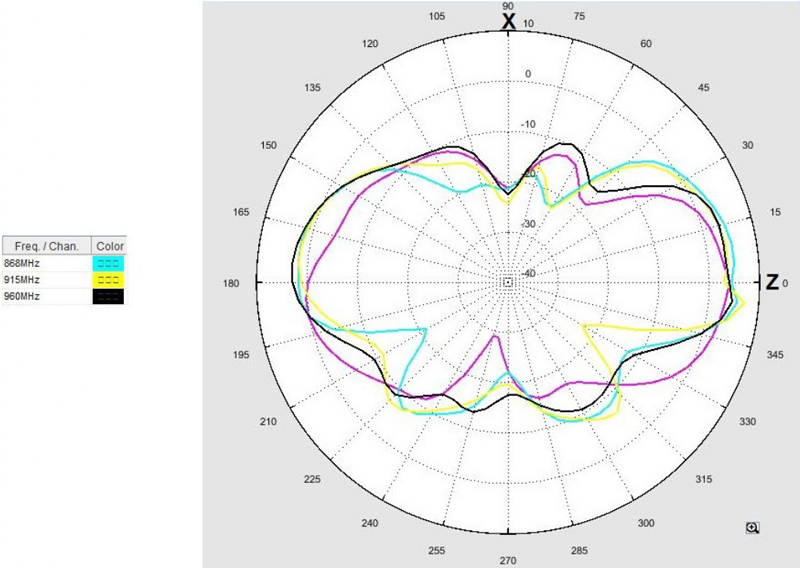

2. Frequency

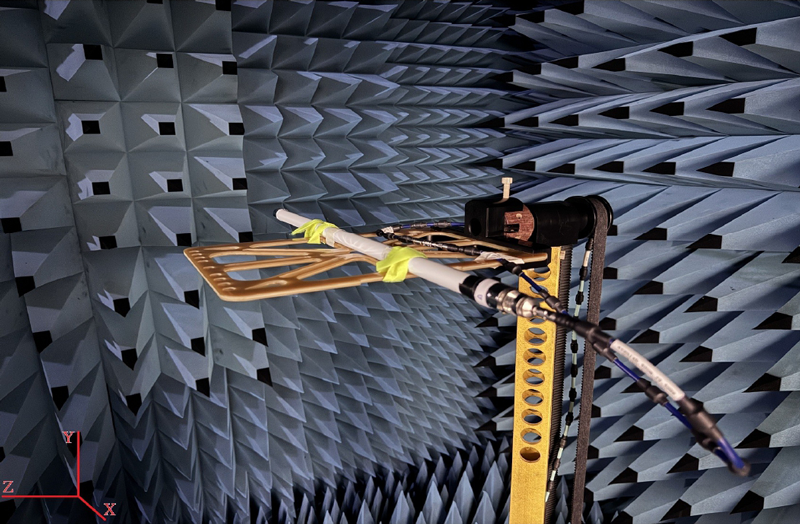

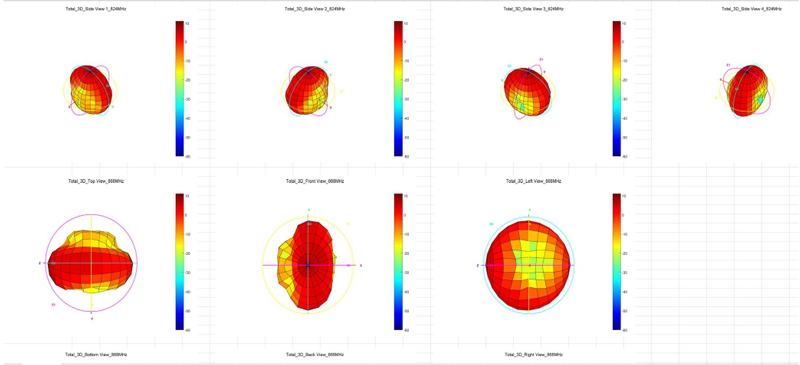

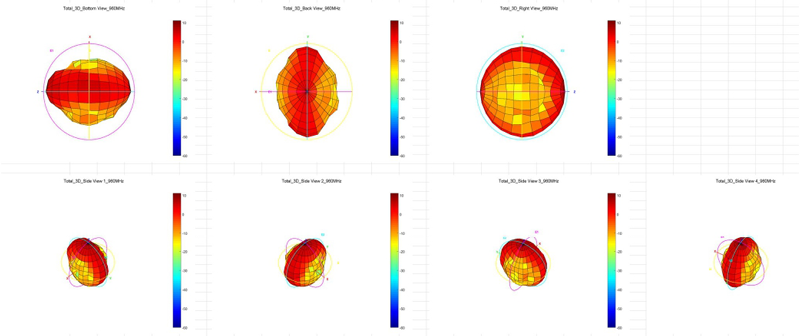

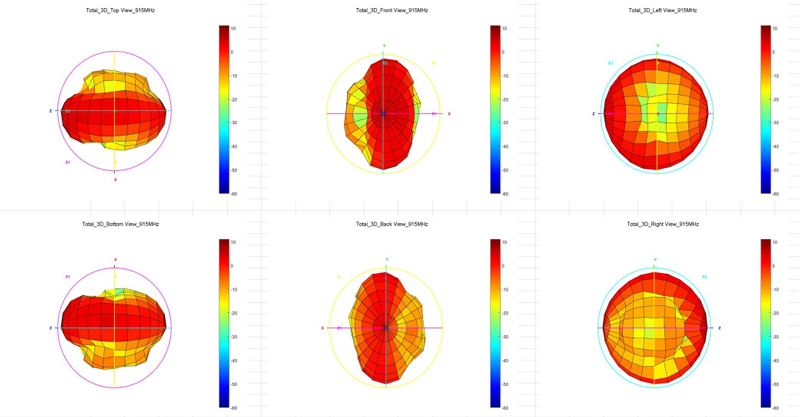

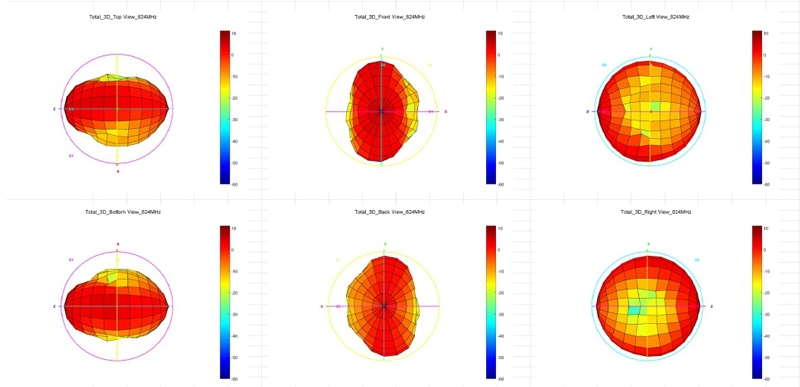

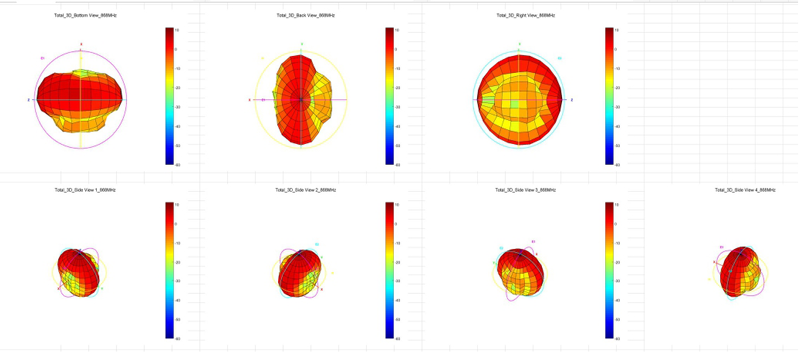

3D Total

Frequency 824MHz 868MHz 915MHz 960MHz
Horizontal + Vertical Efficiency (%) 63.24 65.61 56.75 72.78
Horizontal + Vertical Gain (dBi) 4.34 4.89 4.12 5.12

Horizontal
H Efficiency (%) 10.26 13.12 10.38 10.54
H Gain (dBi) 4.05 4.48 3.41 4.01

Vertical
V Efficiency (%) 52.97 52.48 46.34 62.23
V Gain (dBi) 3.83 4.35 3.86 5.12
