| PHYSICAL CONDITION |
| Constructions: |
ASA-UV radome for 100% waterproof |

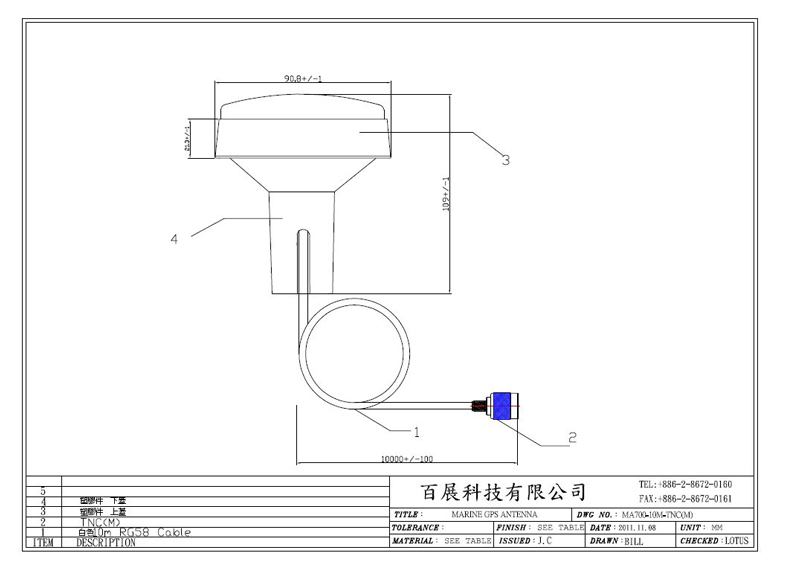

| Dimensions: |
90.5mm (Dia.) × 108.5mm (H) |
| Weight: |
150grams (w/o cable & connector). |
| Color: |
Standard in ivory white, other colours available upon request. |
| Base mounting |
FB1 1"-14 UNS (optional) |
| Cable & Connector |
| RF cable: |
10 meter RG58 |
| Pulling strength: |
6 Kg @ 5sec. molded plastic on connector end for strain relief. |
| Connector |
SMA (M) or TNC (M) or BNC (M) ------- |
| Overall Performance: (antenna element, LNA coax cable) |
| Center Frequency: |
1582.5±23.5MHz (L1), and 1176±12MHz (L5) |

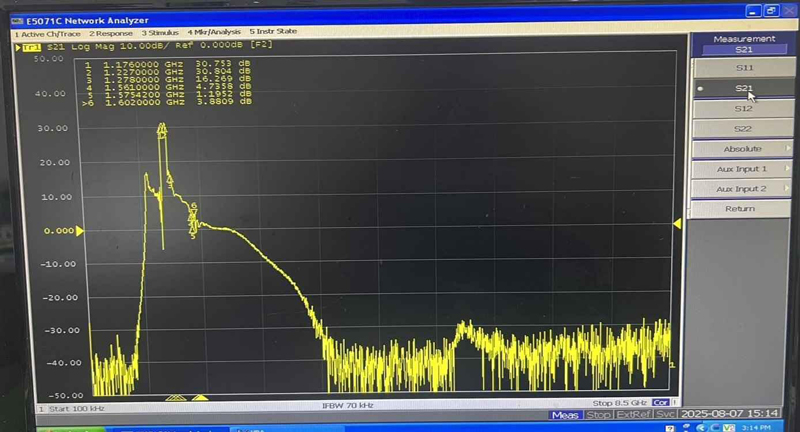

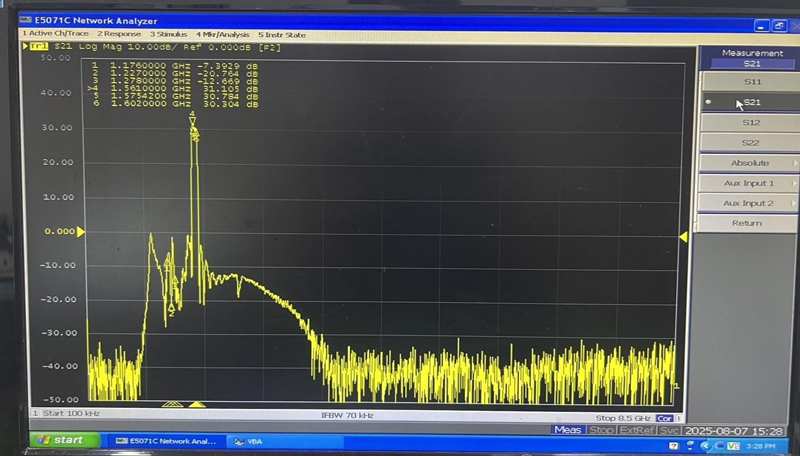

| Gain: |
30±2 dB typical at 3V (L1and L5)
30±2 dB typical at 5V (L1 and L5) |
| Noise Figure: |
2.0 max. |
| Bandwidth: |
±23.5MHz (L1), ±12MHz (L5) |
| VSWR: |
2.0 max. |
| Output Impedance: |
50 Ω |
| Environmental |
| Operating Temperature: |
-40oC~ +85oC. |
| Storage Temperature: |
-40oC~ +85oC. |
| Relative Humidity: |
95% non-condensing. |
| Water Resistance: |
100% waterproof. IPX8 |
Advantages:
- Low noise figure
- Fully 100% weather proof IPX8.
- Ultra-high Sensitivity
- Compact construction
- Excellent temperature stability

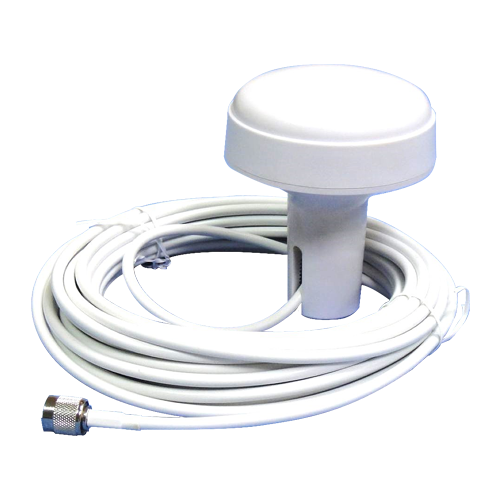

Our MA-700R is an outdoor waterproof GNSS antenna that supports the GNSS L1+L5 active antenna for high-precision positioning. The GNSS L1+L5 dual-band active antenna features a high-sensitivity design and supports L1 (1575.42 MHz) and L5 (1176.45 MHz) dual-band signals, significantly improving positioning accuracy and anti-interference capabilities. It’s best for applications such as marine positioning and navigation, fishing equipment, AIS tracking devices, outdoor monitoring equipment for rainfall, wind speed, water level, bridges, and wind turbines. The antenna is compatible with mainstream GNSS chips (such as U-Blox, Broadcom, Qualcomm, and MTK), offering stable signals and low power consumption, and providing high-precision positioning within 2.5 meters, even in urban high-rise buildings or slightly obscured environments. Please don’t hesitate to email us if you have any questions.
