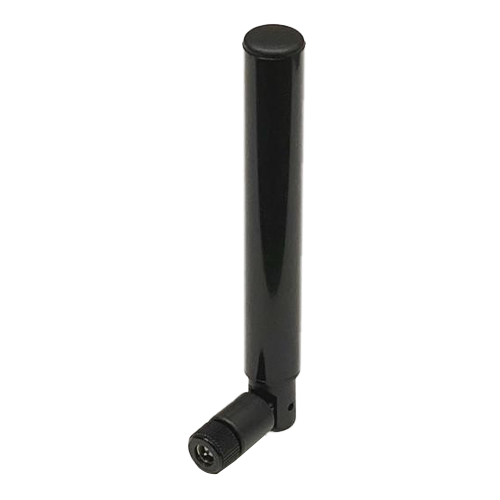

L Band & 2.4G & S Band Antenna TH‐1325C
  • Product Description
  • Product Specification

1.GENERAL DESCRIPTION

Model No
TH1325C-SMA(M)

1.1 Electrical Properties

Parameter Description
Frequency Band 1350~3000Mhz

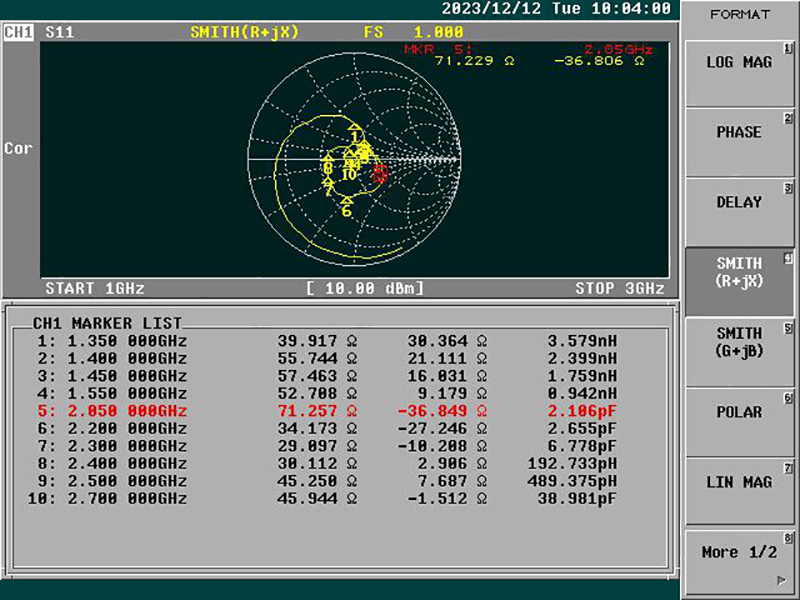

Nominal Impedance 50 ohm
Polarization Vertical

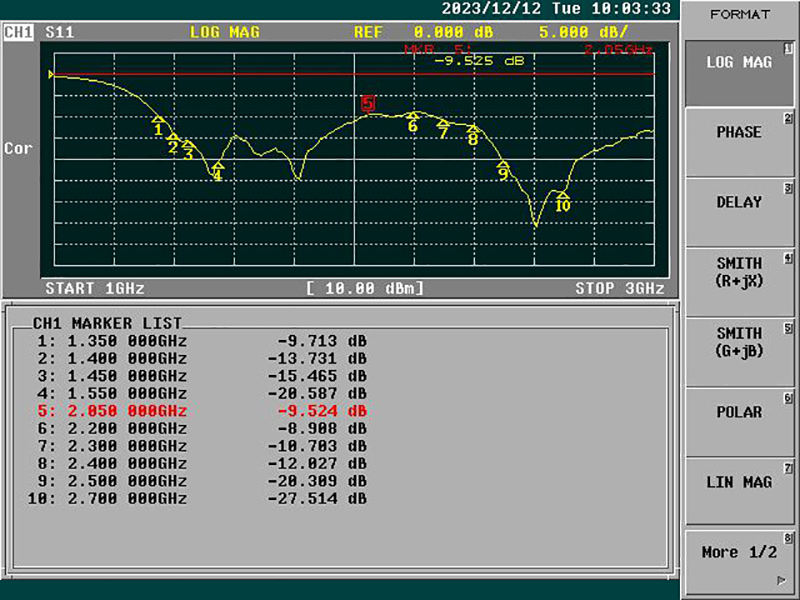

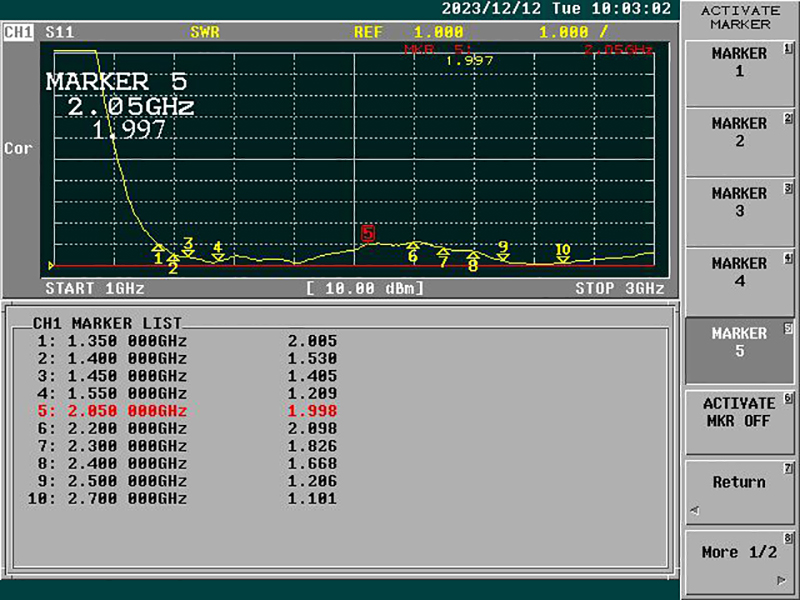

V.S.W.R 2.5:1

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Material ASA
Touch Type Screw Type
Connector Type SMA connector (Male)

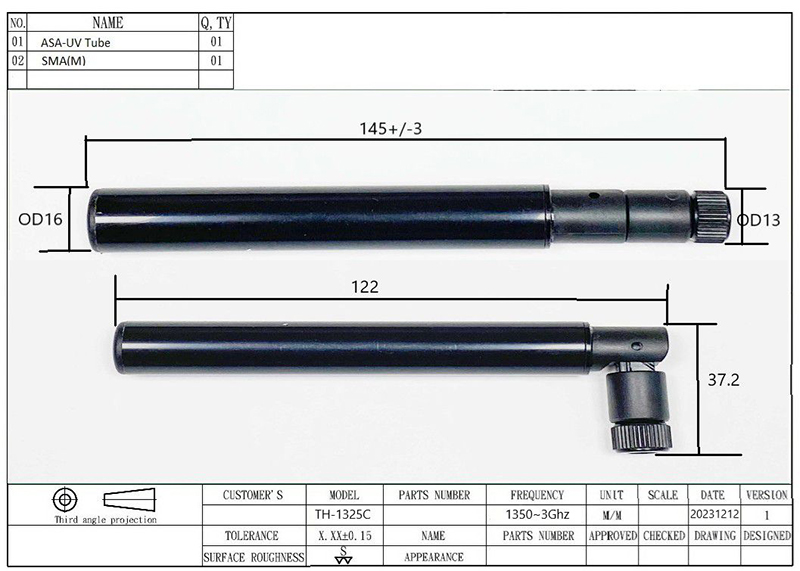

Antenna Dimensions Ø16 x 145mm ±3
Weight 45g
Antenna Color Black
Operating Temperature Range -40°C~+85°C
Storage Temperature Range -40°C~+85°C

Our MA-680D is a Passive Antenna, best for all types of L Band, 2.4G, and S Band communication transmission equipment, drone control data image transmission, wireless AP, PA signal transmission, interference... etc. The ASA has strong weather resistance and its anti-aging performance is more than 10 times that of ABS. The antenna can be bent in different angle for used. Please don’t hesitate to email us if you have any questions.






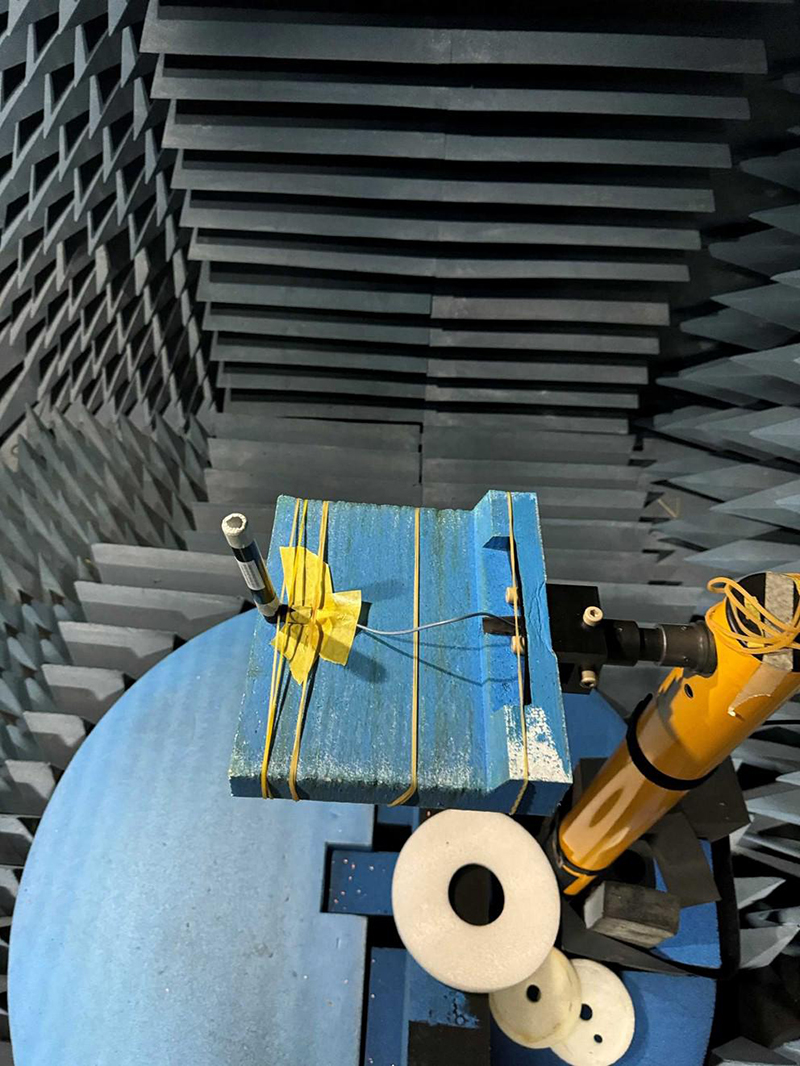

3D Total

Frequency
(MHz)		 Upper Hem.PRP
(dBm)		 Lower HEM.PRP
(dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain (dBi) Tot.Rad.Pwr.
(dBm)
1350 MHz -5.50 -5.35 -2.41 57.39 2.24 -2.41
1400 MHz -5.64 -5.40 -2.51 56.14 2.57 -2.51
1450 MHz -5.73 -5.52 -2.61 54.77 3.18 -2.61

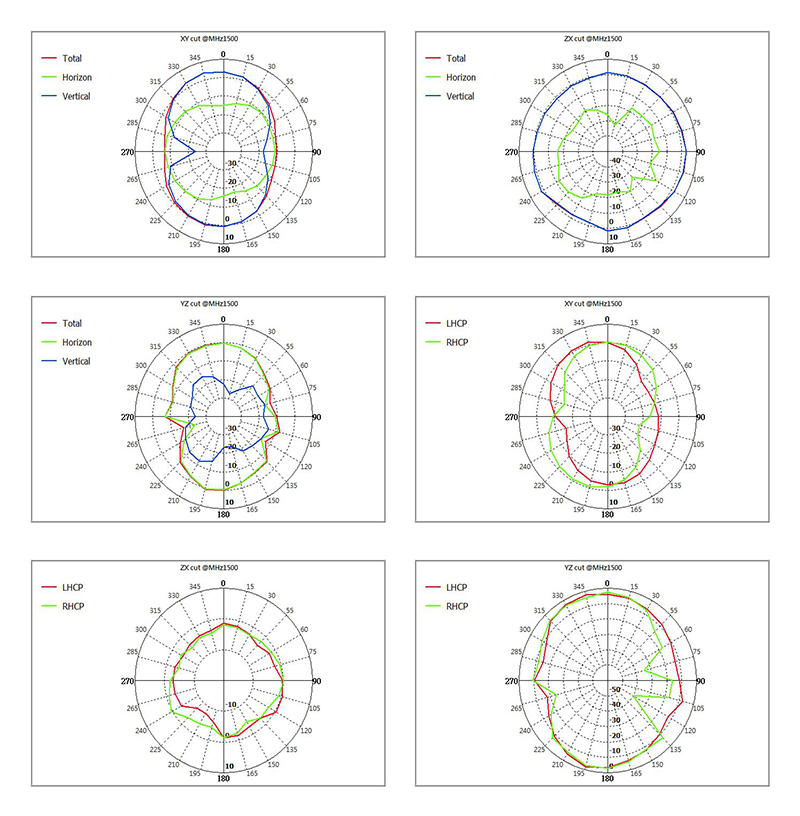

1500 MHz -5.55 -5.37 -2.45 56.89 3.90 -2.45
1600 MHz -6.63 -5.63 -3.09 49.10 3.16 -3.09
1700 MHz -6.09 -4.93 -2.46 56.72 3.61 -2.46
1800 MHz -5.92 -4.73 -2.28 59.20 3.83 -2.28
1900 MHz -6.59 -4.96 -2.69 53.88 3.21 -2.69
2000 MHz -6.25 -4.87 -2.50 56.28 3.02 -2.50
2100 MHz -5.87 -4.59 -2.17 60.67 3.49 -2.17
2200 MHz -6.91 -5.27 -3.00 50.09 3.96 -3.00
2300 MHz -6.08 -4.56 -2.24 59.71 4.20 -2.24
2400 MHz -6.04 -4.82 -2.37 57.88 4.31 -2.37
2500 MHz -6.16 -5.02 -2.54 55.70 4.07 -2.54
2600 MHz -5.30 -4.00 -1.59 69.34 4.83 -1.59
2700 MHz -5.54 -4.29 -1.86 65.12 4.59 -1.86
2800 MHz -7.62 -6.28 -3.89 40.86 1.49 -3.89
2900 MHz -6.33 -4.69 -2.42 57.27 3.94 -2.42
3000 MHz -5.40 -4.72 -2.04 62.59 4.76 -2.04

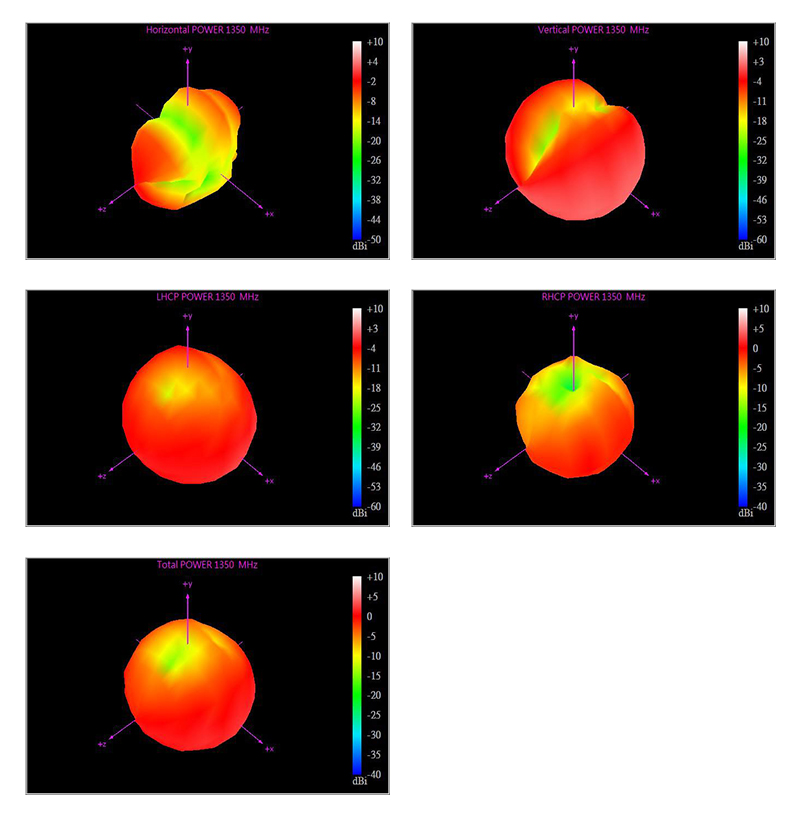

1350Mhz:

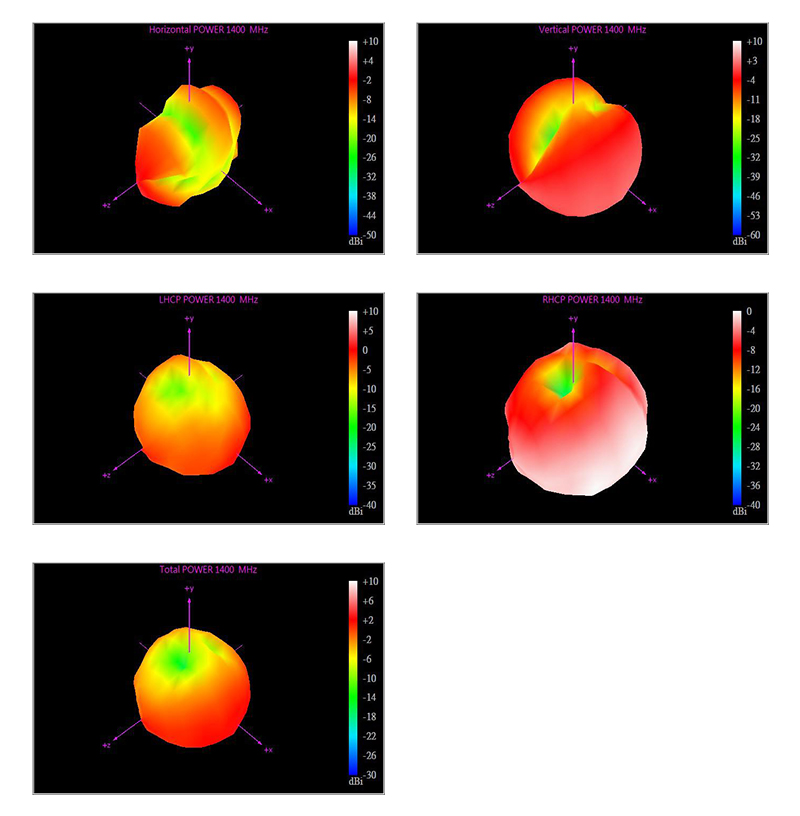

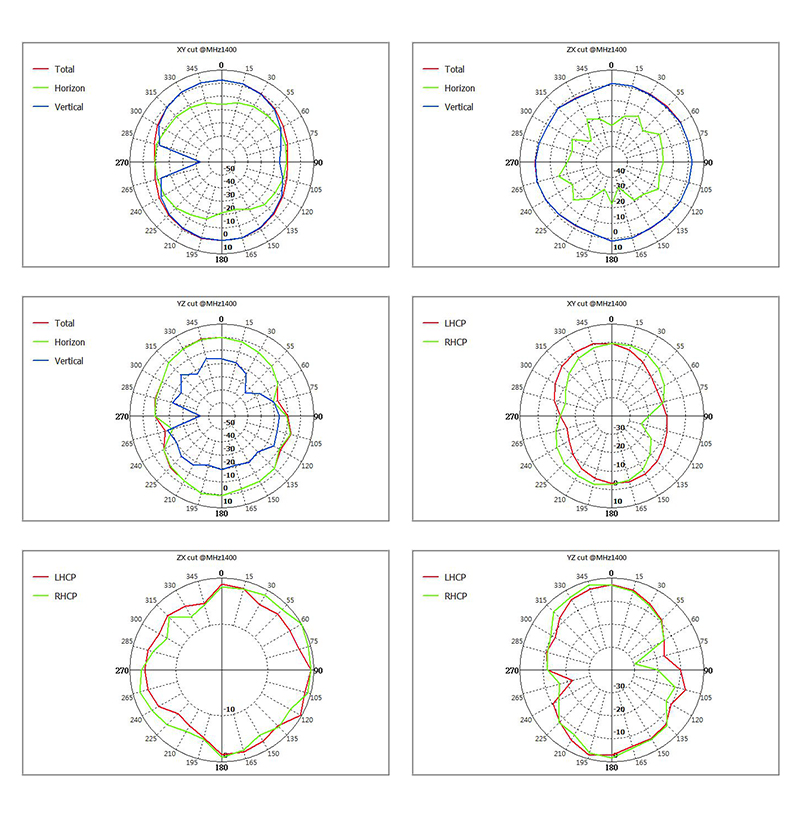

1400Mhz:

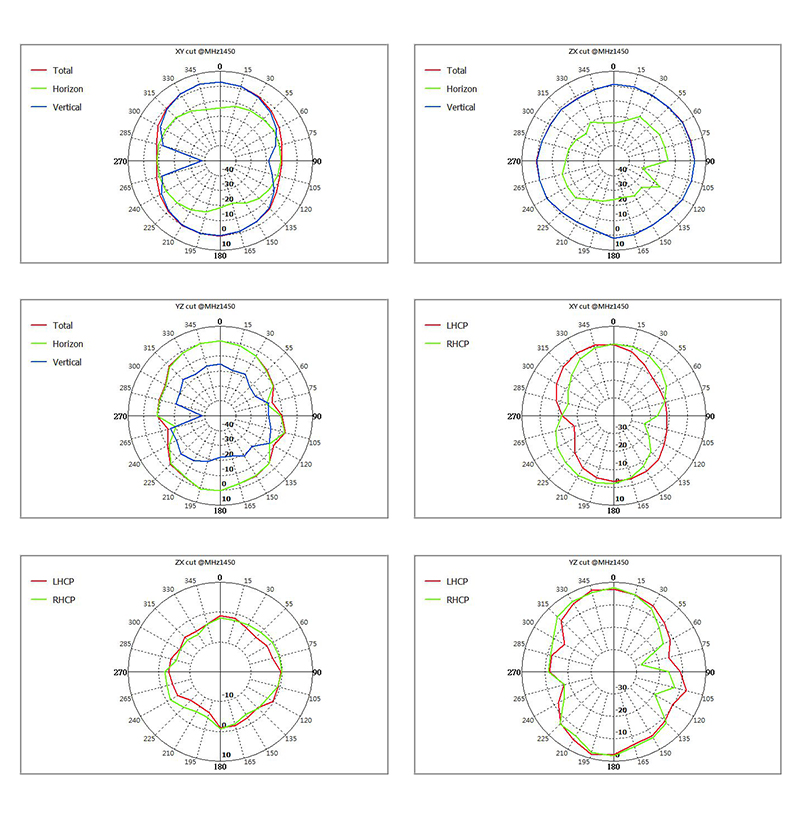

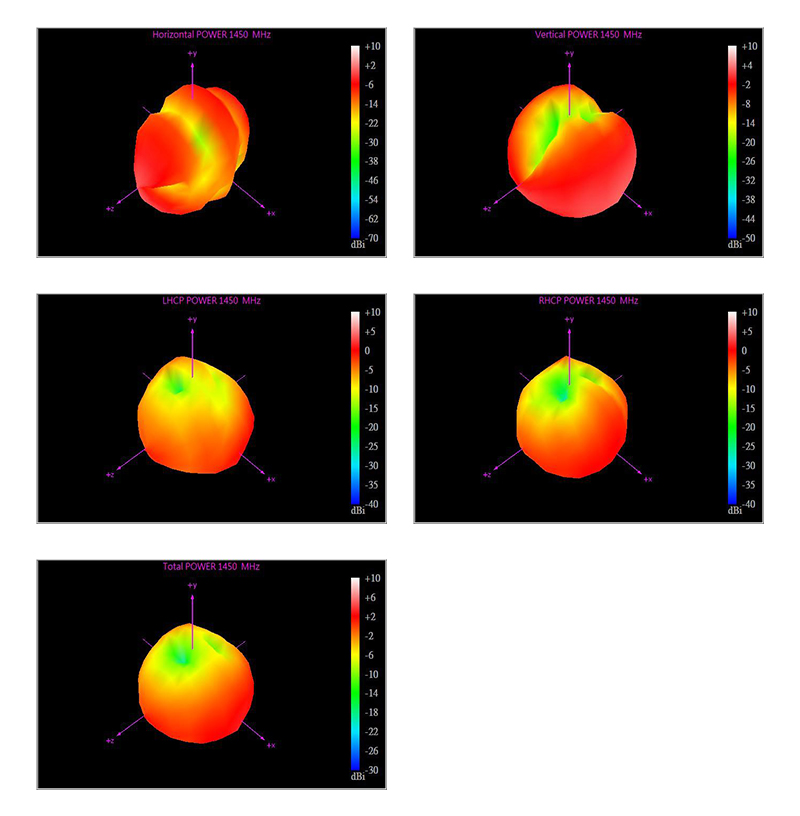

1450Mhz:

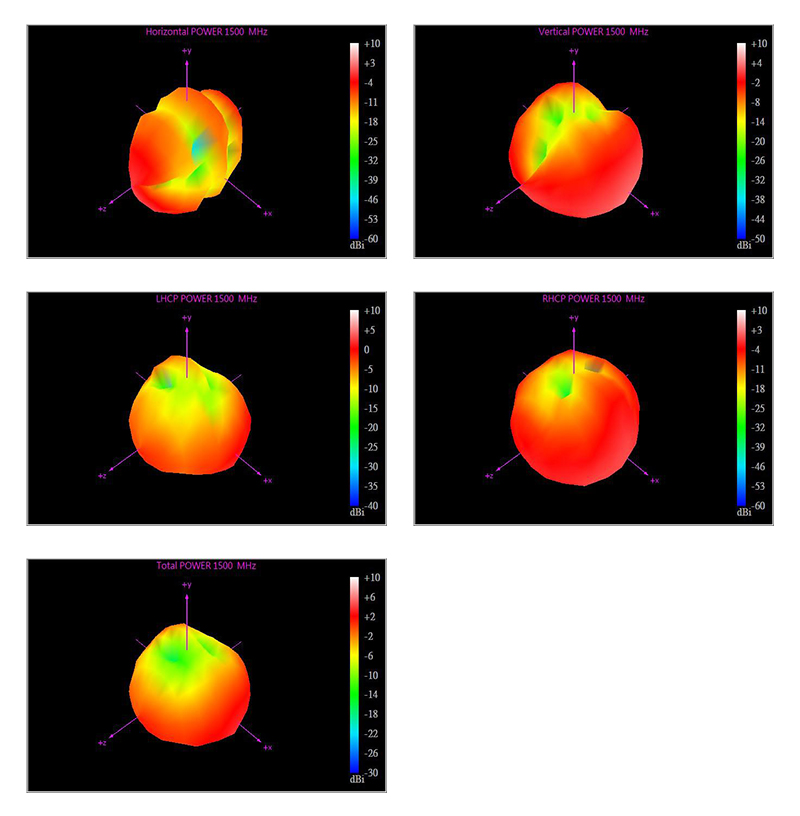

1500Mhz:

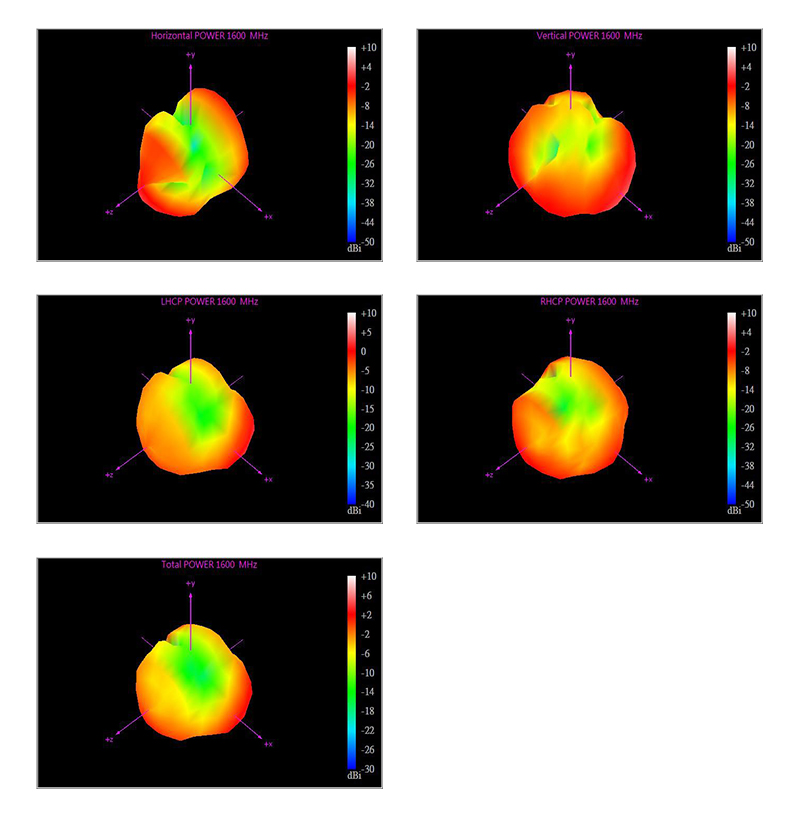

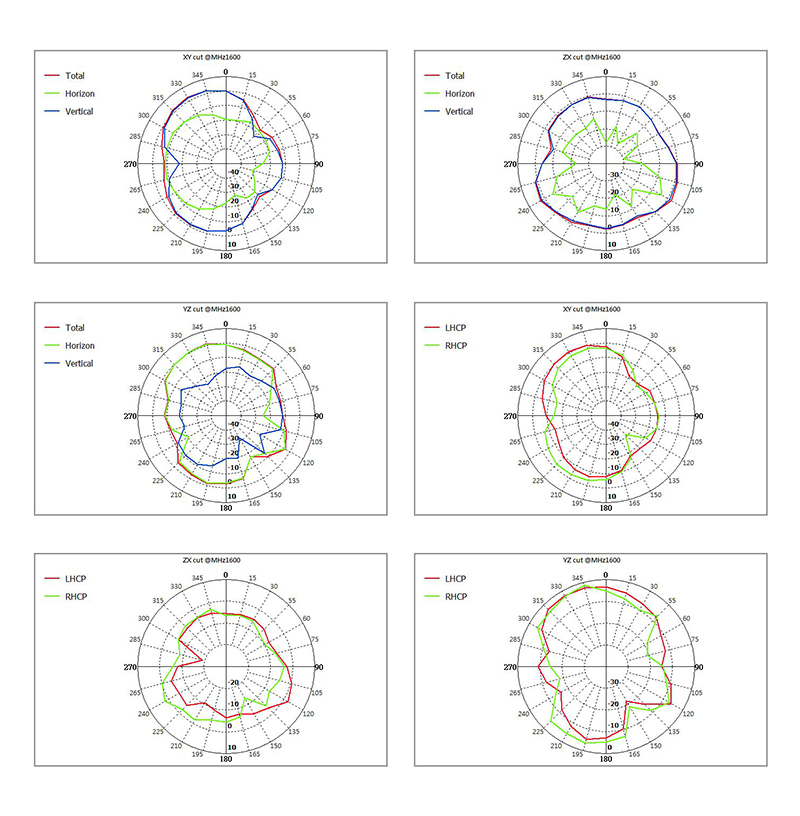

1600Mhz:

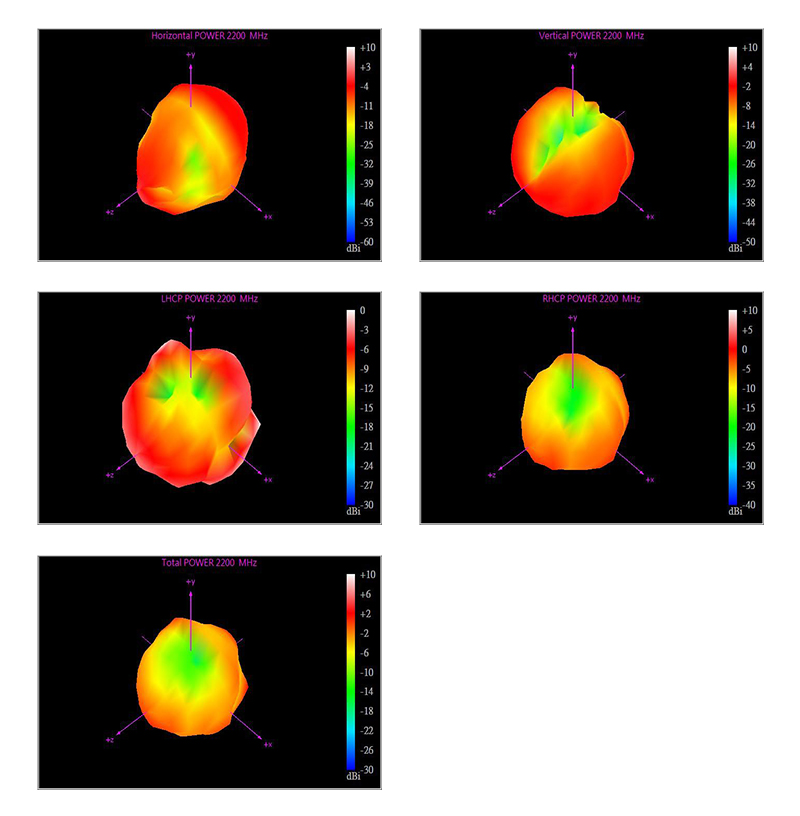

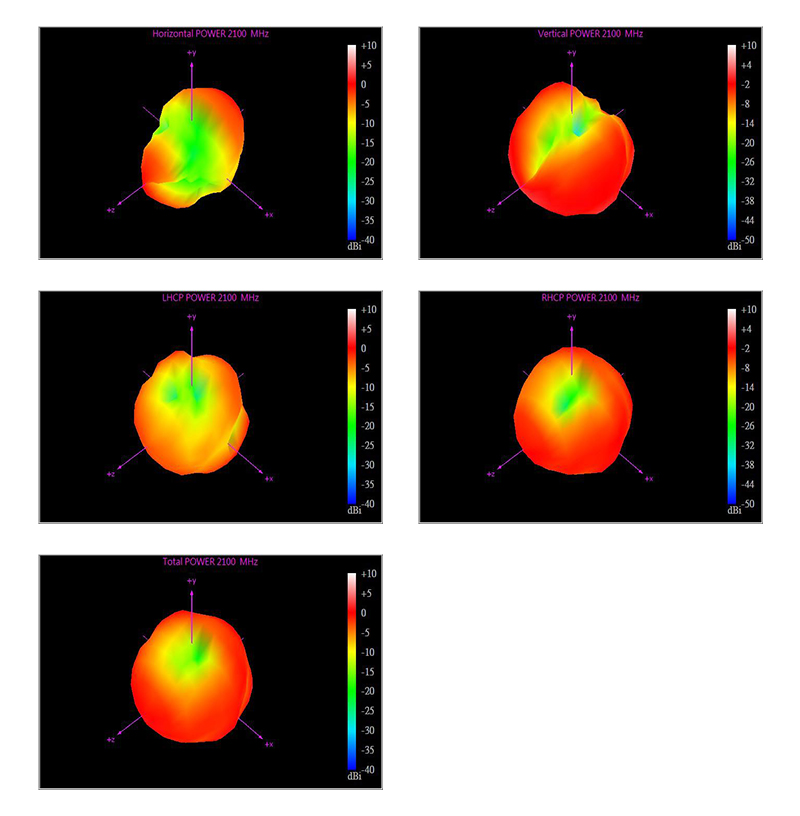

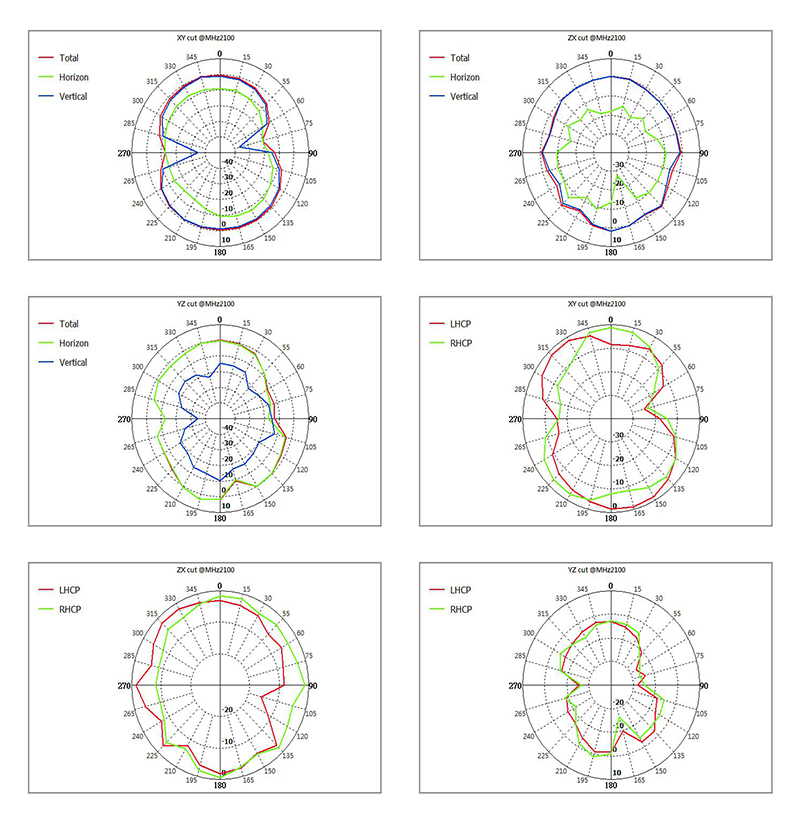

2100Mhz:

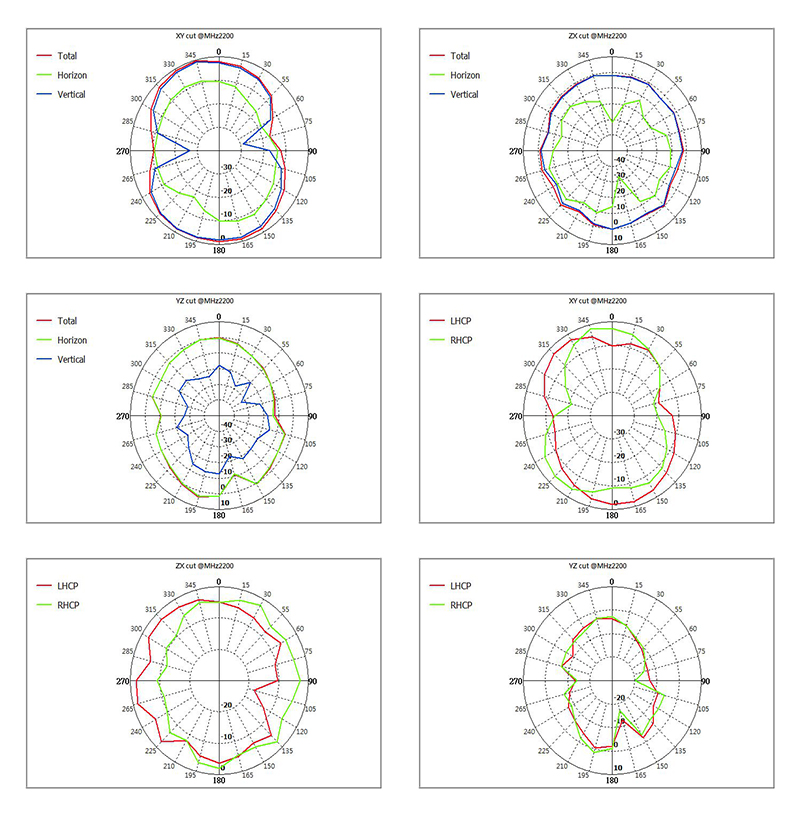

2200Mhz:

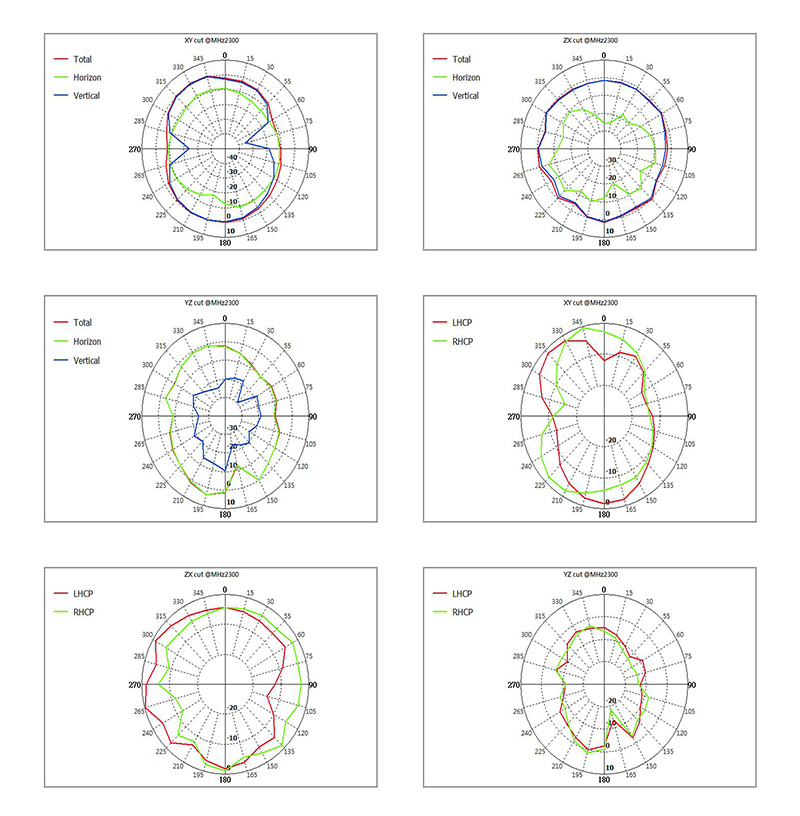

2300Mhz:

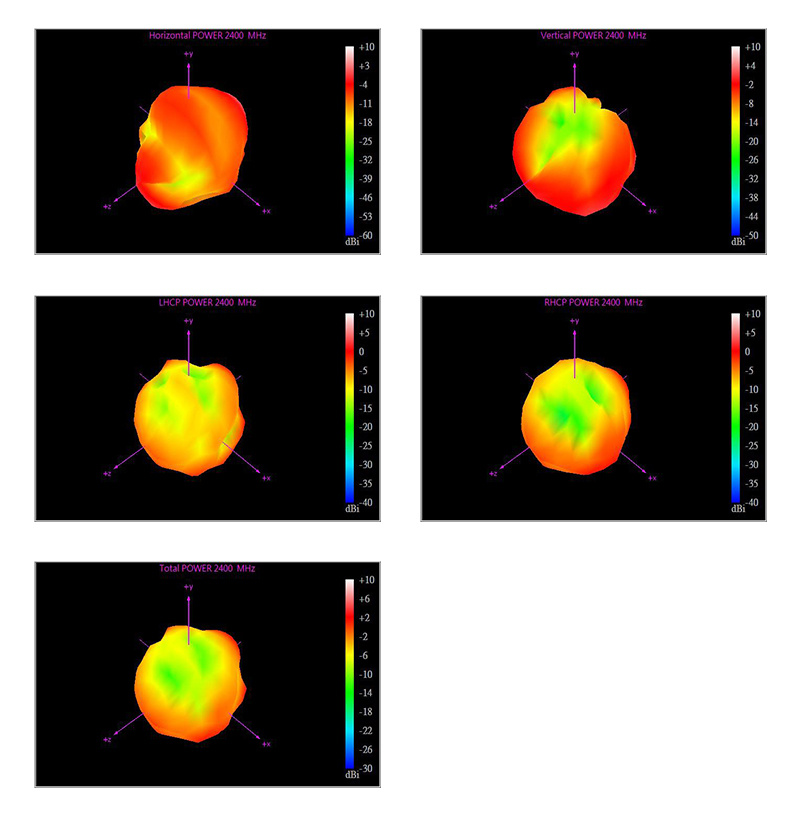

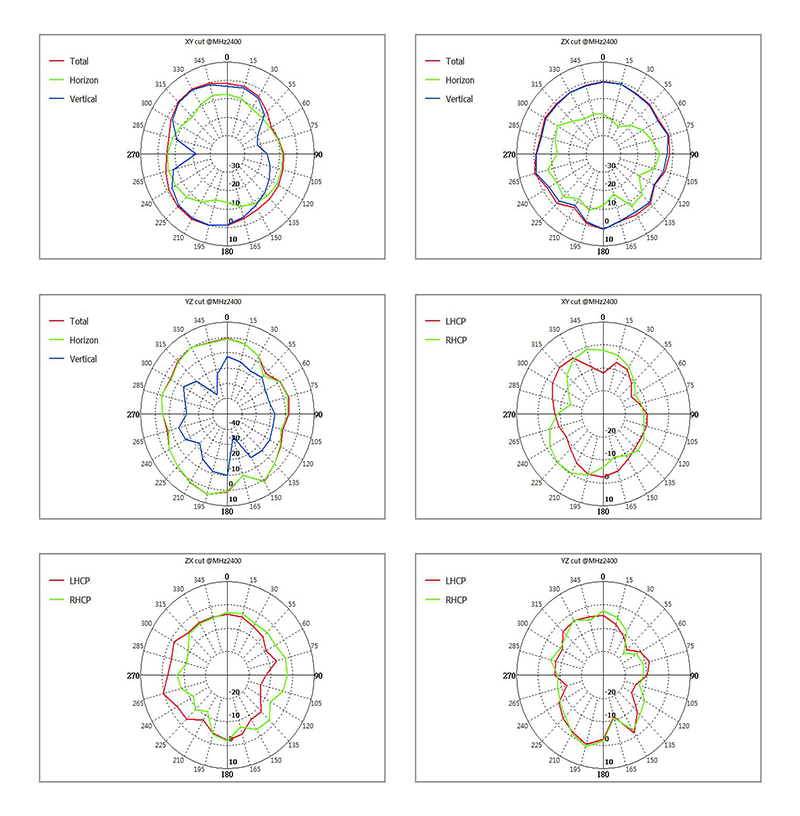

2400Mhz:


2500Mhz:
