| Frequency range |
600-4800MHz |
| Peak Gain |
7 dBi |
| V.S.W.R |
2.0 |
| Impedence |
50 OHMS ±5Ω |
| Connector |
N Type Female |
| Dimension |
25cm(H) |
| Weight |
0.5Kg |
| Polarization |
Vertical |
| Power handling |
100W |
| Lighting Protection |
Direct Ground |
| Horizontal Beam Width |
360º |
| Vertical Beam Width |
25º |
| Radome color |
WHITE or BLACK |
| Radome material |
ABS |
| L-mounting |
Stainless steel |
| Mounting hardware(mm) |
Ø30-Ø50 |
| Rated Wind Velocity(m/s) |
55 |

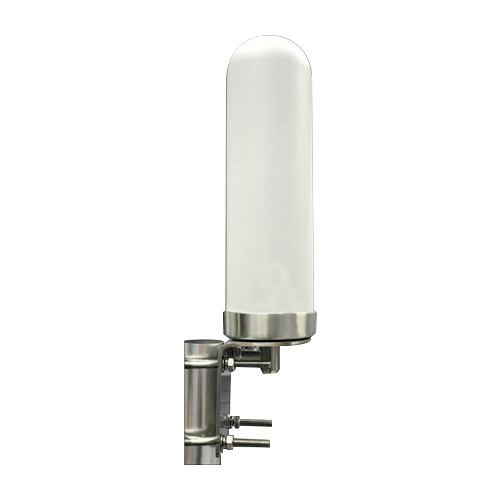

Our SD-1000 is Omni Antenna. It’s suitable for 2G/3G/4G/5G LTE router best for outdoor long-distance communication services, industrial, scientific, and environmental monitoring applications… etc. The ABS tube/ SUS tube/ U-Circlip KIT is to increase the weather resistance reliability of the antenna. Please don’t hesitate to email us if you have any questions.
