TH-2460-SMA(M)
  • Product Description
  • Product Specification

1. GENERAL DESCRIPTION

Model No P/N
TH-2460 TH2460-SMA(M)

Below is a table summarizing the antenna design specification.


1.1 Electrical Properties

Parameter Description
Frequency Band 2.4~6Ghz
Nominal Impedance 50 ohm
Polarization Vertical
Electrical Wave Dipole

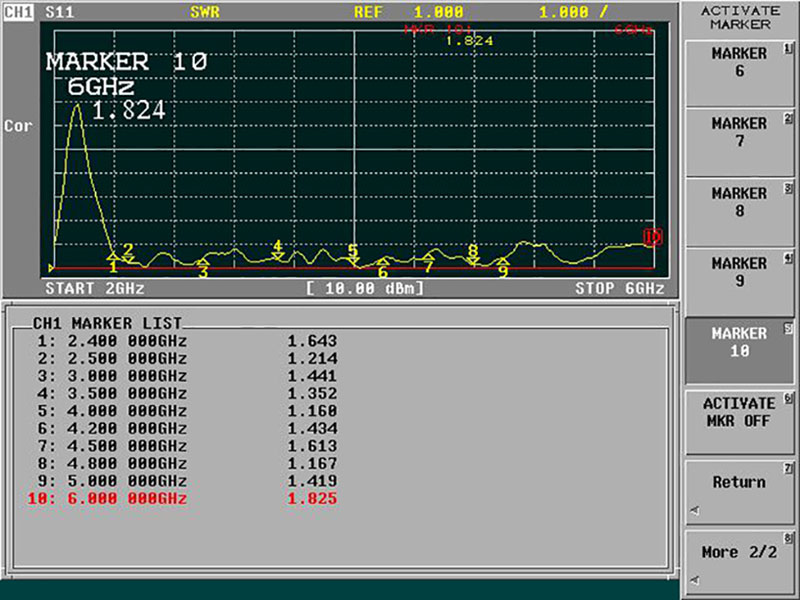

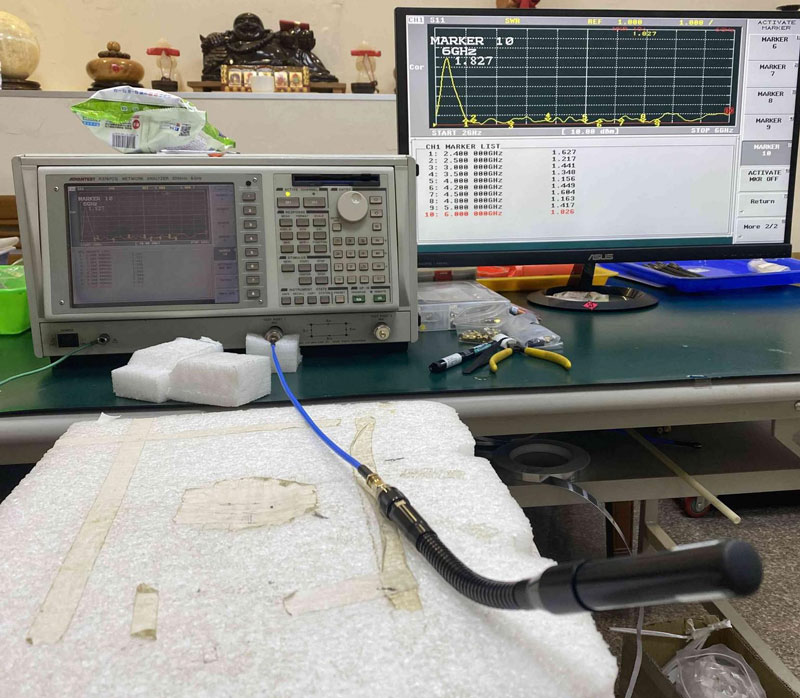

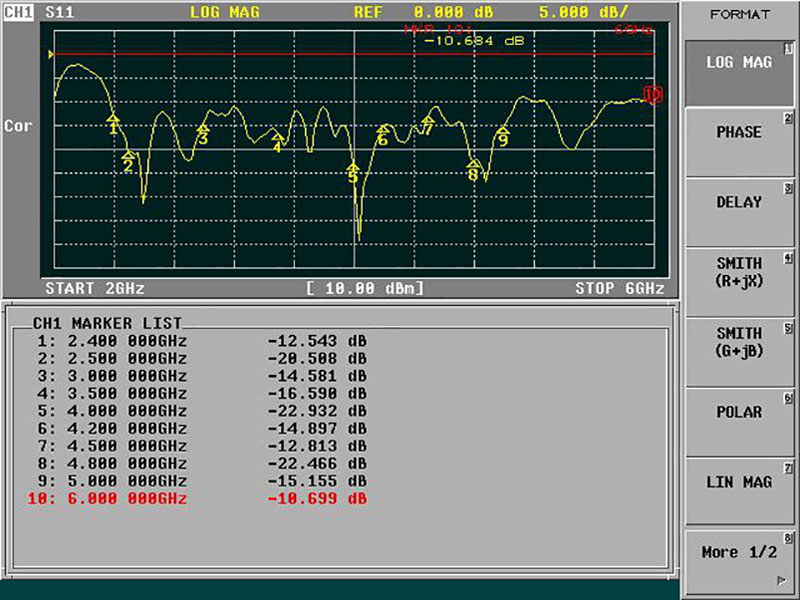

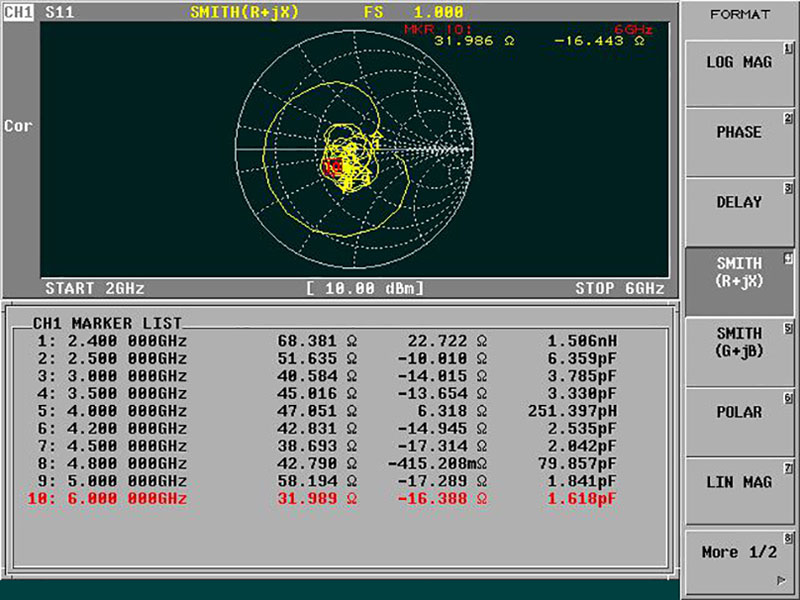

Return Loss Please See Data-1
V.S.W.R 3.0：1
Gain 3db

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Touch Type Screw Type
Connector Type SMA(Male)
Antenna Dimensions 265mm ±15
Antenna Color Black
Operating Temperature Range -40°C~+85°C
Storage Temperature Range -40°C~+85°C

Our TH-2460 is a Passive Antenna. It is the best for long and short distance communication services with 2.4~6GHZ RADIO, RF Transponder, module, technical applications, such as, industrial, scientific, medical, monitoring, data transmission, interference... etc. The gooseneck design allows the antenna to be bent and changed into any angle you wish. The ASA is strong weather resistance and its anti-aging performance is more than 10 times that of ABS. Please don’t hesitate to email us if you have any questions.

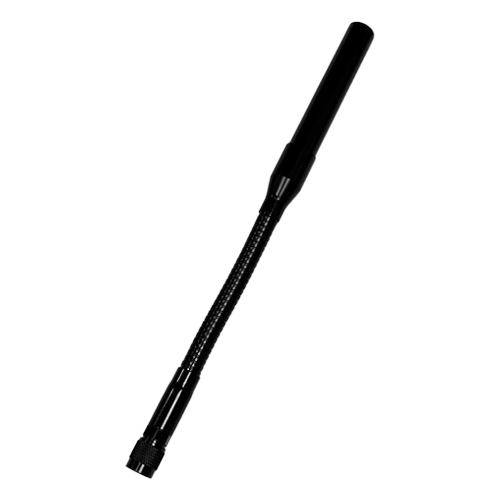

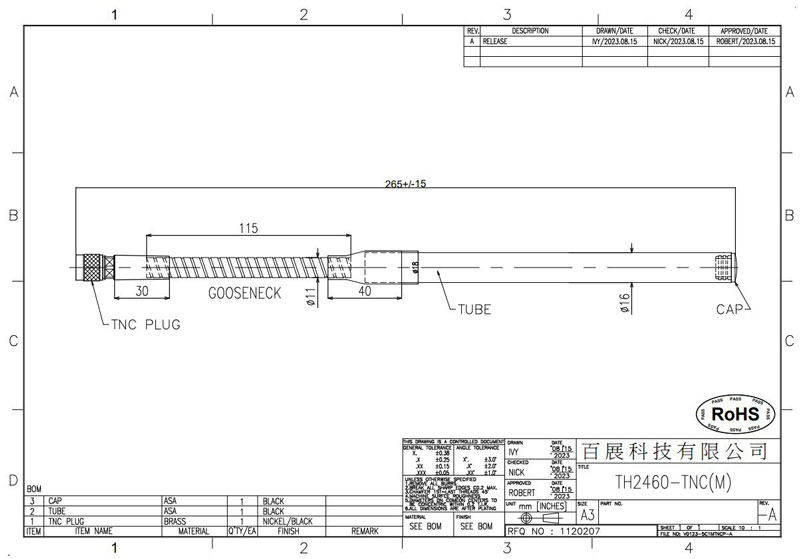

2. Appearance

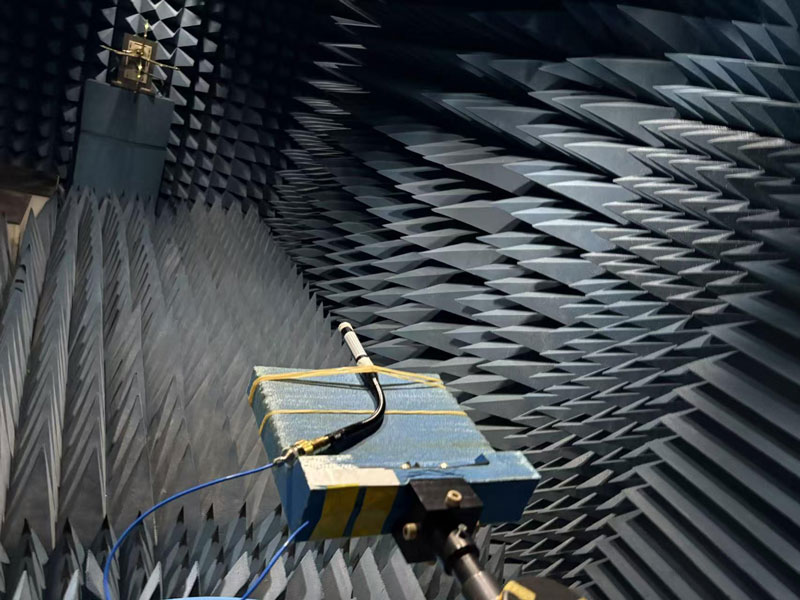

3. Frequency





3D Total

Frequency
(MHz)		 Upper Hem.
PRP (dBm)		 Lower HEM.
PRP (dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain (dBi) Tot. Rad.Pwr.
(dBm)
2300 MHz -8.76 -7.50 -5.07 31.09 -0.01 -5.07
2350 MHz -8.56 -6.55 -4.43 36.08 1.36 -4.43
2400 MHz -7.58 -5.00 -3.09 49.06 2.82 -3.09
2450 MHz -7.25 -4.18 -2.44 57.01 3.59 -2.44
2500 MHz -7.00 -3.76 -2.08 61.98 3.98 -2.08
2600 MHz -8.03 -4.41 -2.84 51.97 3.76 -2.84
2700 MHz -7.16 -5.47 -3.22 47.61 2.49 -3.22
2800 MHz -8.48 -6.49 -4.36 36.62 1.61 -4.36
2900 MHz -6.03 -3.31 -1.45 71.63 4.10 -1.45
3000 MHz -6.30 -3.22 -1.48 71.10 4.74 -1.48
3100 MHz -7.34 -3.77 -2.19 60.46 4.34 -2.19
3200 MHz -8.04 -4.87 -3.16 48.31 2.89 -3.16
3300 MHz -8.55 -5.35 -3.65 43.16 2.91 -3.65
3400 MHz -8.38 -4.67 -3.13 48.66 3.09 -3.13
3500 MHz -7.98 -4.14 -2.63 54.52 3.76 -2.63
3600 MHz -7.85 -3.41 -2.07 62.02 4.80 -2.07
3700 MHz -8.93 -4.01 -2.80 52.53 3.62 -2.80
3800 MHz -9.26 -3.93 -2.82 52.29 4.15 -2.82
3900 MHz -8.96 -3.97 -2.77 52.83 3.85 -2.77
4000 MHz -5.88 -0.27 -2.79 52.60 8.28 0.79
4100 MHz -7.49 -2.05 -2.96 50.58 6.42 -0.96
4200 MHz -7.02 -2.33 -1.06 78.29 5.88 -1.06
4300 MHz -5.55 0.56 -2.51 56.10 9.63 1.51
4400 MHz -10.98 -4.95 -3.99 39.94 3.86 -3.99
4500 MHz -12.33 -6.59 -5.56 27.78 3.15 -5.56
4600 MHz -10.98 -5.16 -4.15 38.43 3.63 -4.15
4700 MHz -14.09 -8.11 -4.13 38.64 2.14 -7.13
4800 MHz -11.17 -4.56 -3.70 42.67 4.78 -3.70
4900 MHz -11.65 -5.00 -4.15 38.49 4.00 -4.15
5000 MHz -13.45 -7.15 -4.23 37.76 2.03 -6.23
5100 MHz -13.14 -7.51 -4.46 35.81 1.15 -6.46
5200 MHz -9.75 -5.56 -4.16 38.40 4.76 -4.16
5300 MHz -9.61 -5.18 -3.84 41.28 4.02 -3.84
5400 MHz -8.57 -4.40 -3.00 50.16 5.66 -3.00
5500 MHz -7.68 -4.40 -2.73 53.39 5.82 -2.73
5600 MHz -7.09 -4.73 -2.74 53.15 4.85 -2.74
5700 MHz -6.97 -5.49 -3.16 48.31 4.93 -3.16
5800 MHz -7.02 -6.28 -3.62 43.41 3.56 -3.62
5900 MHz -6.57 -6.64 -3.59 43.72 3.96 -3.59
6000 MHz -6.02 -6.32 -3.15 48.37 2.82 -3.15
6100 MHz -5.96 -6.94 -3.41 45.60 2.22 -3.41
6200 MHz -6.30 -7.41 -3.81 41.62 0.74 -3.81
6300 MHz -5.26 -6.10 -2.65 54.35 2.69 -2.65
6400 MHz -5.20 -7.05 -3.02 49.94 1.29 -3.02
6500 MHz -4.84 -7.04 -2.79 52.56 2.84 -2.79
6600 MHz -4.65 -7.56 -2.85 51.84 3.36 -2.85
6700 MHz -4.12 -7.27 -2.40 57.48 2.02 -2.40
6800 MHz -3.24 -6.27 -1.49 71.00 3.51 -1.49
6900 MHz -4.46 -7.22 -2.61 54.77 1.66 -2.61
7000 MHz -6.62 -8.85 -4.58 34.79 2.86 -4.58
7100 MHz -6.55 -9.30 -4.70 33.89 1.10 -4.70
7125 MHz -6.30 -9.98 -4.75 33.52 2.29 -4.75
7200 MHz -5.89 -9.76 -4.40 36.31 1.58 -4.40
7300 MHz -5.83 -9.08 -4.05 39.36 10.37 4.05

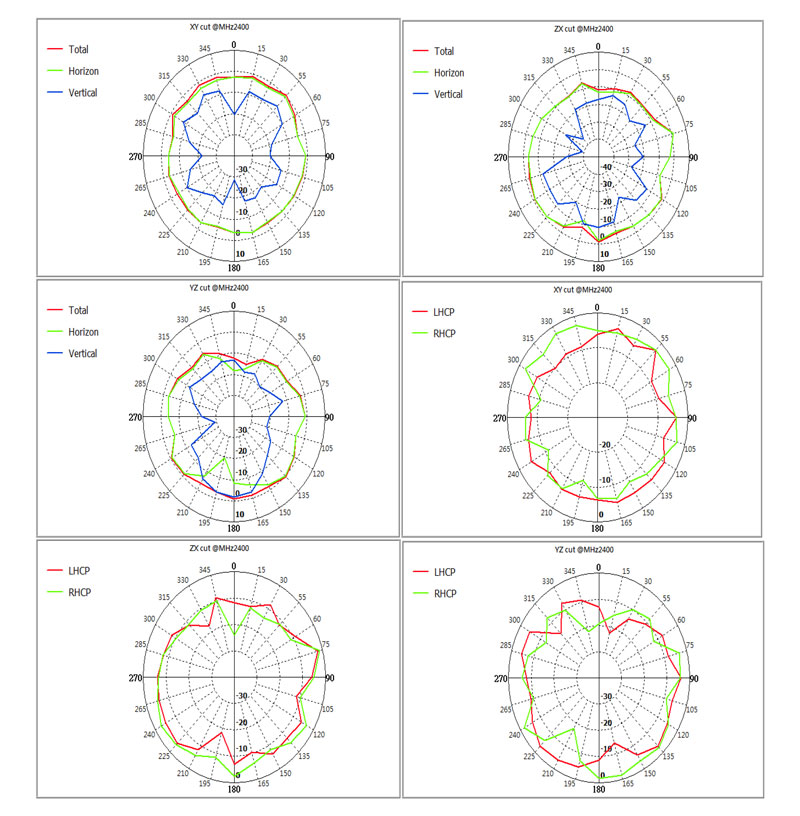

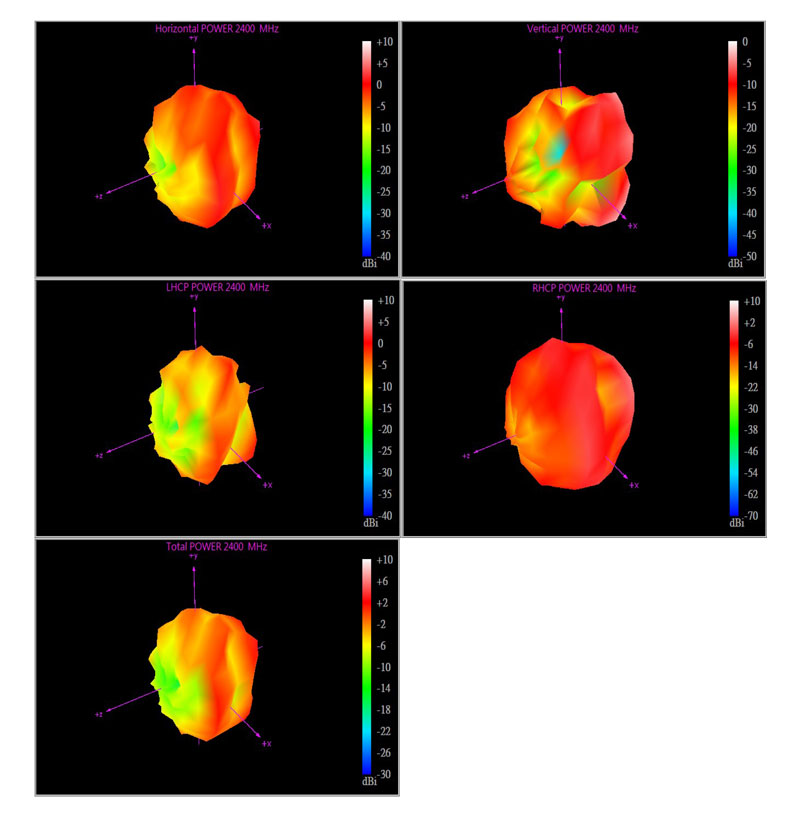

2400Mhz:

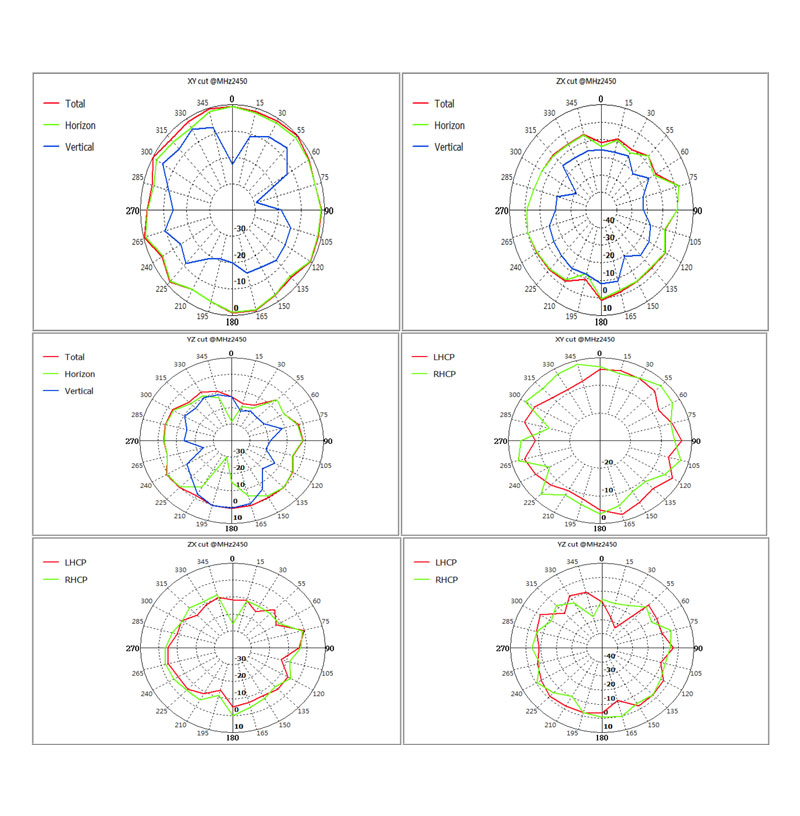

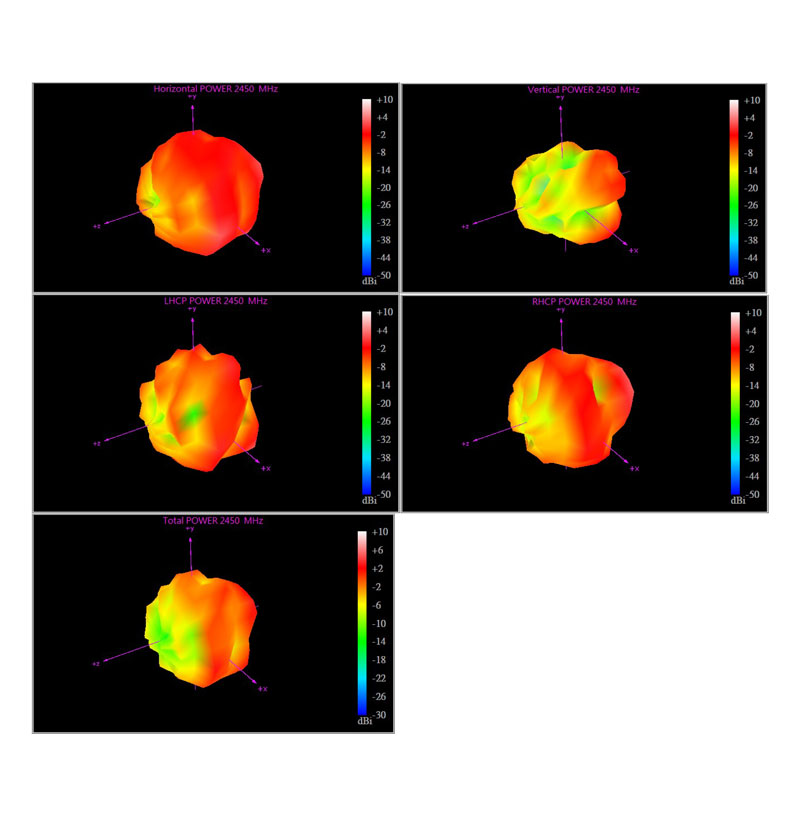

2450Mhz:

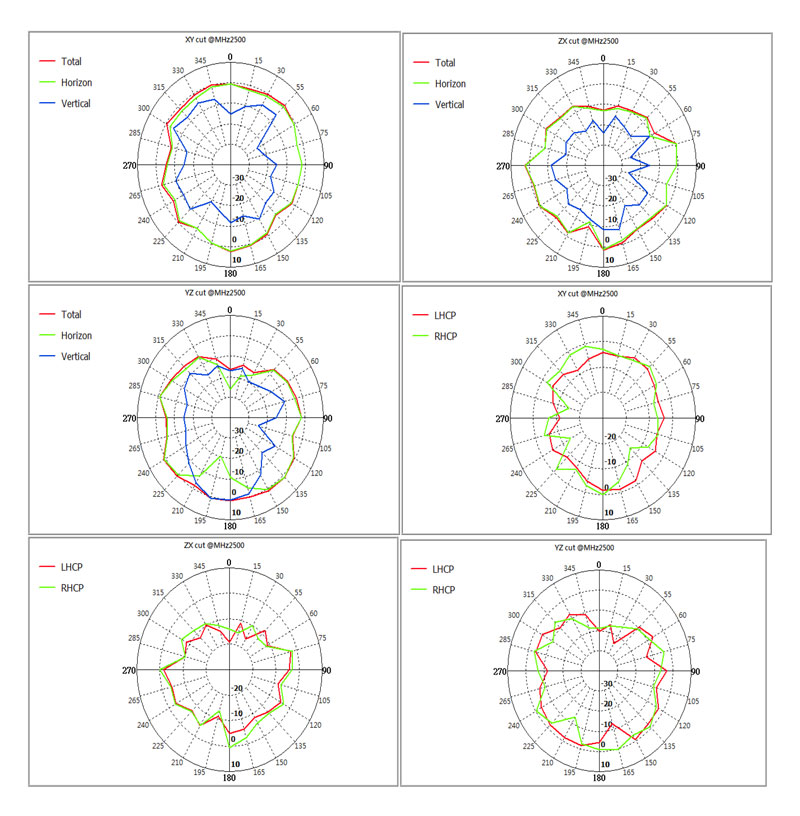

2500Mhz:

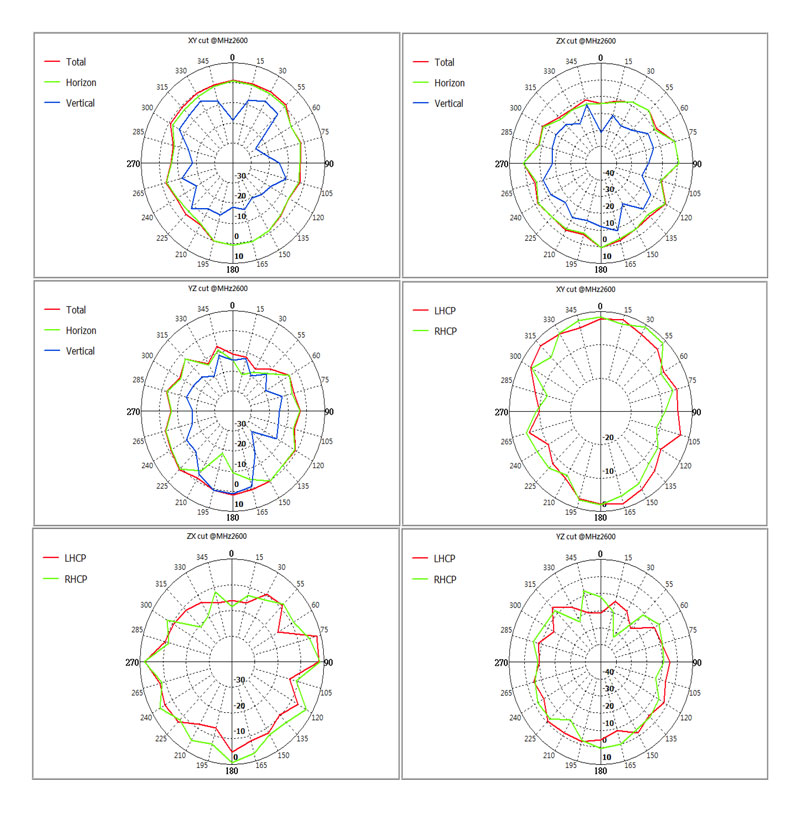

2600Mhz:

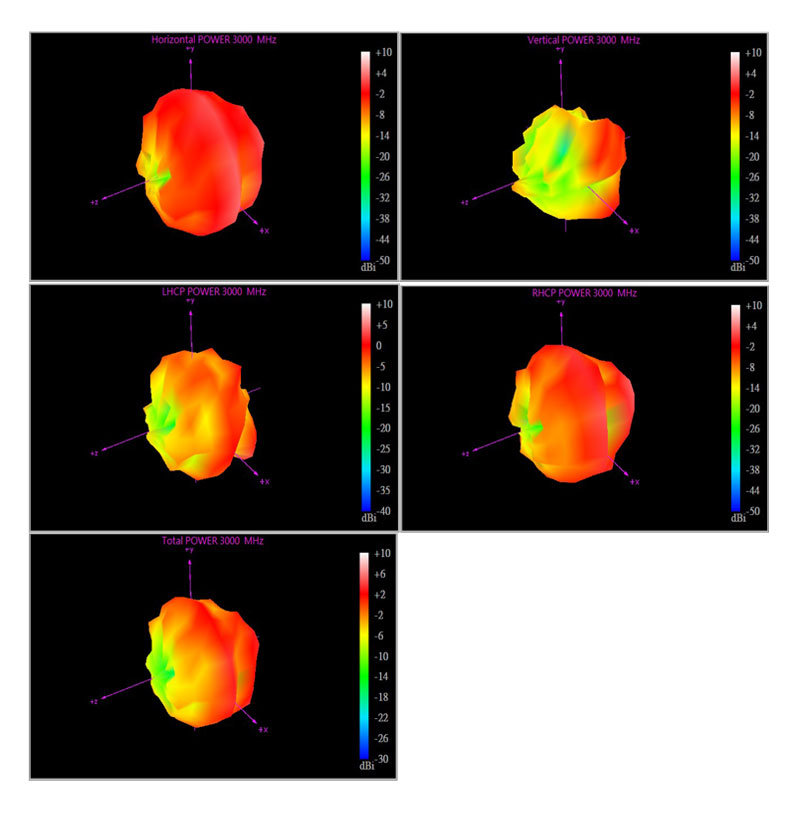

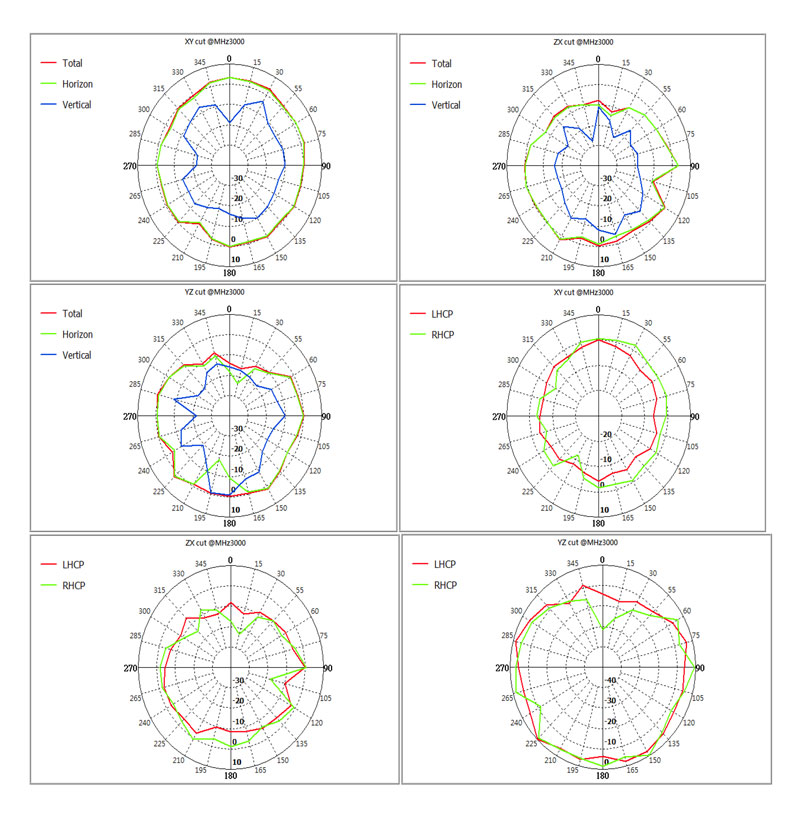

3000Mhz:

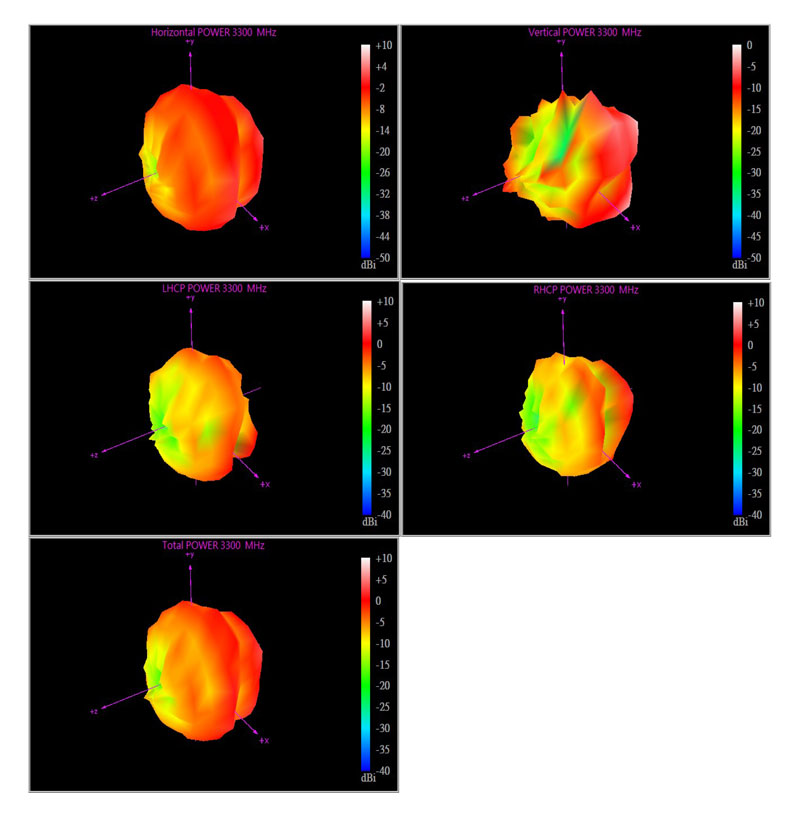

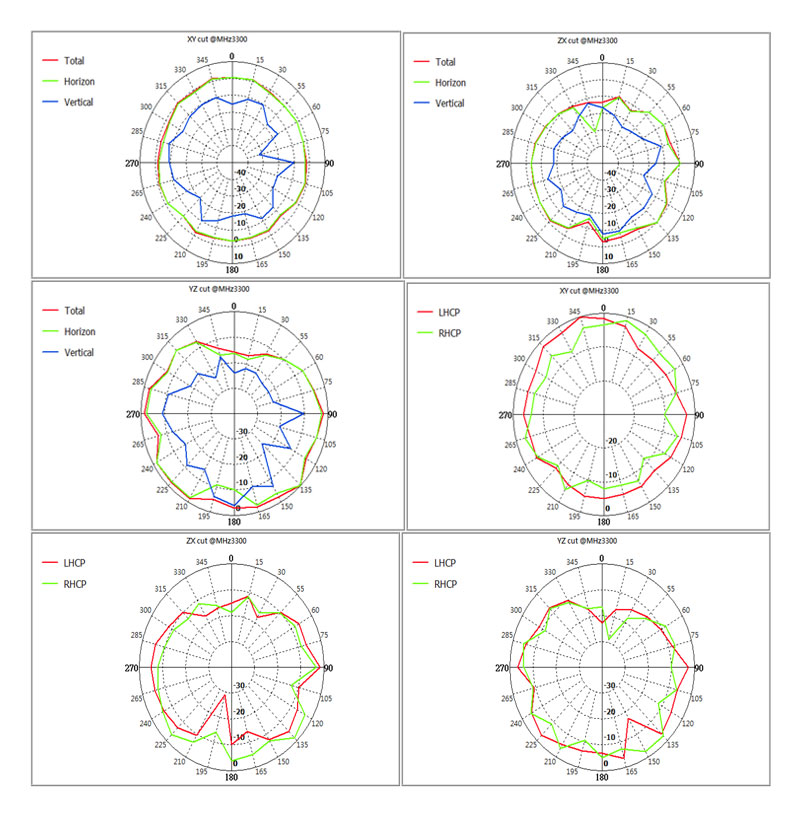

3300Mhz:

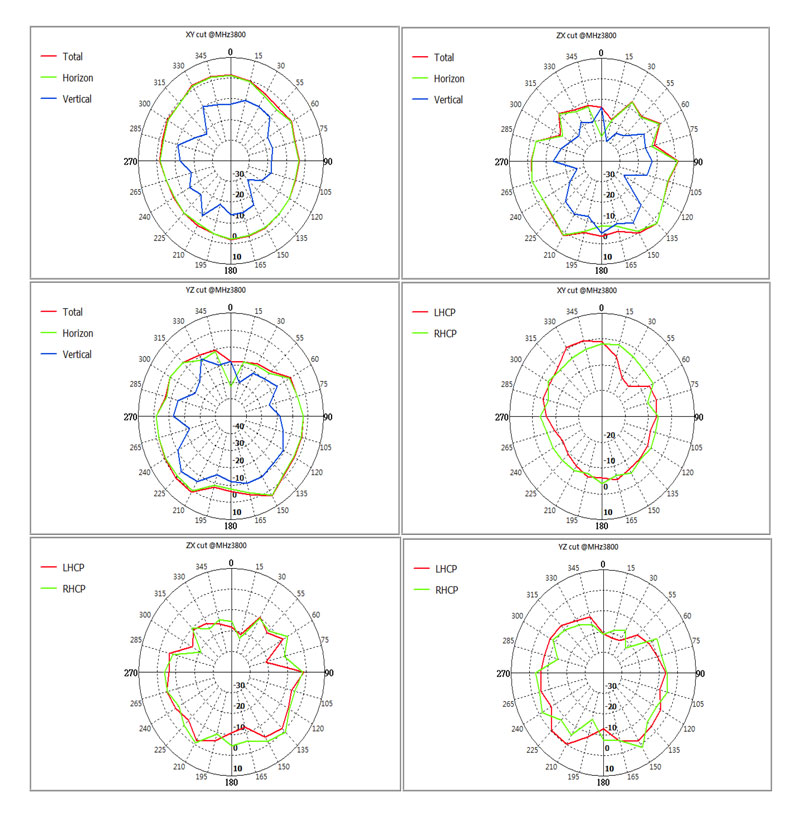

3800Mhz:

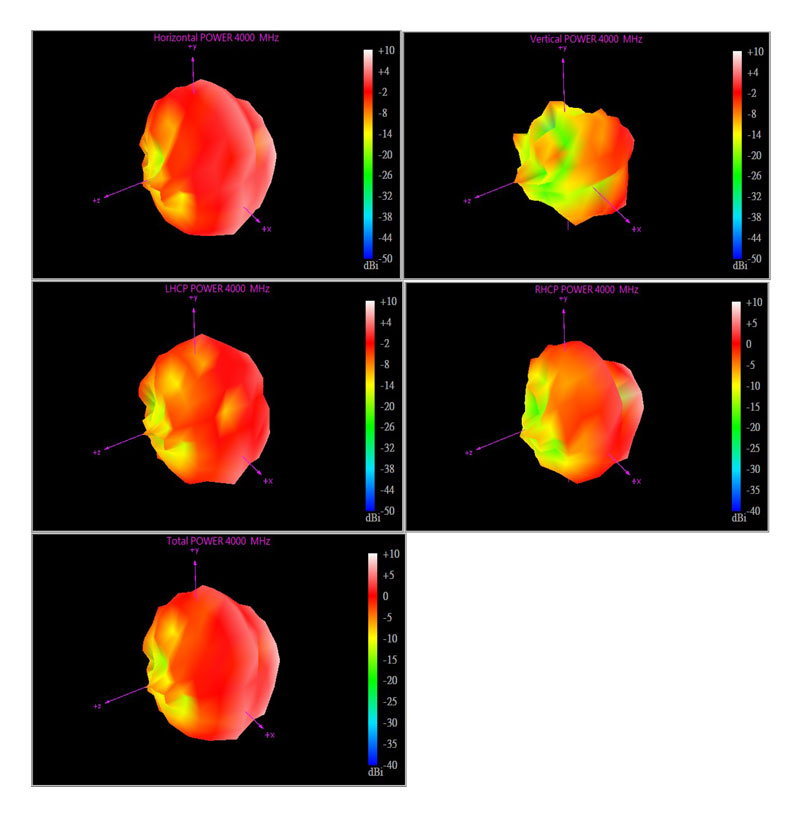

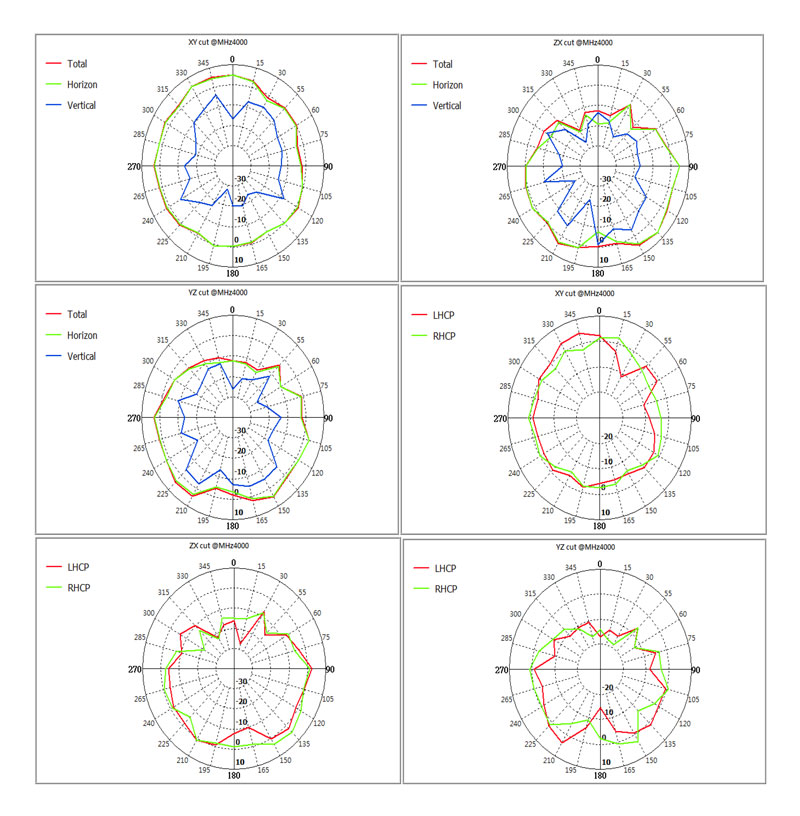

4000Mhz:

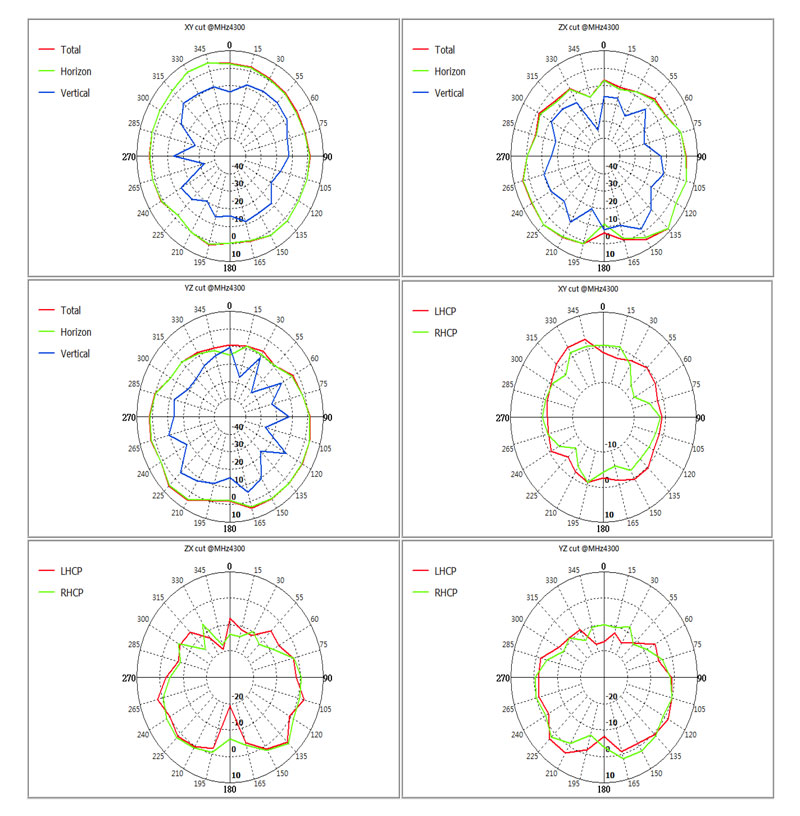

4300Mhz:

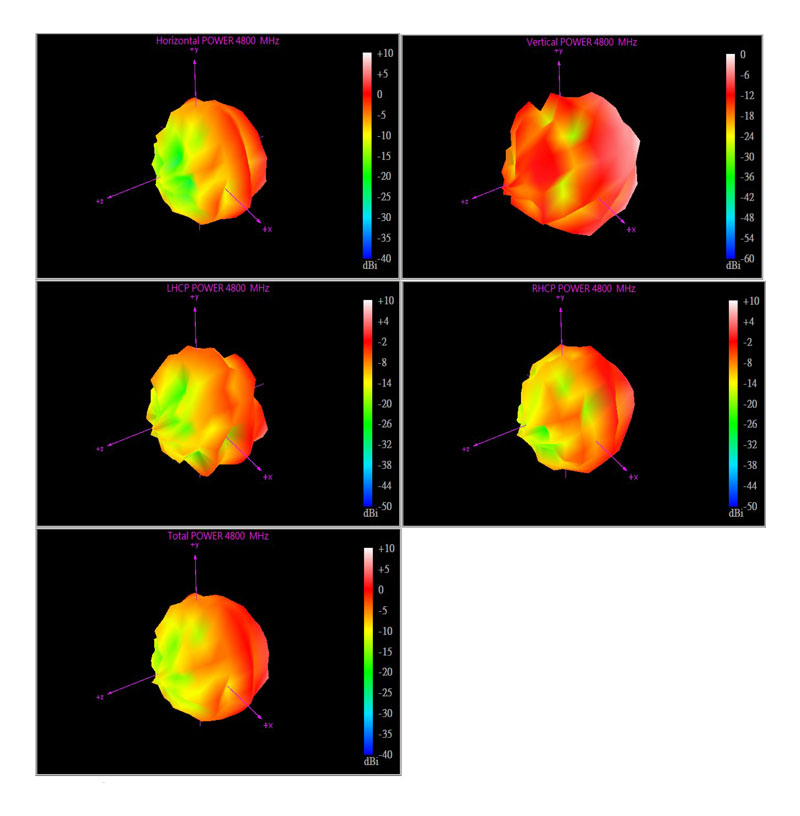

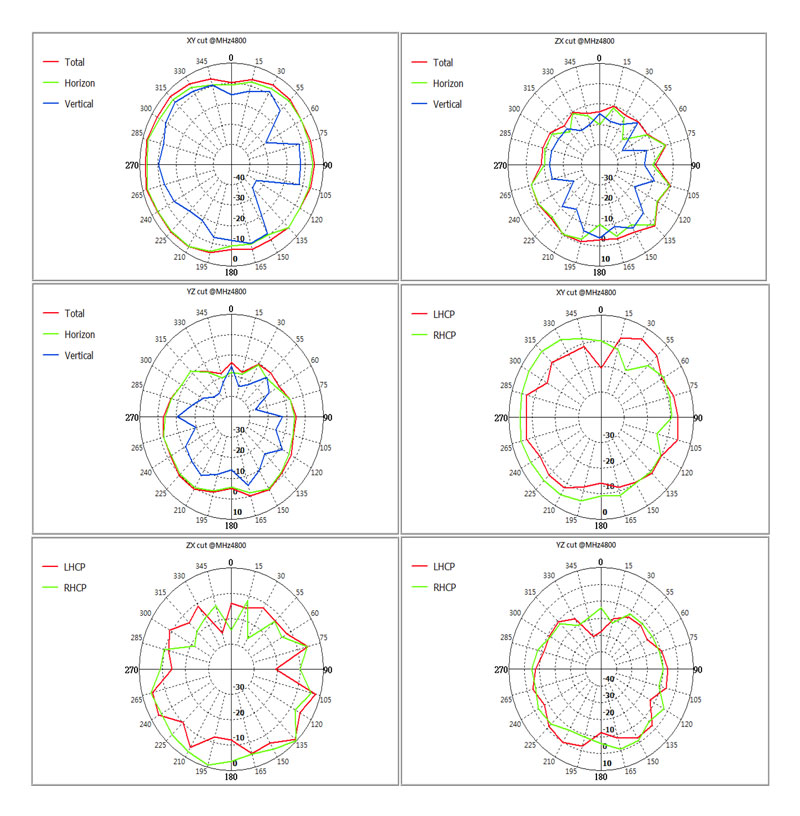

4800Mhz:

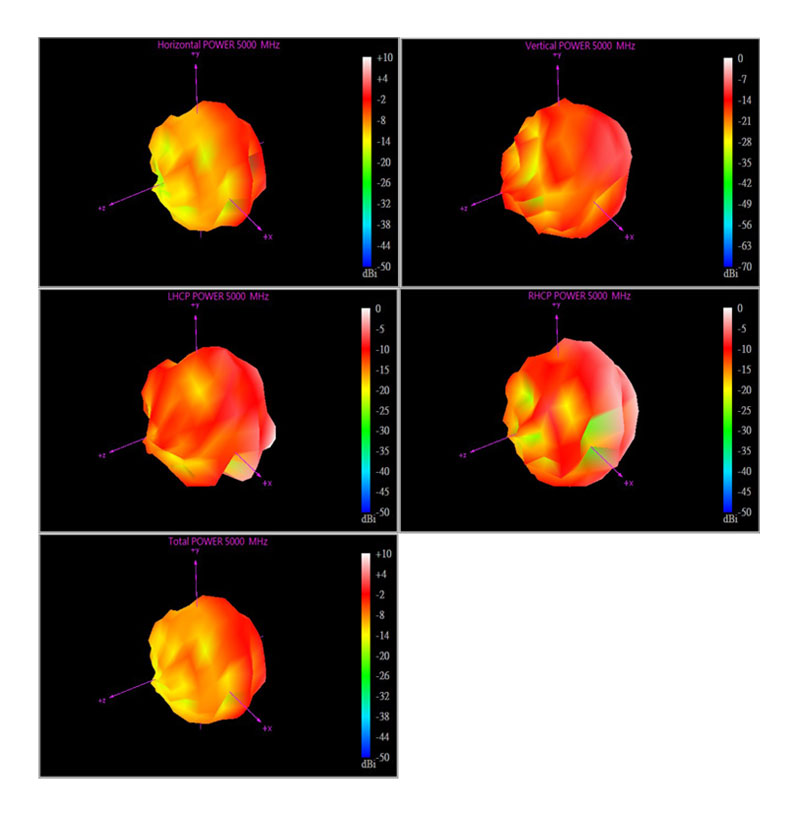

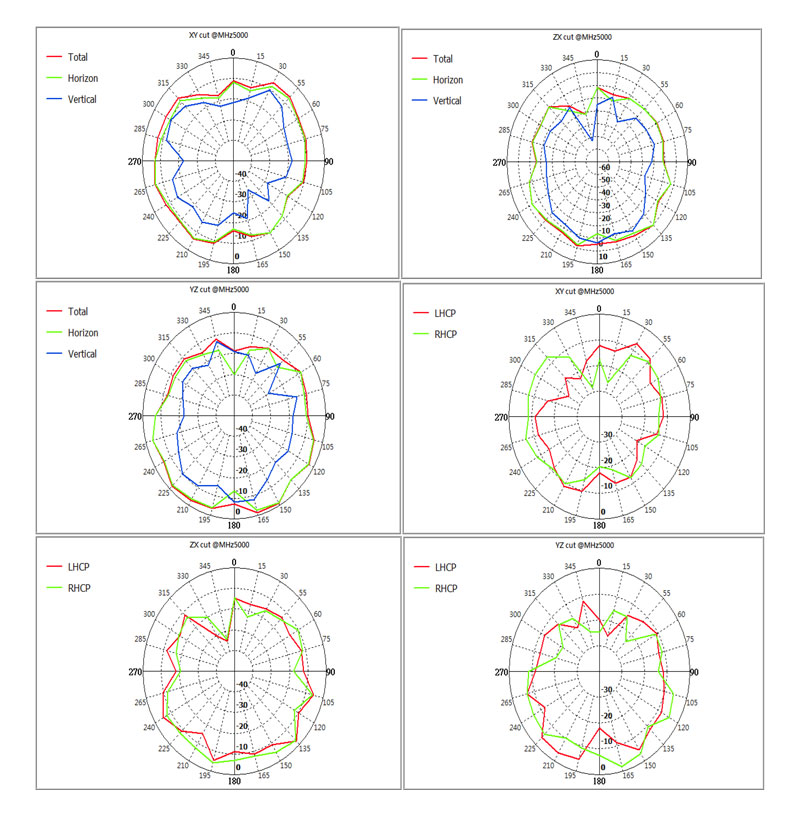

5000Mhz:

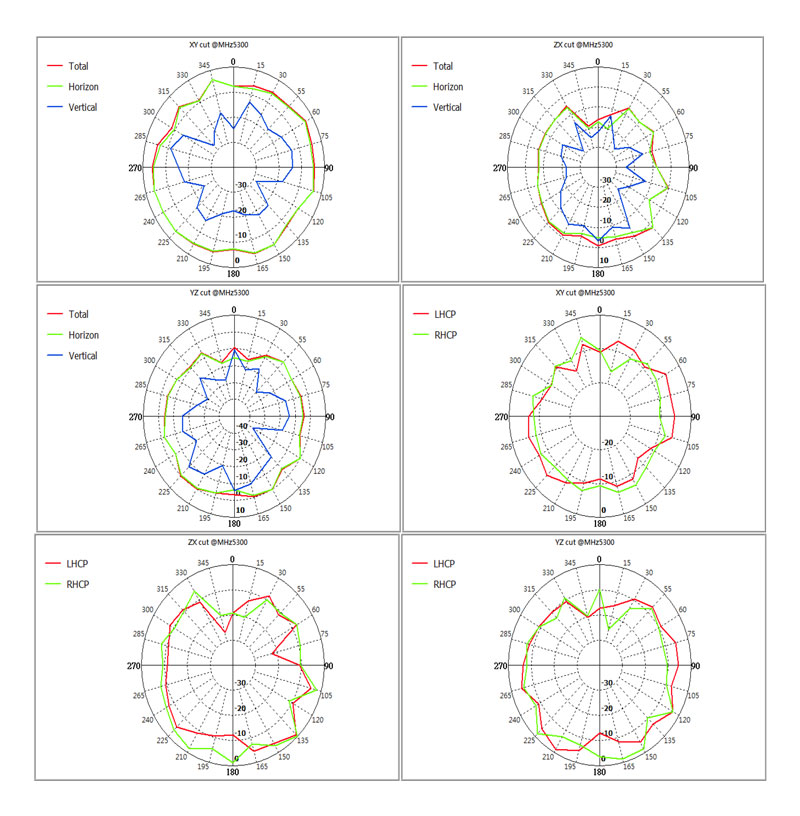

5300Mhz:

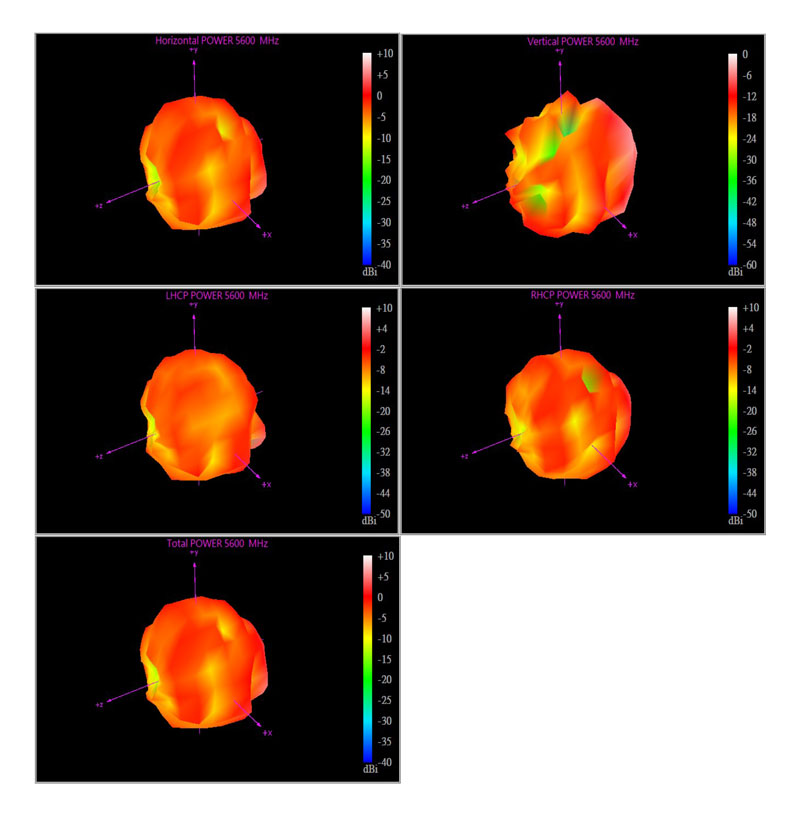

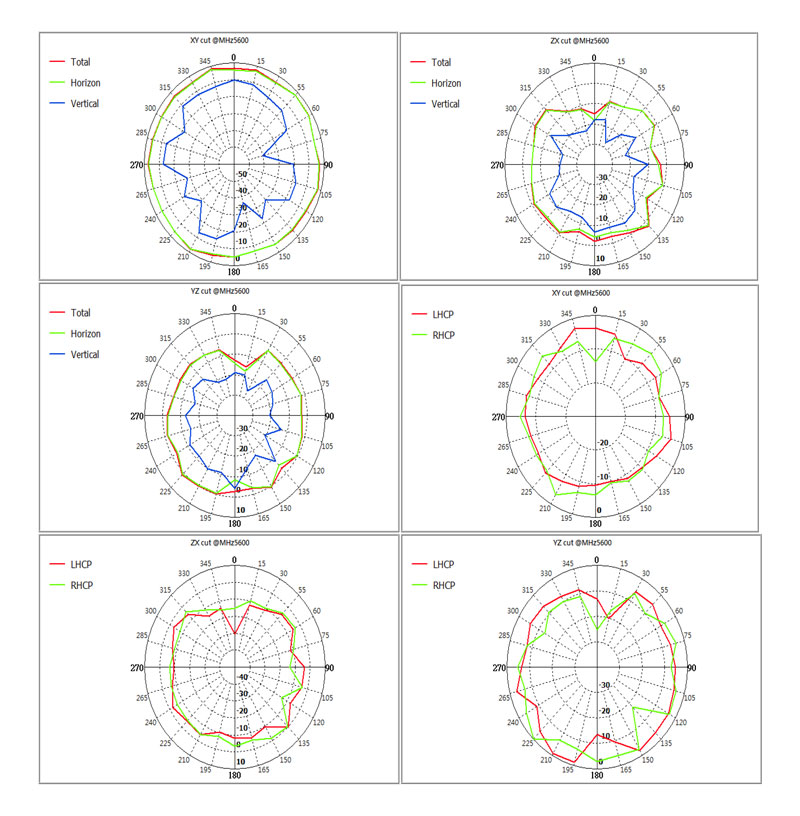

5600Mhz:

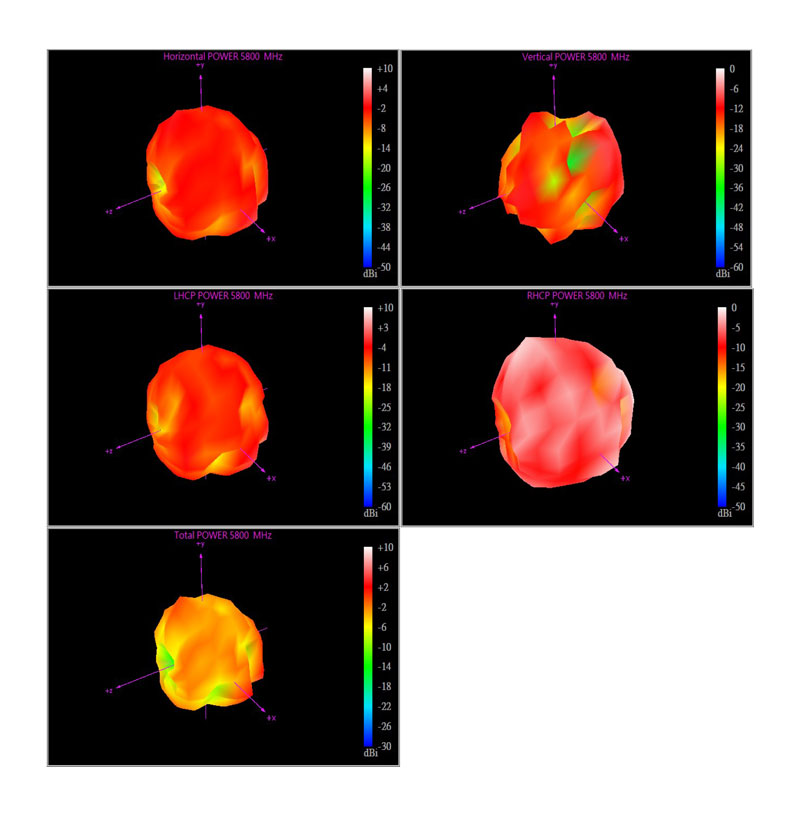

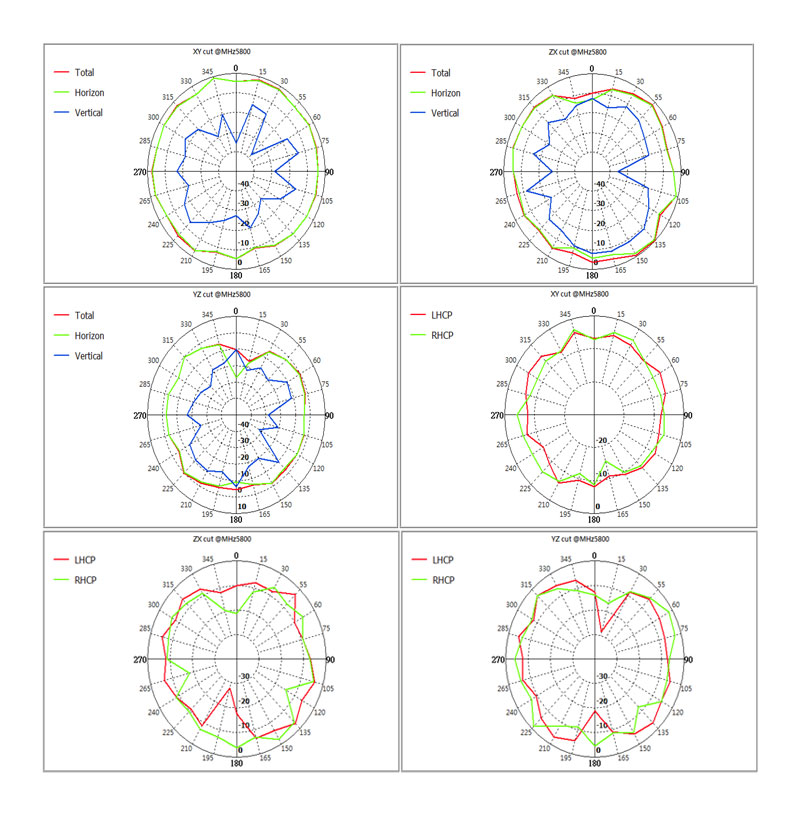

5800Mhz:

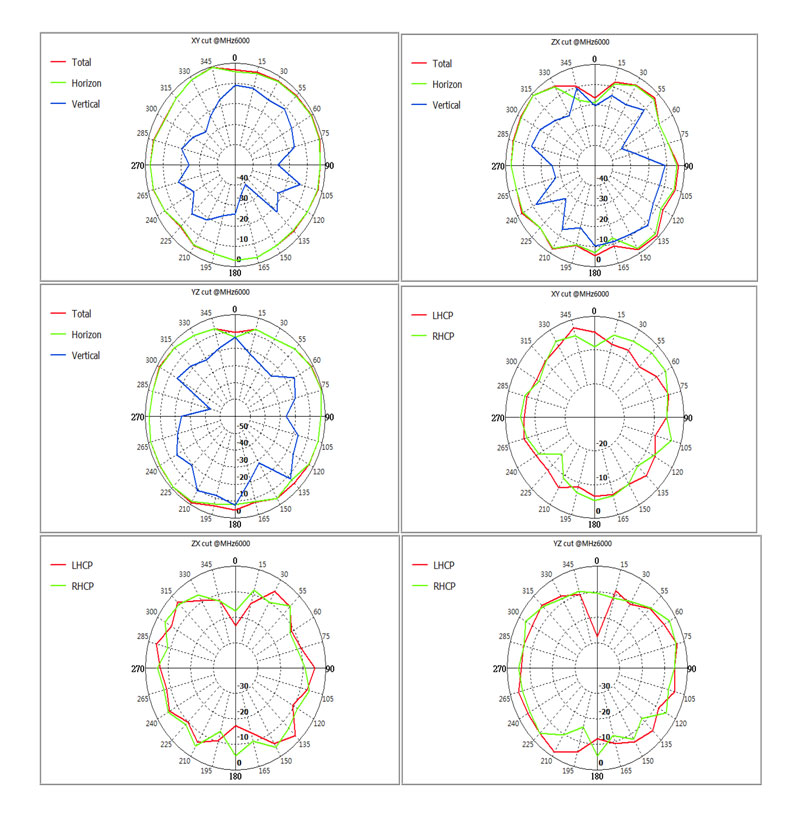

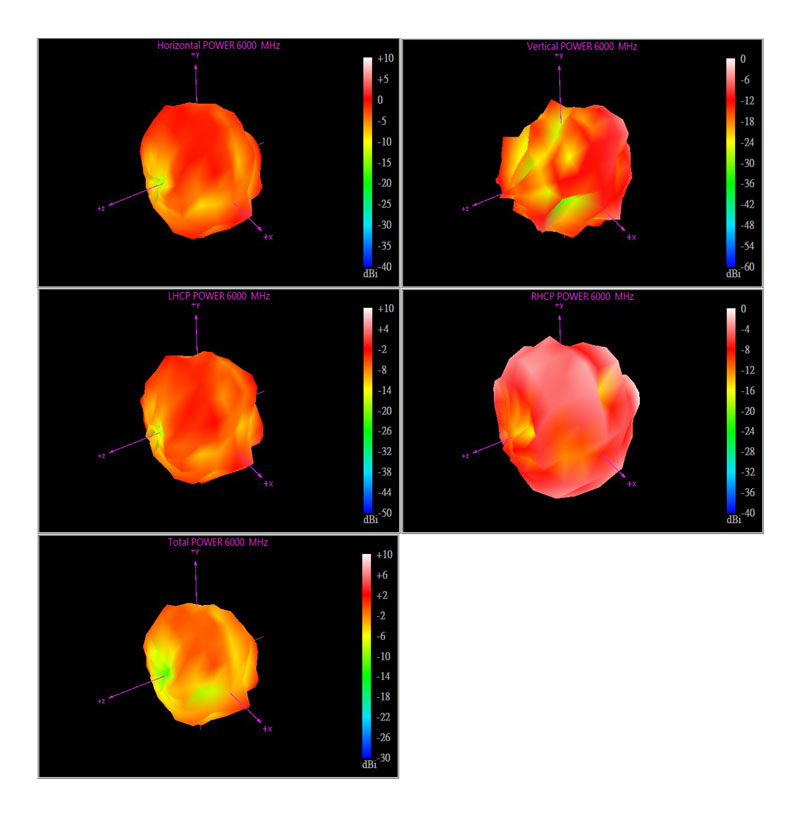

6000Mhz:
