1.GENERAL DESCRIPTION
1.1 Electrical Properties
| Parameter |
Description |
| Frequency Band |
2.2~2.4GHz |

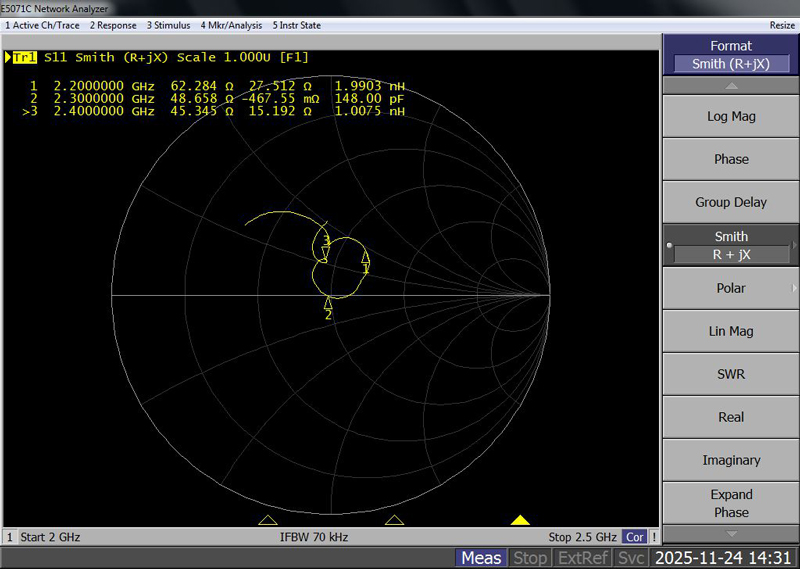

| Nominal Impedance |
50 ohm |
| Polarization |
Vertical |

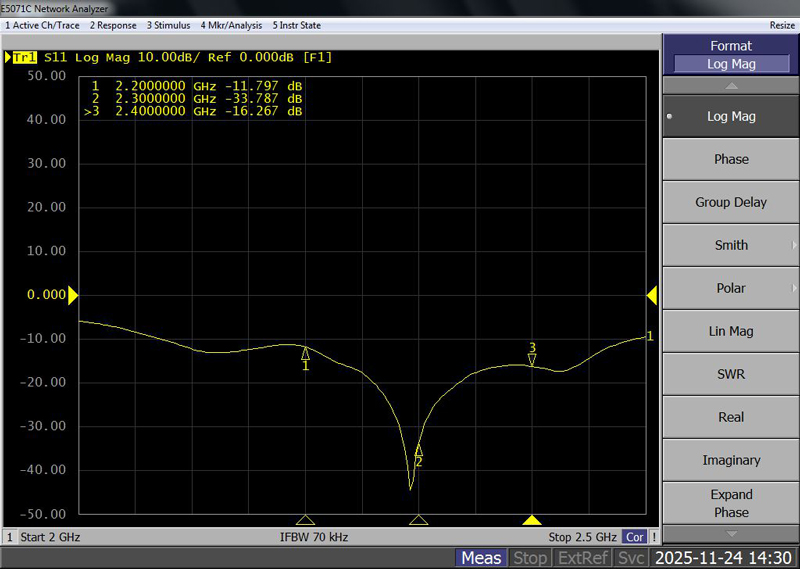

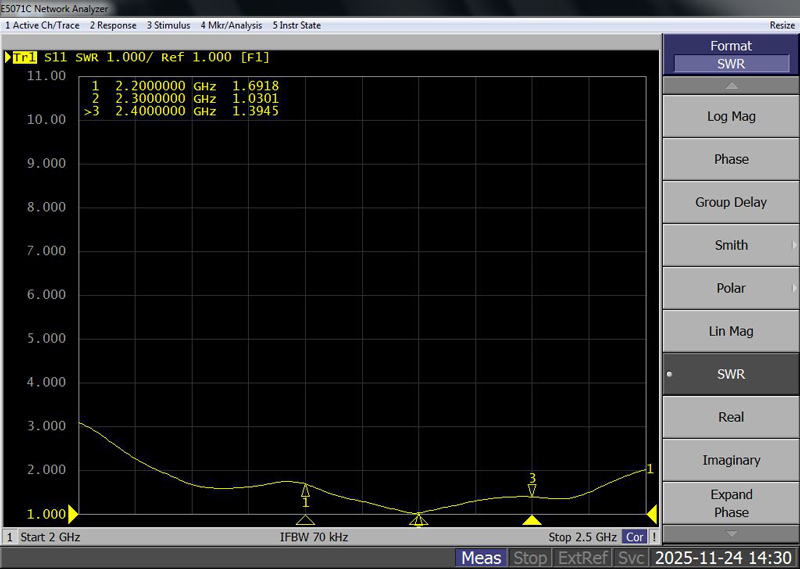

| V.S.W.R |
2.0:1 |
| Gain |
3db |

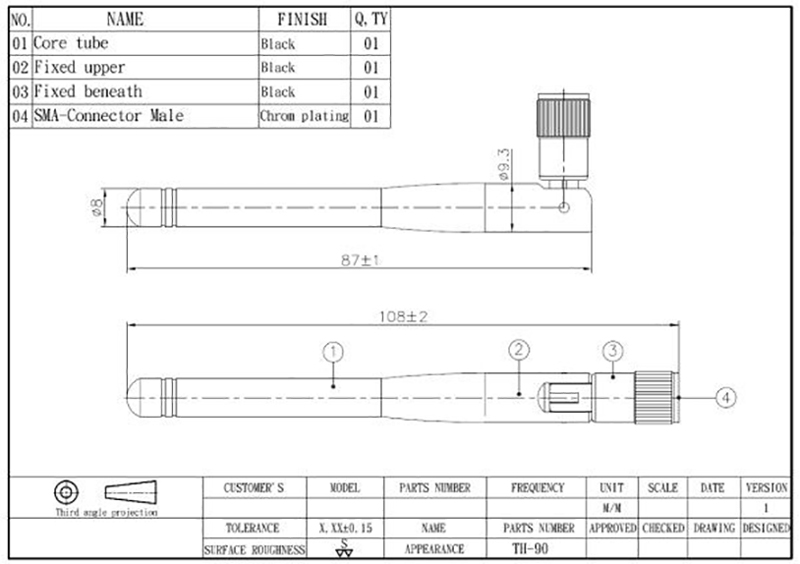

1.2 Mechanical Properties
| Parameter |
Description |

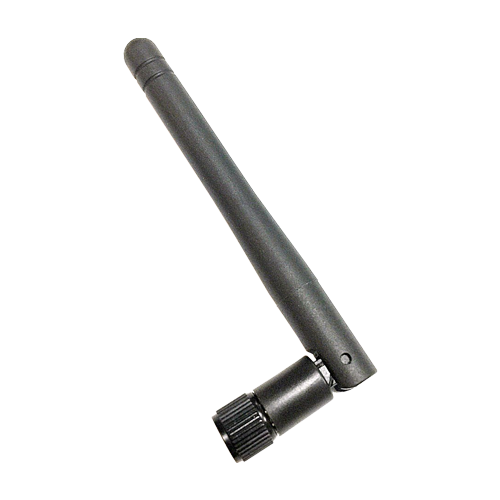

| Antenna Type |
External Antenna |
| Antenna Cover |
ABS+TPU |
| Touch Type |
Screw Type |
| Connector Type |
SMA 180°(Male) |
| Antenna Dimensions |
108mm±2 |
| Antenna Color |
Black |
| Operating Temperature Range |
-30°C~+70°C |
| Storage Temperature Range |
-30°C~+70°C |
