1.GENERAL DESCRIPTION
| Model No |

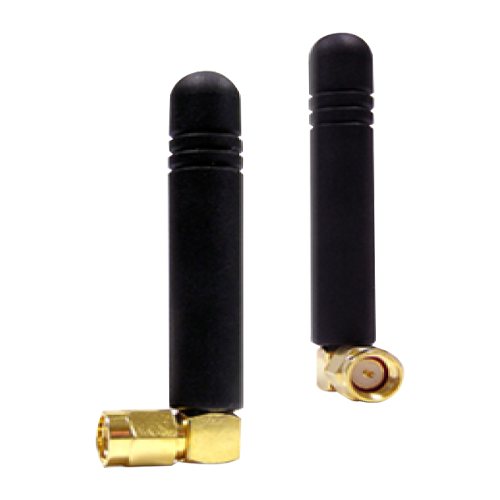

| TH80-SMA90(M)-2.25G |
Below is a table summarizing the antenna design specification.
1.1 Electrica Properties
| Parameter |
Description |
| Frequency Band |
2.2 ~2.3GHz |
| Nominal Impedance |
50 ohm |
| Polarization |
Vertical / monopole |
| Electrical Wave |
Dipole |
| Return Loss |
Please See Data-1 |
| V.S.W.R |
2.0:1 |
| Gain |
1db |
1.2 Mechanical Properties
| Parameter |
Description |
| Antenna Type |
TPU |
| Touch Type |
Screw Type |
| Connector Type |
SMA 90˚(Male) |
| Antenna Dimensions |
57mm ± 2 |
| Antenna Color |
Black |
| Operating Temperature Range |
-30˚C~+70˚C |
| Storage Temperature Range |
-30˚C~+70˚C |
