1.1 Electrical Properties
| Parameter |
Description |
| Frequency Band |
2215-2315Mhz |
| Nominal Impedance |
50 ohm |
| Polarization |
Vertical |
| Electrical Wave |
Dipole |

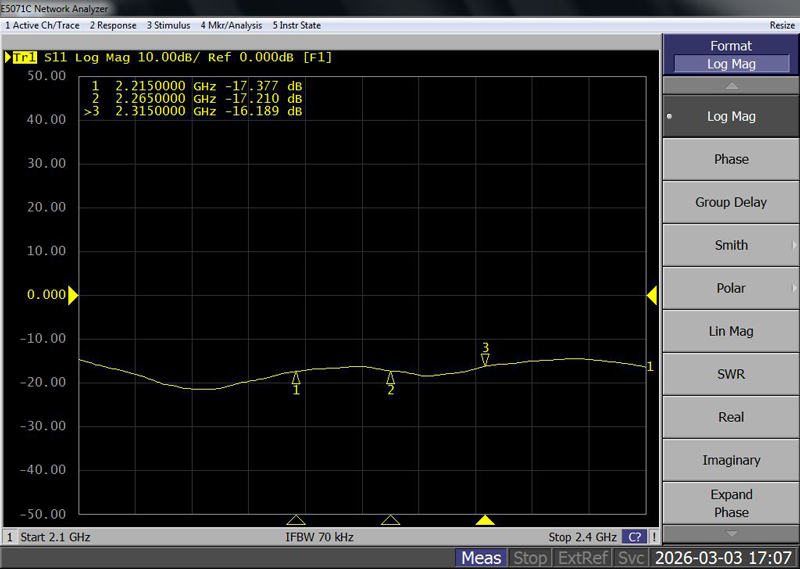

| Return Loss |
Please See Data-1 |

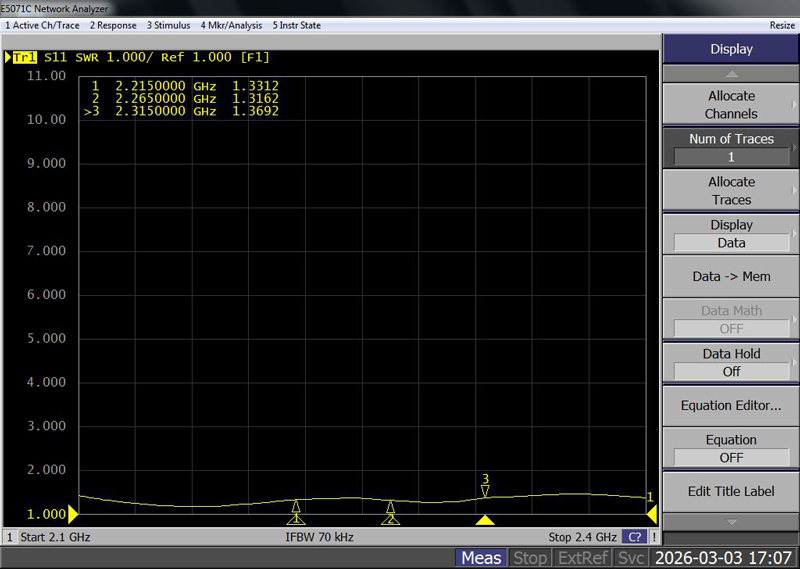

| V.S.W.R |
2.0:1 |
| Antenna Peak Gain |
3dBi |
2. Mechanical Properties
| Parameter |
Description |
| Antenna Type |
External Antenna |
| Connector Type |
SMA(M) |
| Antenna Dimensions |
205 mm ± 3 |
| Antenna Color |
ASA-UV-Black |
| Operating Temperature Range |
-40°C~+80°C |
| Storage Temperature Range |
-40°C~+80°C |
| Waterproof |
IPX7 |
