FA-38 Car FM Antenna

FA-38

詢價

下載

  • 產品敘述
  • 產品規格

100% waterproof IPX8





Physical Condition

Construction Polycarbonate- radome at top, die-cast shell at bottom/ rubber gasket for water seal in between
Dimension 40.5mm (L) x 38mm (W) x 12.3mm (H)
Weight 50 grams (excluding cable & connector)
Standard Mounting Magnet mount with two magnets & screw mount
Optional Mounting Plate customized metal sheet
Environmental Conditions
Operation temperature -40oC to +85oC
Storage temperature -40oC to +100oC
Relative Humidity 95% non-condensing
Cable & Connector
Cable 5 meter RG174/U (standard) cable, other length available
Pulling Strength 6 Kg @ 5sec with molded plastics on connector end for strain relief
Connector Available BNC,TNC,FME (to be adapted), GT5, MCX (OSX), SMA, SMB or SMC in straight or right angle
Optional Adapters Universal Connector Adapter (FME to TNC/BNC/SMA/SMB/MCX)
Antenna Element
Center Frequency 88~108Mhz
Gain 0dbi

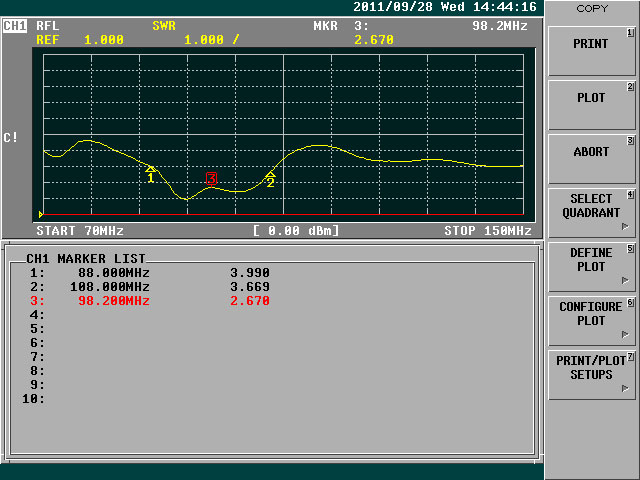

VSWR 4.0:1

* This specification is subject to change without prior notice
