Model No: TH81-SMA(M)-5.8G

Electrical Properties

Parameter Description
Frequency Band 4.9 ~6GHz
Nominal Impedance 50 ohm
Polarization Vertical

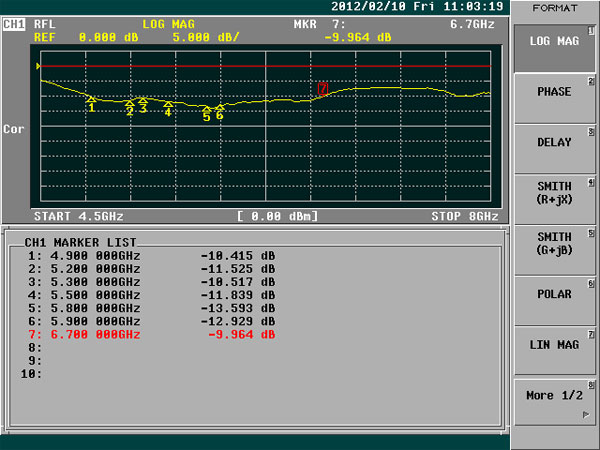

Return Loss Please See Data-1

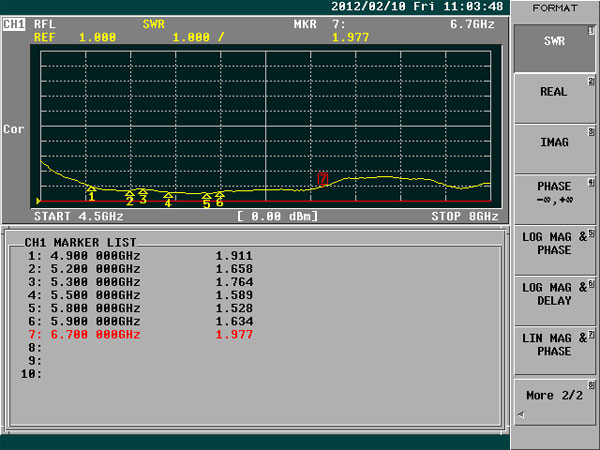

V.S.W.R 2.0:1
Gain 1db
Note: Gain includes the cable loss

Mechanical Properties

Parameter Description
Antenna Type External Antenna
Antenna Material TPU
Touch Type Screw Type
Connector Type SMA 180°(Male)

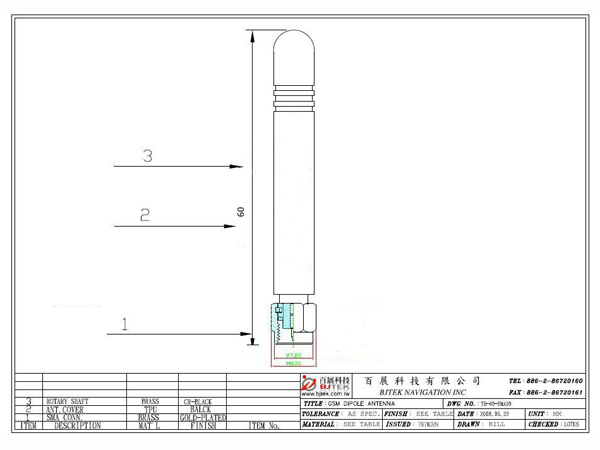

Antenna Dimensions 60mm ±2
Antenna Color Black
Operating Temperature Range -20°C~+60°C
Storage Temperature Range -30°C~+70°C

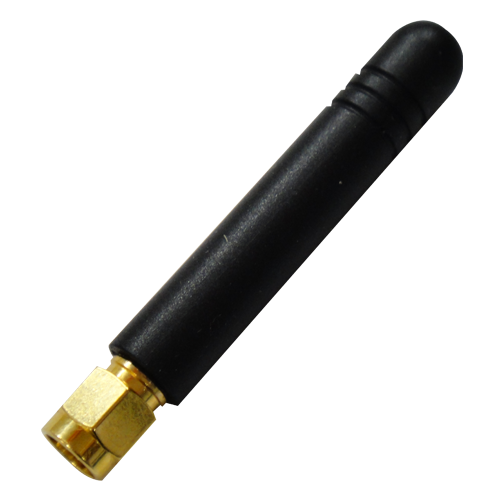

Appearance
Frequency
