TH-240D
 |
|
Product Specifications
Electrica Properties:
| Parameter | Description |
|---|---|
| Frequency Band | 2.4~2.5 & 5.0~5.9 GHz |
| Nominal Impedance | 50 ohm |
| Polarization | Vertical |
| Return Loss | Please See Data-1 |
| V.S.W.R | 2.5：1 |
| Gain | 3db |
| Note: Gain includes the cable loss | |
Mechanical Properties:
| Parameter | Description |
|---|---|
| Antenna Type | External Antenna |
| Antenna Material | Tubing plastic |
| Touch Type | Screw Type M10 x0.75 |
| Connector Type | MMCX 180°(Male) or -- |
| Antenna Dimensions | Φ16x100mm ±2 |
| Antenna Color | Black |
| Operating Temperature Range | -20°C~+60°C |
| Storage Temperature Range | -30°C~+70°C |

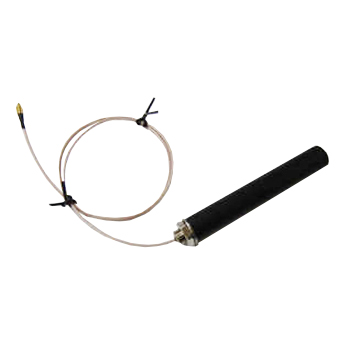

Appearance:
