TH-81 (2.4G)
 |
|
Product Specifications
Electrica Properties:
| Parameter | Description |
|---|---|
| Frequency Band | 2.4 ~2.5GHz |
| Nominal Impedance | 50 ohm |
| Polarization | Vertical |
| Return Loss | Please See Data-1 |
| V.S.W.R | 2.0:1 |
| Gain | 1db |
| Note: Gain includes the cable loss | |
Mechanical Properties:
| Parameter | Description |
|---|---|
| Antenna Type | External Antenna |
| Antenna Material | TPU |
| Touch Type | Screw Type |
| Connector Type | SMA 180˚(Male) |
| Antenna Dimensions | 60mm ±2 |
| Antenna Color | Black |
| Operating Temperature Range | -20°C~+60°C |
| Storage Temperature Range | -30°C~+70°C |

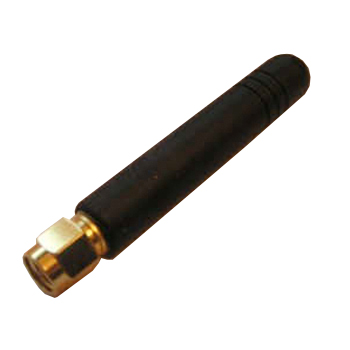

Appearance
