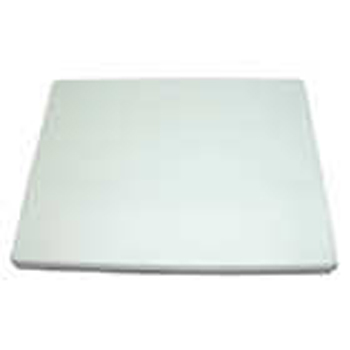

TP-518
 |
|
Product Specifications
| Frequency range: | 2.4~2.5GHz |
|---|---|
| Gain: | 18 dBi |
| V.S.W.R: | 1 : 1.5 Max |
| Impedence: | 50 OHMS ±5Ω |
| Connector: | N Type Female |
| Dimension: | 270 x 205 x 15mm |
| Weight: | 310g |
| Polarization | Linear |
| Power handling | 10W Max |
| Front to back ratio | 30dB |
| HPBW / horizontal | 10° |
| HPBW / vertical | 10° |
| Radome color | Gray-white |
| radome material | PC and ABS |
*This specification is subject to change without prior notice
H-PLANE FIELD PATTERNS
E-PLANE FIELD PATTERNS
