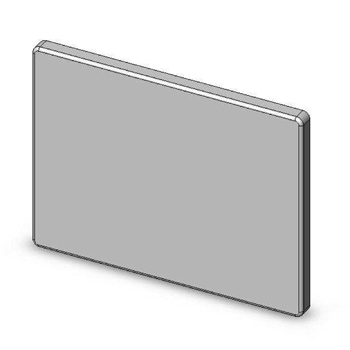

TP-2416
 |
|
Product Specifications
Electrical Specification:
| Frequency range: | 2.4~2.5GHz |
|---|---|
| Part Number | TP-2416 |
| Polarization | CP |
| V.S.W.R: | 1 : 1.5 Max |
| Impedence: | 50 OHMS ±5Ω |
| Gain: | 16 dBi |
| Power handling | 15W Max |
| Front to back ratio | 30dB |
| HPBW / horizontal | 30° |
| HPBW / vertical | 20° |
Mechanical Specification
| Connector Type | SMA or N Type Female |
|---|---|
| Length | 270*205*15mm |
| Weight | 310g |
| Radome color | Gray-white |
| Radome material | PC and ABS |
*This specification is subject to change without prior notice
H-PLANE FIELD PATTERNS
E-PLANE FIELD PATTERNS
