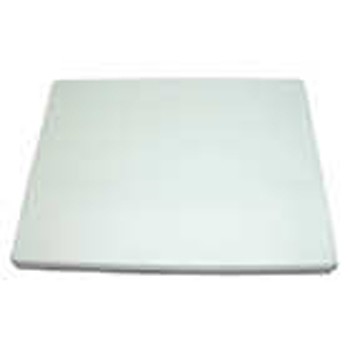

TP-241
 |
|
Product Specifications
| Frequency range: | 2.4~2.5GHz |
|---|---|
| Gain: | 21 dBi |
| V.S.W.R: | 1 : 1.3 Max |
| Impedence: | 50 OHMS ±5Ω |
| Connector: | N Type Female |
| Dimension: | 370*370*35mm |
| Weight: | 2.1Kg |
| Polarization | Linear |
| Power handling | 20W Max |
| Front to back ratio | 35dB |
| HPBW / horizontal | 20° |
| HPBW / vertical | 15° |
| Radome color | WHITE |
| radome material | PVC |
*This specification is subject to change without prior notice
H-PLANE FIELD PATTERNS
E-PLANE FIELD PATTERNS
