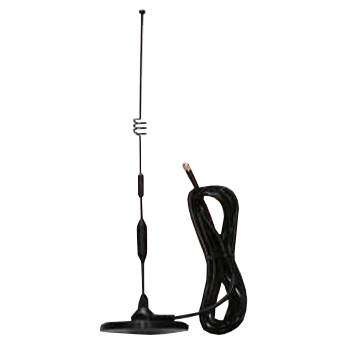

MA-90 (2.4G)
 |
|
Product Specifications
Electrica Properties:
| Parameter | Description |
| Frequency Band | 2400~2500Mhz |
| Nominal Impedance | 50 ohm |
| Polarization | Vertical |
| Electrical Wave | 1 /2λ Dipole |

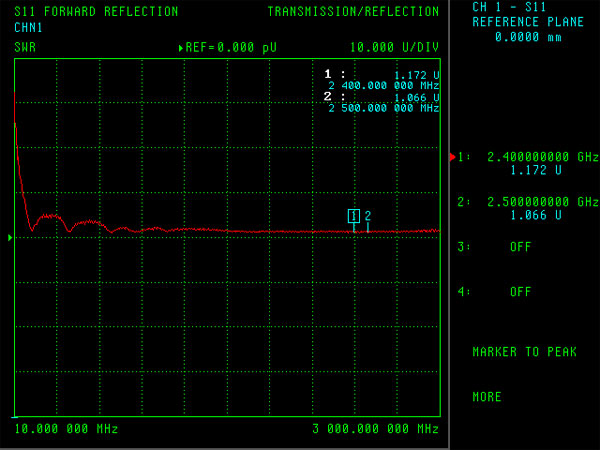

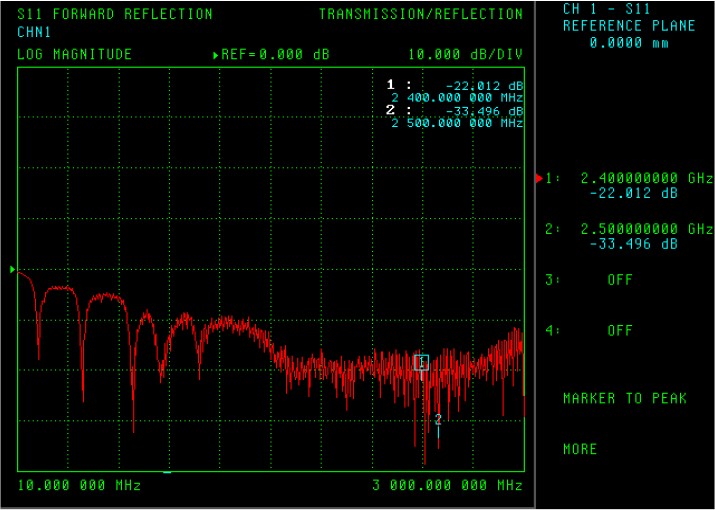

| Return Loss | Please See Data-1 |
| V.S.W.R | 2.0:1 |
| Antenna Average Gain | 9dBi |
Mechanical Properties:
| Parameter | Description |
| Antenna Type | External Antenna |
| Touch Type | Magnet Type |
| Connector Type | RPSMA |

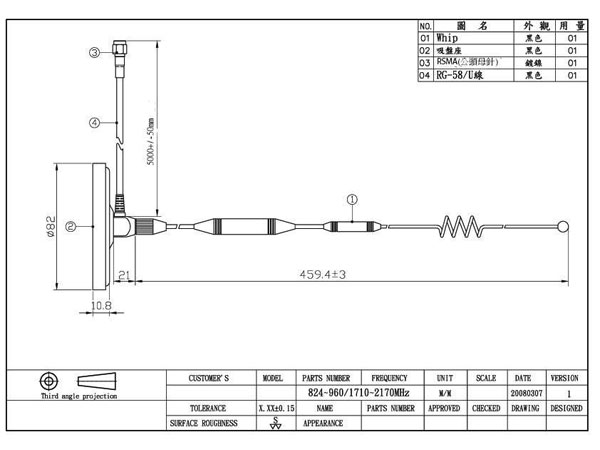

| Antenna Dimensions | 465 mm ± 3 |
| Antenna Cable Total Length | 5000 mm ± 50 |
| Antenna Color | Black |
| Operating Temperature Range | -20°C~+60°C |
| Storage Temperature Range | -30°C~+70°C |
