YGA-240
 |
|
Product Specifications
Electrical Properties
| Parameter | Description |
|---|---|
| Frequency Band | 2400-2500MHz |
| Nominal Impedance | 50 ohm |
| Polarization | Vertical |
| V.S.W.R | 2.0:1 |
| Antenna Gain | 8 dBi |
| Note: Gain includes the cable loss | |
Mechanical Properties
| Parameter | Description |
|---|---|
| Antenna Type | External Antenna |
| Touch Type | Screw Type |
| Connector Type | SMA 180° (Male) |
| Antenna Dimensions | 300 mm ±5 |
| Antenna Color | Black |
| Operating Temperature Range | -40°C~+85°C |
| Storage Temperature Range | -40°C~+85°C |

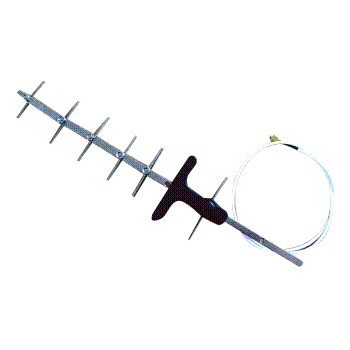

Appearance
