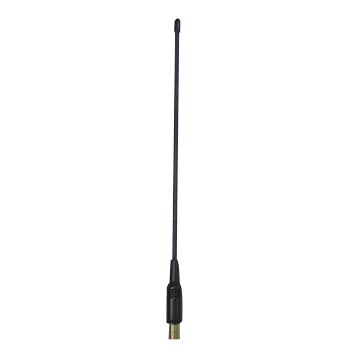

UA-500A
 |
|
Product Specifications
| Working Frequence | 485-510MHz |
|---|---|
| Electric Wave | 1/2 λ ：DIPOLE |
| Impedance | 50 Ohm , Nominal |

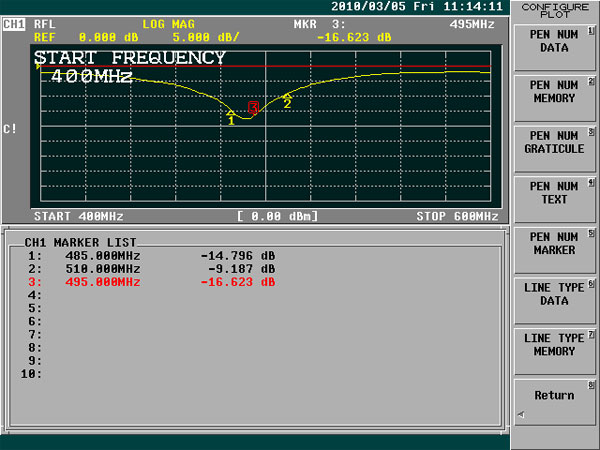

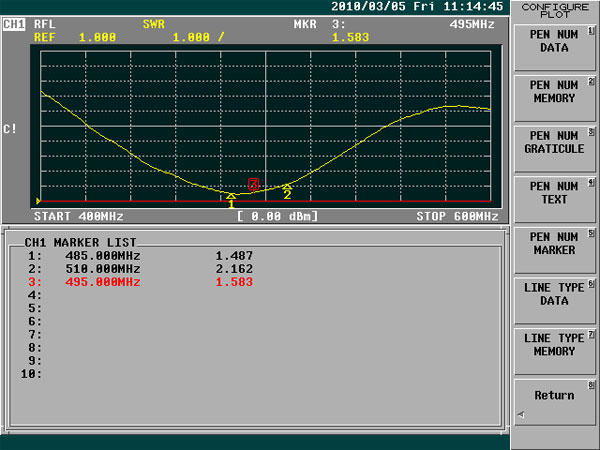

| V.S.W.R | 2.0 MAX |
| Gain | 3.0 dBi |
| Radiation | Omni |
| Polarization | VERTICAL |
| Power Handling | 10 W |
| Opearting Temperature | -20°C -- +50°C |

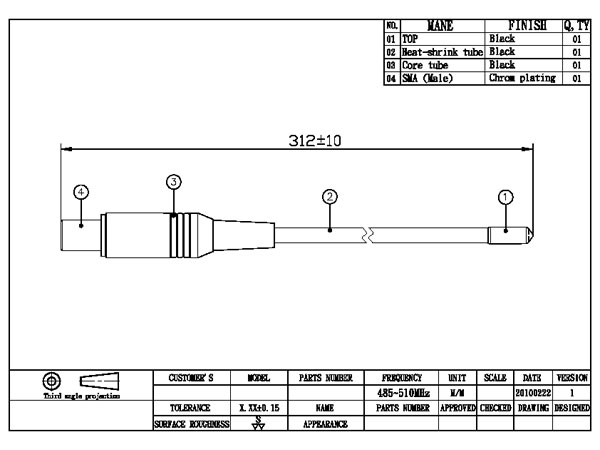

| Antenna Dimensions | 14.6 mm x 312mm |
| Connector | SMA(M) |
