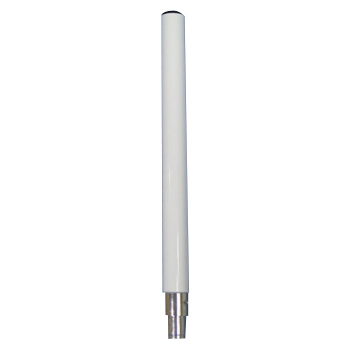

GSM-50
 |
|
Product Specifications
GSM Antenna Specifications: GSM-50
| Frequency range: | 850/900/1800/1900/2170Mhz |
|---|---|
| Gain: | 3dBi |
| V.S.W.R: | < 2.0 |
| Impedence: | 50 ohm |
| Connector: | SMA male |
| Dimension: | 164mm +/-10 x OD16.2mm |
| Weight: | 88g |
| Polarization : | vertical |
| Power handling : | 50W |
| Colour : | white |
| Rated wind velocity : | 60m/s |
| Working Temperature : | -40~60°C |
| Lightning Protection : | Direct Ground |
GND : 70 x 70 x 85 mm SUS L-Mounting FB6 TEST with 10m cable
