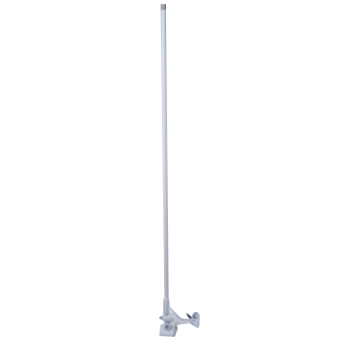

MFV-45
 |
|
Product Description
FOR AIS SYSTEM
Product Specifications
| Antenna Type | Base Station Antenna |
|---|---|
| Gain | 3 db |
| Fr | 150-170Mhz (160Mhz) |
| Max. Power | 50W |
| V.S.W.R | 160Mhz: 1.2:1 |
| Impedence | 50 ohm |
| Connector | BNC , TNC , PL259 , N with RG58 cable 5M or 10M |
| Dimension | 23.85mm(Dia.) * 1480mm (L) |
| Weight | 1280g (With 10M Cable & FB2 Base mounting) |
| Materials | Fiber |
| Color | White |
