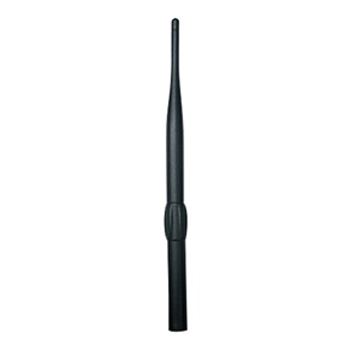

TH-88C
 |
|
Product Description
GSM800/GSM900/DCS1800/PCS1900/3G2170
Model No: TH88C-SMA(M)
Product Specifications
Electrical Properties
| Parameter | Description |
|---|---|
| Frequency Band | 800/900/1800/1900/2100 MHz |
| Nominal Impedance | 50 ohm |
| Polarization | Vertical |
| Return Loss | Please See PDF Data |
| V.S.W.R | 3:5:1 |
| Note: Gain includes the cable loss | |
Mechanical Properties
| Parameter | Description |
|---|---|
| Antenna Type | External Antenna |
| Material | TPE |
| Touch Type | Screw Type |
| Connector Type | SMA 180° (Male) |
| Antenna Dimensions | 228 mm±3 |
| Operating Temperature Range | -20°C~+60°C |
| Storage Temperature Range | -30°C~+70°C |
