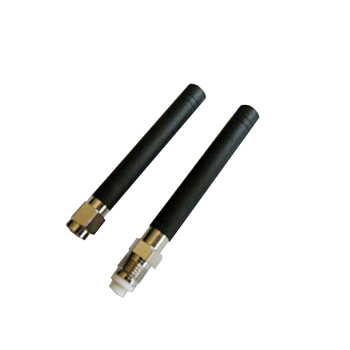

TH-81(T)
 |
|
Product Description
GSM850/GSM900/DCS1800/PCS1900
Product Specifications
General Description
| Model No | P/N |
|---|---|
| TH81(T) | TH81T-SMA(M) or TH81T-FME(F) |
Below is a table summarizing the antenna design specification.
Electrical Properties
| Parameter | Description |
|---|---|
| Frequency Band |
800/900/1800/1900MHz |
| Nominal Impedance | 50 ohm |
| Polarization | Vertical |
| Electrical Wave | 1 /4λ |
| Admitted Power radiation | 1W |
| V.S.W.R | 3.1:1 |
| Antenna Average Gain | 0 dBi |
| Note: Gain includes the cable loss | |
Mechanical Properties
| Parameter | Description |
|---|---|
| Antenna Type |
External Antenna |
| Material | PVC |
| Touch Type | Screw Type |
| Connector Type | SMA 180° (Male) |
| Antenna Dimensions | SMA : 56mm±2 ; FME: 64mm |
| Antenna Color | Black |
| Operating Temperature Range | -20°C~+60°C |
| Storage Temperature Range | -30°C~+70°C |
