TH-260C
 |
|
Product Specifications
Mechanical Properties
| Parameter | Description |
|---|---|
| Frequency Band | 824~960/1710~1990/1990~2170Mhz |
| Nominal Impedance | 50 ohm |
| Polarization | Vertical |
| Electrical Wave | Please See Data-1 |
| V.S.W.R | 2.5：1 |
| Antenna Average Gain | 0~3 dBi |
| Note: Gain includes the cable loss | |
ParameterDescription
| Parameter | Description |
|---|---|
| Antenna Type | External Antenna |
| Antenna Material | Tubing plastic |
| Touch Type | Screw Type M10 x0.75 |
| Connector Type | MMCX 180°(Male) or SMA(Male) |
| Antenna Dimensions | Φ16x90mm ±5 |
| Antenna Color | Black |
| Operating Temperature Range | -20°C~+60°C |
| Storage Temperature Range | -20°C~+70°C |

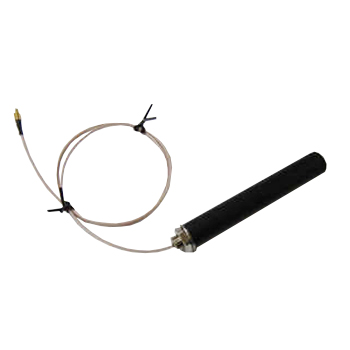

Appearance:
Frequency:
