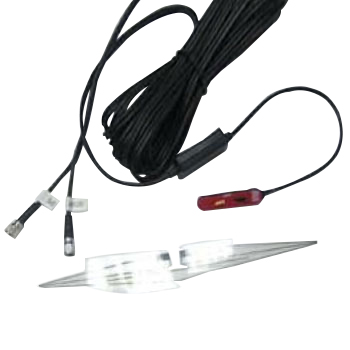

DGA-100
 |
|
Product Description
In addition to GSM Antenna, we also supply GPS/DVBT Antenna with high quality.
Product Specifications
| Frequency range | 480~860Mhz | 1575+/-2Mhz |
|---|---|---|
| Gain | 18 dBi (Max) | 20dbi (Max) |
| V.S.W.R | 2.0:1 | 2.0:1 |
| Impedence | 75 ohm | 50 ohm |
| Voltage | 2.7~5V | 2.7~5V |
| Noise Figuer | 2.0 | 1.8 |
| Cable | 5M | 5M |
| Connector | F(M) | SMA(M) |
| Dimension | 202 x 28 mm | |
This specification is subject to change without prior notice
