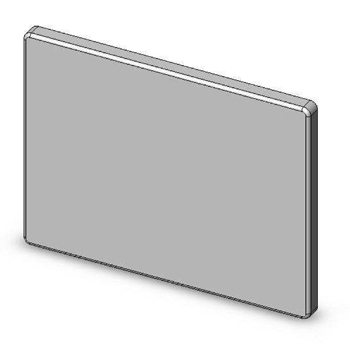

TP-2614
 |
|
Product Specifications
Electrical Specification:
| Frequency range: | 2.5~2.7GHz |
|---|---|
| Part Number | TP-2614 |
| Polarization | Linear ±90° |
| V.S.W.R: | 1 : 1.5 Max |
| Impedence: | 50 OHMS ±5Ω |
| Gain: | 14 dBi |
| Power handling | 15W Max |
| Front to back ratio | 30dB |
| HPBW / horizontal | 40° |
| HPBW / vertical | 20° |
Mechanical Specification
| Connector Type | SMA Type Female *2 |
|---|---|
| Length | 270*205*15mm |
| Weight | 320g |
| Radome color | Gray-white |
| Radome material | PC and ABS |
*This specification is subject to change without prior notice
H-PLANE FIELD PATTERNS
E-PLANE FIELD PATTERNS
