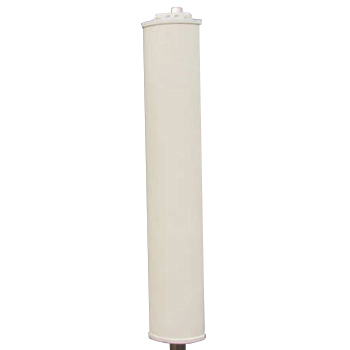

TP-2318-2
 |
|
Product Specifications
| Electrical Specifications | |
|---|---|
| Model | TP-2318-2 |
| Frequency Range–MHz | 2300-2400 |
| Gain-dBi | 18 |
| Horizontal Beamwidth | 65 |
| Vertical Beamwidth | 7 |
| Front to Back Ratio-dB | ≥ 25 |
| VSWR | ≤1.5 |
| Input Impedance -Ω | 50 |
| Polarization | ±45 |
| Isolation-dB | ≥ 28 |
| Maximum Power -W | 100 |
| Connector | N FEMALE x 2 |
| Lighting Protection | DC |
| Mechanical Specifications | |
| Antenna Dimention-mm | 970×165×65 |
| Weight-kg | 5 |
| Cover Material | PVC |
| Working Temperature-°C | -40~60 |
