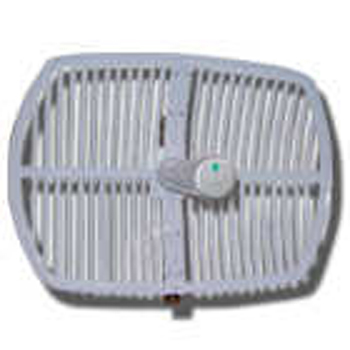

TP-242
 |
|
Product Specifications
| Frequency range: | 2.4~2.5GHz |
|---|---|
| Gain: | 21 dBi |
| V.S.W.R: | 1 : 1.5 Max |
| Impedence: | 50 OHMS ±5Ω |
| Connector: | N Type Female |
| Dimension: | L600xH435 |
| Weight: | 1.4Kg |
| Polarization | Linear |
| Power handling | 20W Max |
| Front to back ratio | 30dB |
| HPBW / horizontal | 8° |
| HPBW / vertical | 5° |
| Radome color | WHITE |
| radome material | ABS |
*This specification is subject to change without prior notice
H PLANE FIELD PATTERNS
E PLANE FIELD PATTERNS
