DVBT/ISDBT/GSM/3G/2.4G Antenna
 |
|
Product Description
Inside Glass Antenna 460-2500MHz
P/N: DAP-180-5M-F(M)
Product Specifications
Electrical Properties
| Parameter | Description |
|---|---|
| Frequency Band | 460~860 / 824~960/1710~1990/1990~2170/2400~2500MHz |
| Nominal Impedance | 50 ohm |
| Polarization | Vertical |
| Electrical Wave | 1 /2λ Dipole |
| V.S.W.R | 2.0:1 |
| Antenna Average Gain | 3.0dBi |
| Note: Gain includes the cable los | |
Mechanical Properties
| Parameter | Description |
|---|---|
| Antenna Material | ABS |
| Connector Type | F (M) or IEC(M) or SMA(M) or MCX(M) ----- |
| Antenna Dimensions | 115 mm ± 5 |
| Antenna Cable Total Length | 5000mm ± 20 |
| Antenna Color | Black |
| Operating Temperature Range | -20°C~+60°C |
| Storage Temperature Range | -30°C~+70°C |

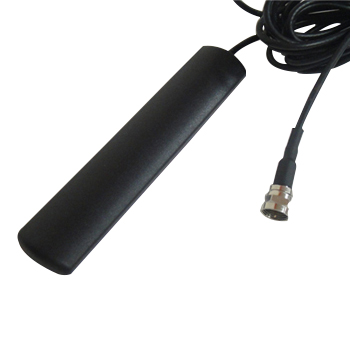

Appearance
